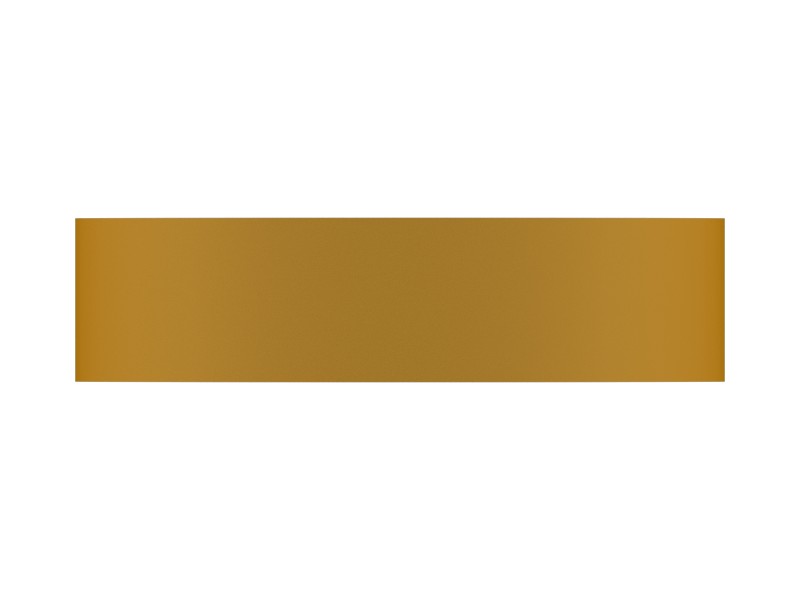

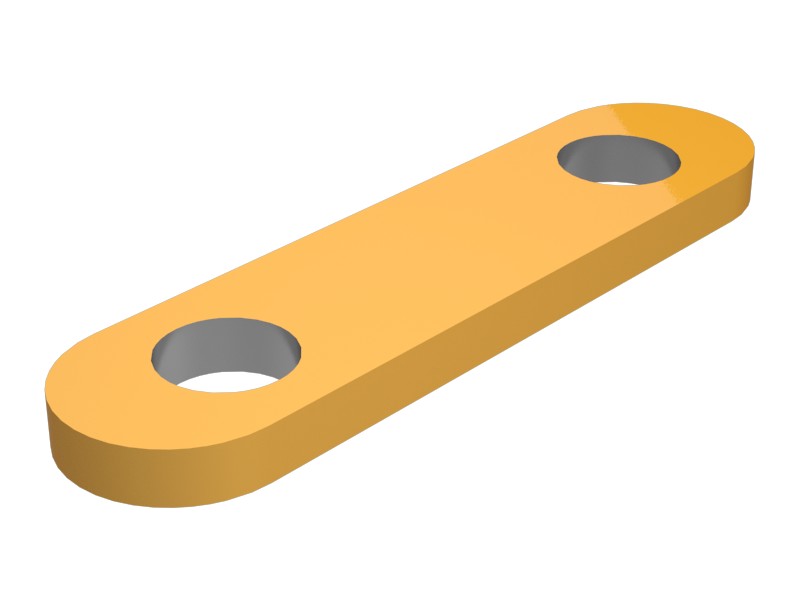

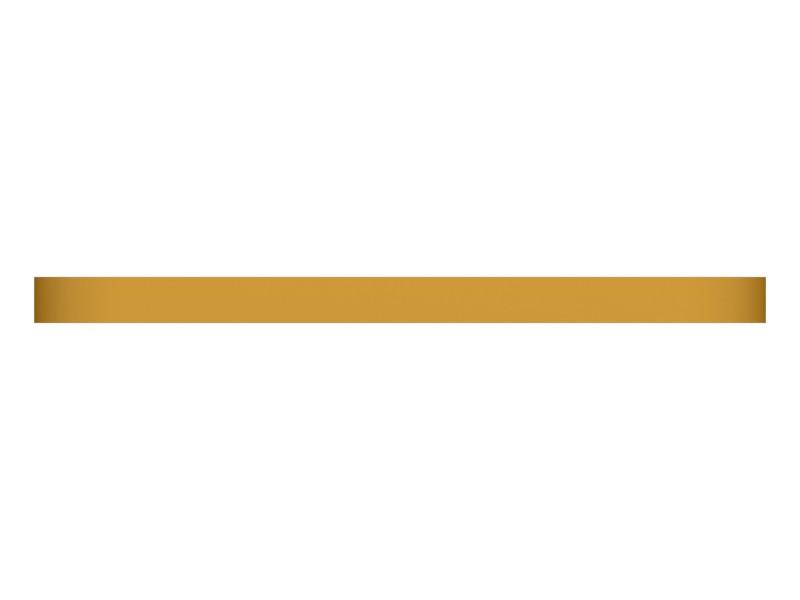

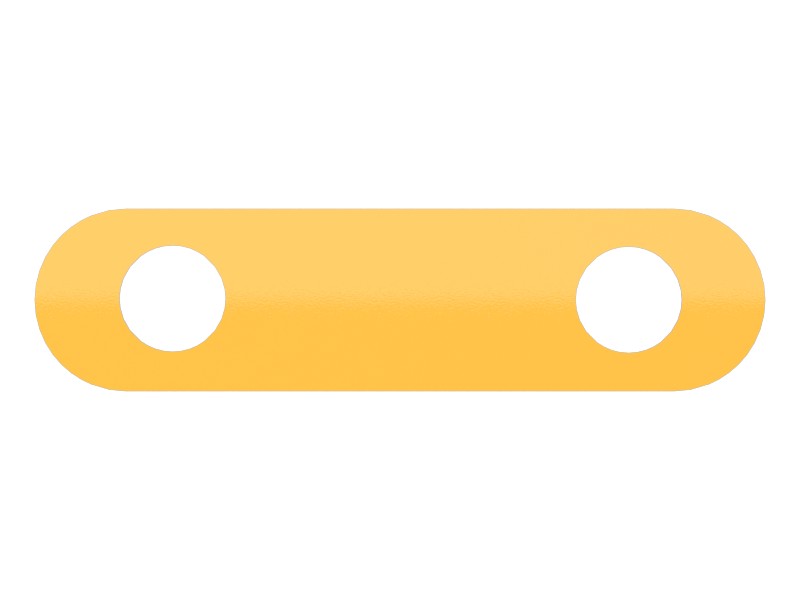

7N-0452 4.78 mm Thick Two-Bolt Mounting Base
Cat® 4.78 mm Thick Two-Bolt Mount Base for Cylinder Block
Description
The base is used to mount the cylinder head to the cylinder block.
Features
- Material: Steel
- Hole Center Distance: 47.62 mm (1.87 in)
- Use with 0.375 inch fasteners
Applications
Used as needed in various systems, such as front housing fasteners, mufflers, and air filter systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Width | 19 mm (0.75 in) |
|---|---|
| Material Description | Steel |
| Thickness | 4.8 mm (0.18 in) |
| Overall Length | 76.2 mm (3 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 824C, 826K, 826H, 824G, 834H, 826G
- Cold Planers: PM622, PM620, PL83, PL87, PM-200
- Compactors: 824K, 825K, 834K, C-15
- Engines: C15, C18
- Excavators: 374D L, 3456, 390D L, 390F L, 374F, 374, 657G, 637G, 637K, 637E, 3508B, 3101, 365C L, 385B, 385C L, 385C, 374F L, 390F, 365C, 385C FS, 621G, 6015, 6015 FS, 390D, 6018, 395
- Asphalt Pavers: AD30, AD45
- Wheel Excavators: MD6200
- Dozers: D8, D8T, D8R, D9T, D8N, D9
- Wheel Loaders: 980H, 980G, 988K, 988G, R2900 XE, 836, 834, 988H, RM500B, R3000H, R2900G, 986H
- Off-Highway Trucks: 770G, 740, 740 GC, 735, 740B, 772G, 745, 745C
Additional information
| Machine Model | 3101, 3456, 3508B, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6018, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 980H, 986H, 988G, 988H, 988K, AD30, AD45, C-15, C15, C18, C9, D8, D8N, D8R, D8T, D9, D9T, MD6200, PL83, PL87, PM-200, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
