Description

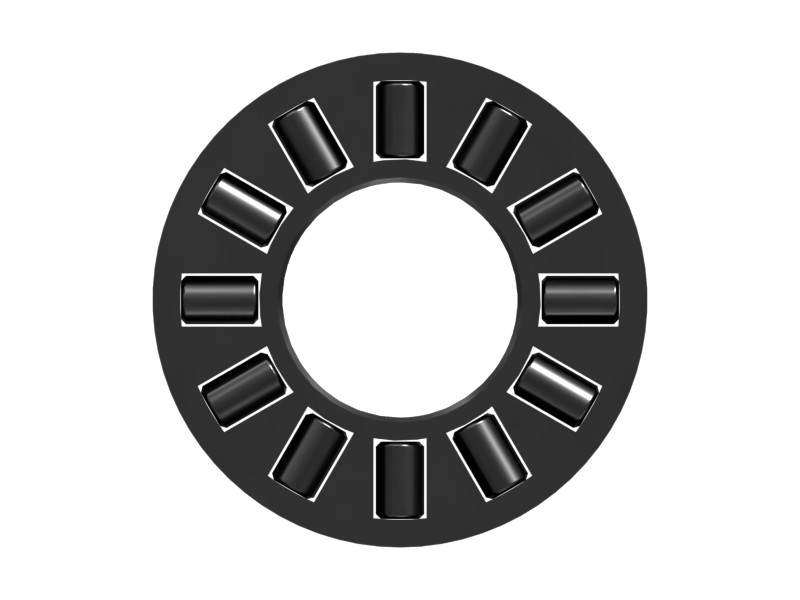

The Cat thrust needle roller and cage assembly can withstand heavy axial loads and operate smoothly at high speeds. Thrust needle roller and cage assemblies are compact and high performing.
Features
- Withstands high axial loads.
- Supports high rotational speeds.
- Requires minimal installation space.
- Needle rollers are quenched and tempered to ensure the longest bearing life.
- Easy to install.
Applications
Needle thrust roller and cage assemblies are designed to support high axial loads and high-speed operation. A typical application for needle thrust roller and cage assemblies is the transmission, where they provide low friction in limited space.
Specifications
| Height | 1.94 mm (0.08 in) |
|---|---|
| Inside Diameter | 9.58 mm (0.38 in) |
| Outside Diameter | 20.37 mm (0.8 in) |
| Material | Alloy Steel |
Compatible Equipment
- Generator Sets: 3406C, 3406B, 3512B, G3516, C7.1
- Motor Graders: 14, 140H, 14M, 120, 16, 140G, 12H, 16H, 16M, 120H, 160K, 3606, 12K, 140K
- Track Loaders: 992, 816F, 953, 963, 826G, 824C, 824G
- Cold Planers: PL87, PL83
- Wheel Excavators: IT14G
- Compactors: 816, 814, 815
- Dozers: D6R, D6M, D10R, D5M, D11R, D8T, D10T, D5H, D7R, D4E, D7H, D6T LGP, D8R, D6N, D6T, D7G, D5G, D7R II, D9T, D6R II, D6G, D6R III, D9R, D8L, D9L, D9N, D5N, D4G, D6R XL, D6G2 LGP, D7G2, D3G, D11N, D10N, D10, D11T, D8N, D6G2 XL, D6R LGP
- Excavators: 330 L, 330B, 3516B, 350 L, 637E, 637G
- Wheel Loaders: 924GZ, 980, 950, 980G, 834, 910, 966F, 972G, 988F, 992D, 992C, 836, 928G, 928HZ, R1300G, 924HZ
- Off-Highway Trucks: 777, 773, 789, 785
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16H, 16M, 330 L, 330B, 3406B, 3406C, 350 L, 3512B, 3516B, 3606, 637E, 637G, 773, 777, 785, 789, 814, 815, 816, 816F, 824C, 824G, 826G, 834, 836, 910, 924GZ, 924HZ, 928G, 928HZ, 950, 953, 963, 966F, 972G, 980, 980G, 988F, 992, 992C, 992D, C7.1, D10, D10N, D10R, D10T, D11N, D11R, D11T, D3G, D4E, D4G, D5G, D5H, D5M, D5N, D6G, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7G, D7G2, D7H, D7R, D7R II, D8L, D8N, D8R, D8T, D9L, D9N, D9R, D9T, G3516, IT14G, PL83, PL87, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
