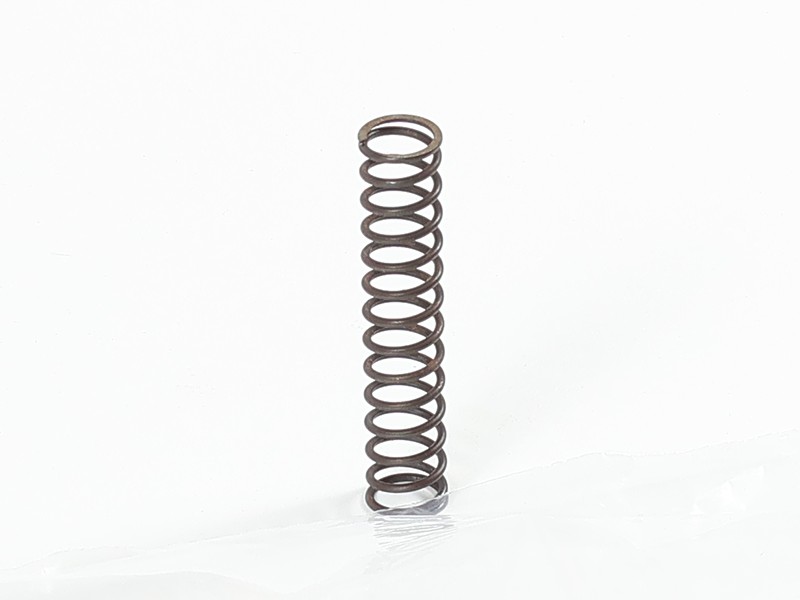

Description
The compression spring has a helical design. When a load is applied to a compression spring, it compresses and stores energy. The energy stored in the spring is proportional to the amount of compression. When the load is removed, the spring expands and releases the stored energy, returning to its original length.
Attributes
Total coils: 15, active coils: 13, helps maintain shape and stability
Has a right-hand helical coil, with a total of 15 coils and 13 active coils
Applications
The compression spring is used to provide support and maintain proper alignment between parts, and is used primarily on Cat® 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, 229D, 231D, 235, 235B, 235C, 235D, 245, 245B, 245D, 6015 and 6015B Excavators, 227 Feller Bunchers, 3208, D346, D348, D349, D353C, D353D, D353E, D379A, D379B, D398A, D398A, D398B, D399, G348, G349, G379A, G398A and G399 Engines (Piston), 518C Skidders, 931B, 931C, 935B, 935C and 973 Track-Type Loaders, 988B, 988G, 988H, 988K, 991K, 992, 992B, 992C, 992D, 992K and 994K Wheel Loaders, 9C and 9U Dozers, D10, D3B, D3C, D4B, D4C, D5C, D9G and D9H Track-Type Dozers, D379B, D398B and D399 Generator Sets.
Specifications
| Material | Alloy Steel |
|---|---|
| Length | 58.92 mm (2.32 in) |
| Outside Diameter | 11.68 mm (0.46 in) |
| Spring Type | Compression Spring |
| Wire Size | 1.29 mm (0.05 in) |
Compatible Equipment
- Track Loaders: 992
- Excavators: 6015B, 6015
- Wheel Loaders: 992K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
