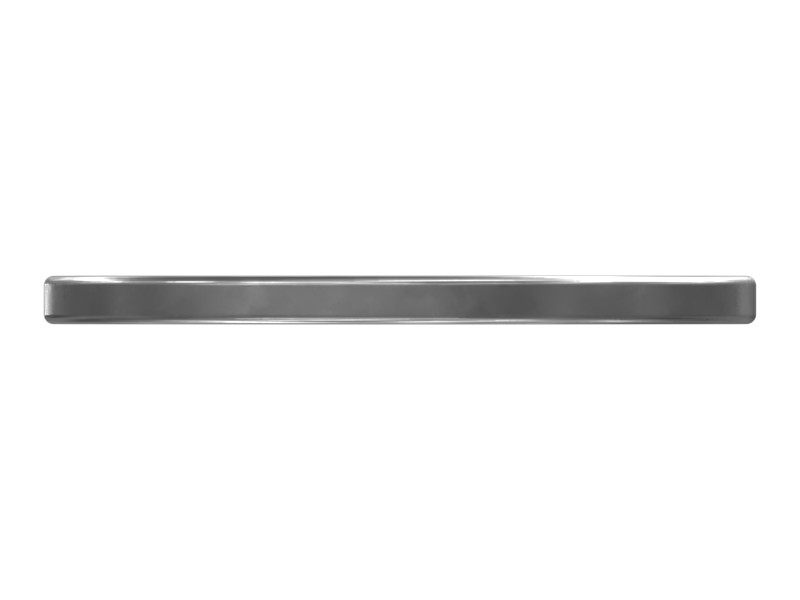

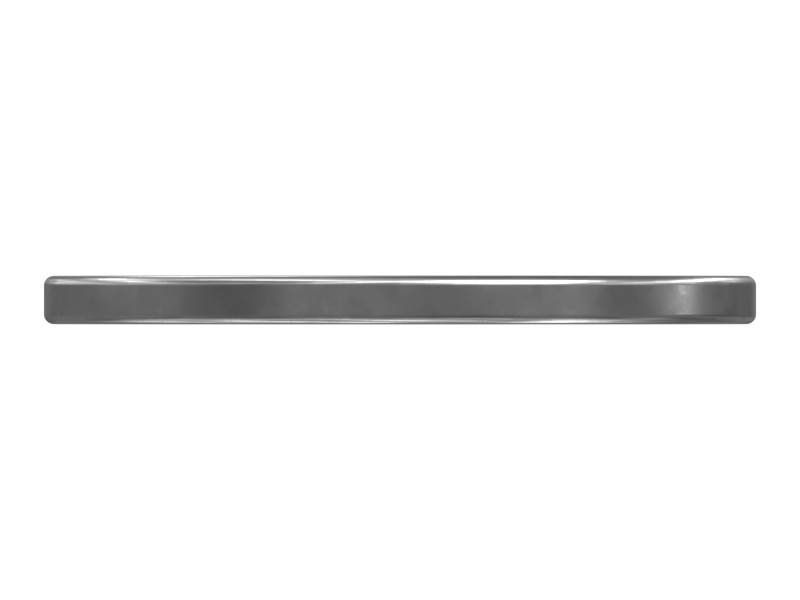

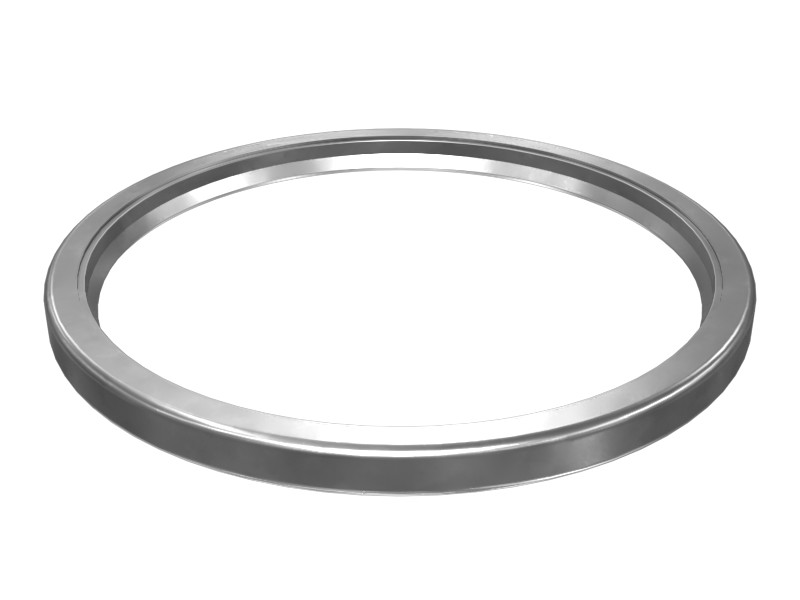

7K-9216 101.6 mm ID Pin Seal
Cat® bucket control pin seal is a mechanism that uses pin seals to manage the operation and positioning of a bucket or similar attachment.
Description
The pin seal is used for lubricated oscillating applications, such as link pin joints. This seal is designed to slowly extrude grease during operation, preventing external contaminants from entering the joint. Keeping contaminants out extends joint life.
Features
- Material: Polyurethane Rubber (Seal)
- Lip seal with steel case
- Type: NB
- For use with pins 101.6 mm (4 in) in diameter
- Fits holes with a diameter of 117.4 mm (4.62 in)
- ROHS compliant
Applications
Pin seals are commonly used in link pin joints. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Polyurethane Rubber (Seal) |
| Hole Diameter | 117.4 mm (4.622 in) |
| Pin Diameter | 101.6 mm (4.000 in) |
| Width | 7.92 mm (0.311 in) |
Compatible Equipment
- Track Loaders: 992, 953, 973K, 953D, 953K
- Wheel Loaders: 986K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
