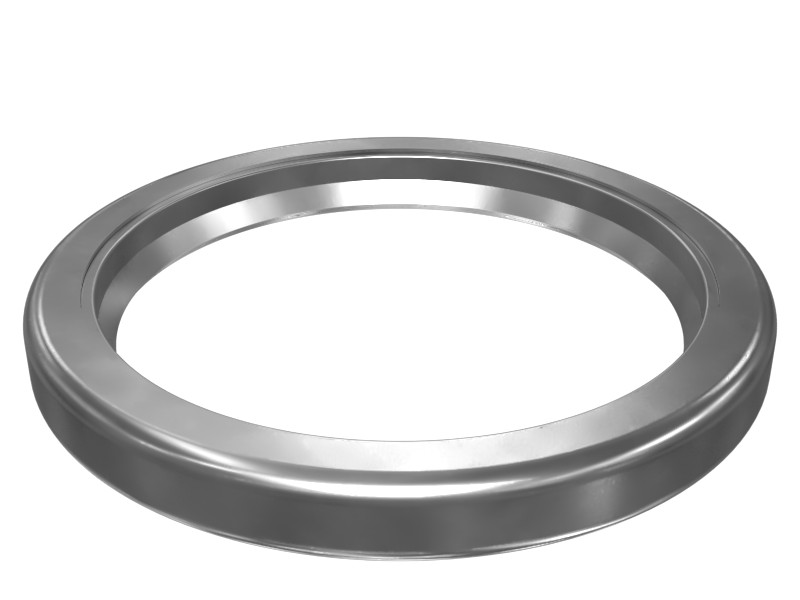

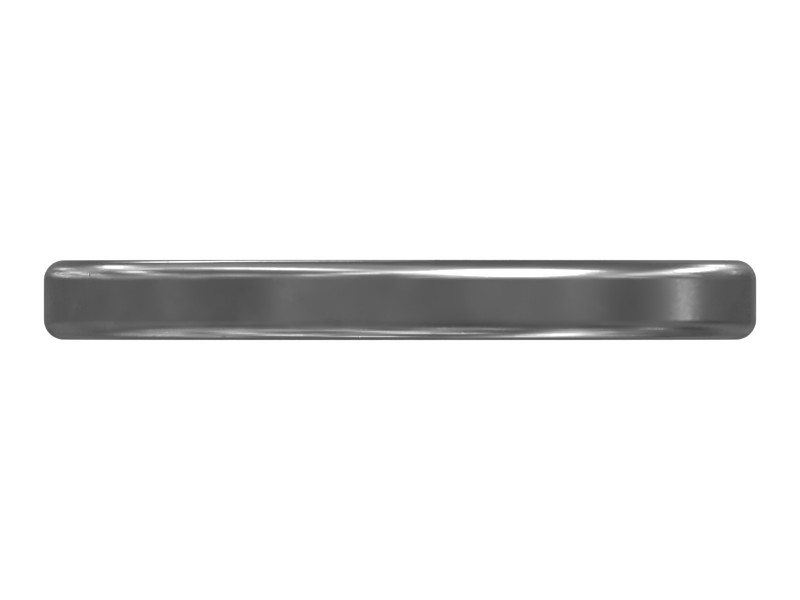

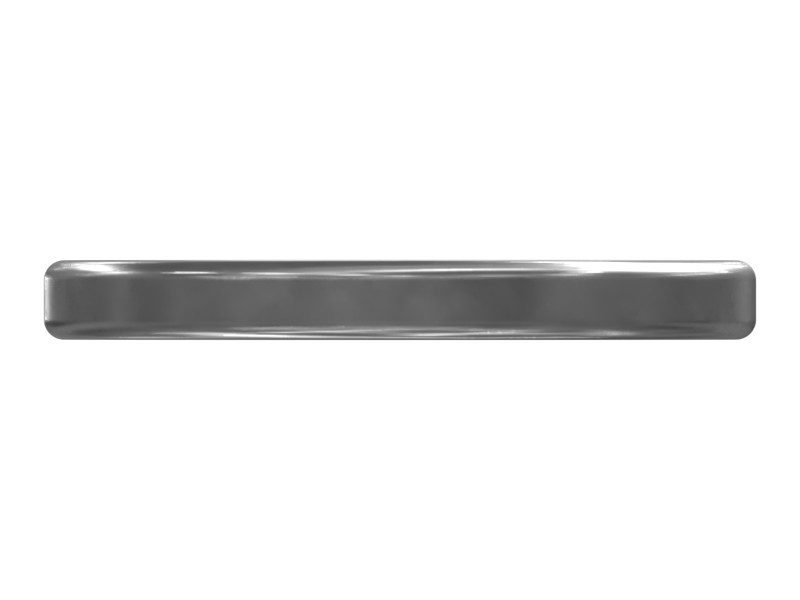

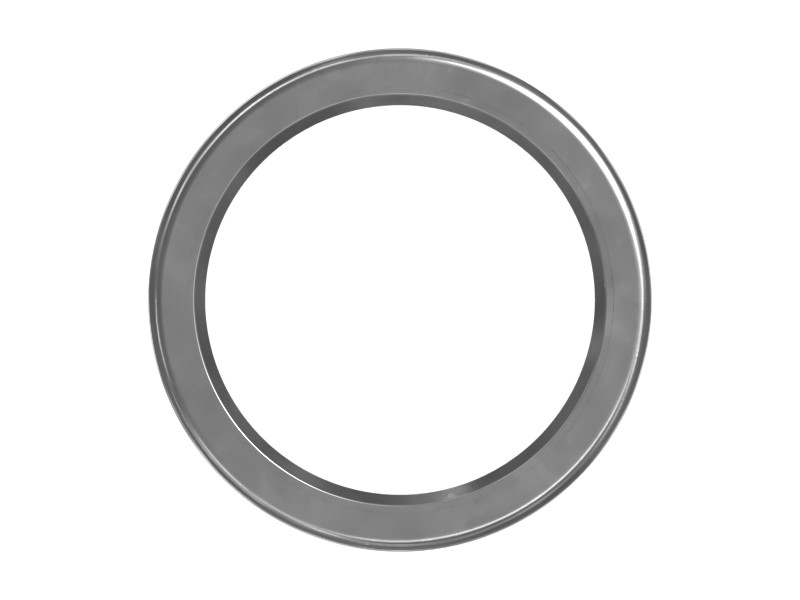

7K-9202 44.45 mm ID Pin Seal
Cat® bucket control pin seal is a mechanism that uses pin seals to manage the operation and positioning of a bucket or similar attachment.
Description
The pin seal is used for lubricated oscillating applications, such as link pin joints. This seal is designed to slowly extrude grease during operation, preventing external contaminants from entering the joint. Keeping contaminants out extends joint life.
Features
- Material: Polyurethane Rubber (Seal)
- Lip seal with steel case
- Type: NB
- For use with pins 44.45 mm (1.75 in) in diameter
- Fits holes with a diameter of 57.15 mm (2.25 in)
- ROHS compliant
Applications
Pin seals are commonly used in link pin joints. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyurethane Adhesive |
|---|---|
| Material Description | Polyurethane Rubber (Seal) |
| Hole Diameter | 57.15 mm (2.250 in) |
| Pin Diameter | 44.45 mm (1.750 in) |
| Width | 6.35 mm (0.250 in) |
Compatible Equipment
- Motor Graders: 120, 140K, 140G, 14M, 12H, 120H, 140H, 14, 160K, 12K, 140 GC
- Track Loaders: 963, 963K, 953, 963D, 953K, 953D
- Excavators: 120 GC
- Wheel Loaders: 950, 910, 938K, 924K, 926M, 938M
