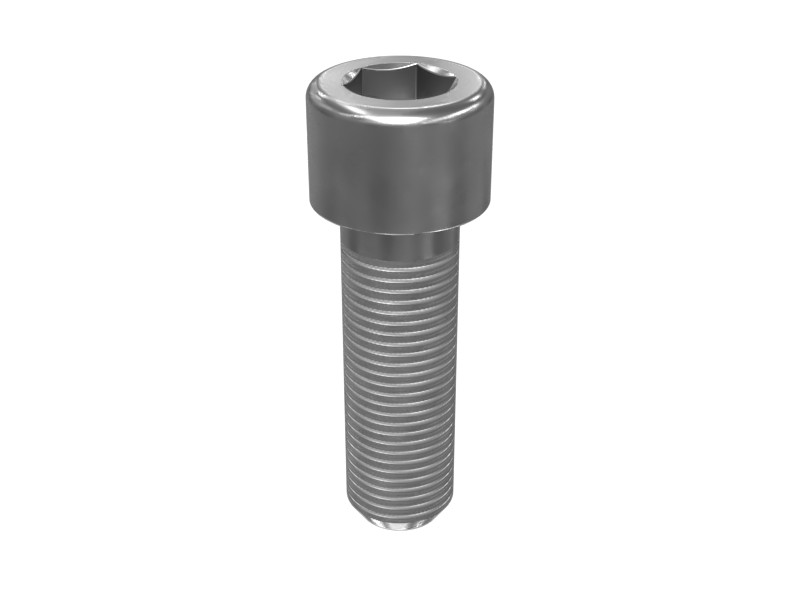

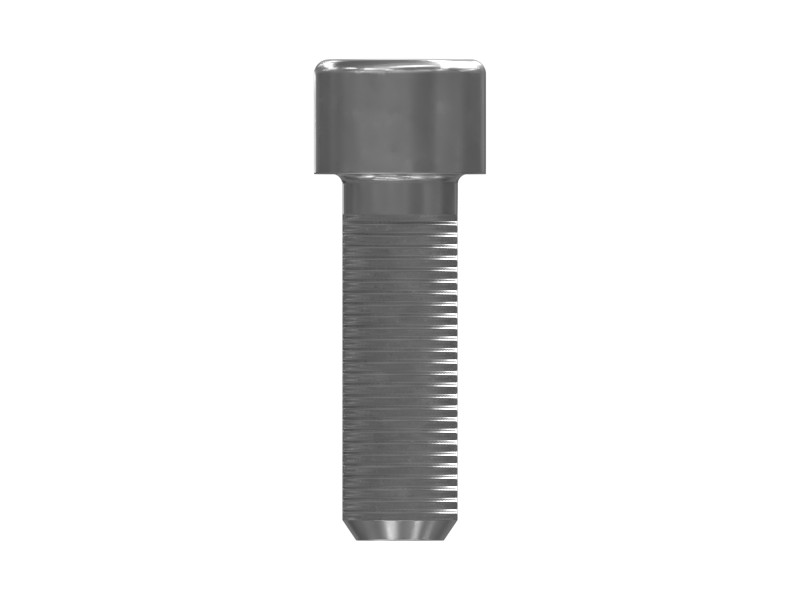

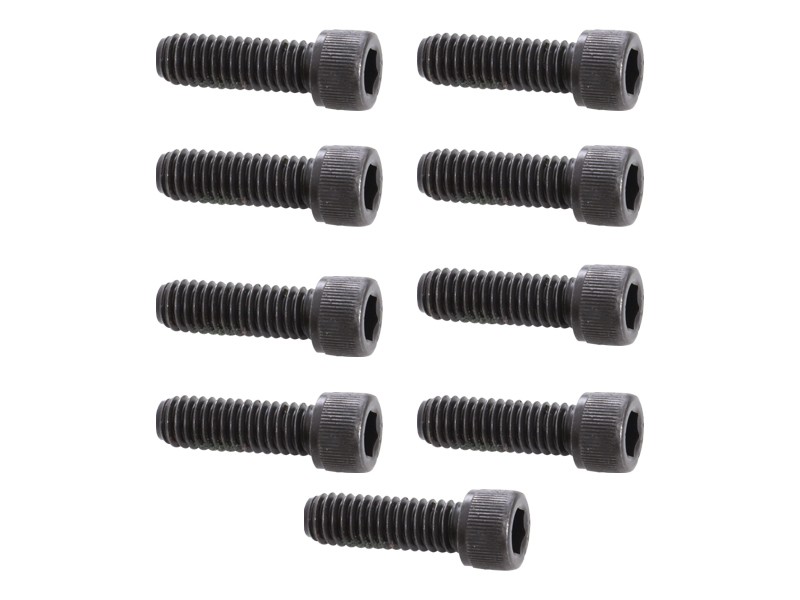

7J-9016 5/16-18 Thread Socket Head Bolt
Cat® 5/16-18 Thread 25.4 mm Long Socket Head Self-Locking Bolt
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Type | Socket Head |
|---|---|
| Thread Size | 0.3125 mm (0.012 in) |
| Thread Direction | RH |
| Bolt Length | 25.4 mm (1 in) |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Handle Length | 2.82 mm (0.11 in) |
| Class or Grade | ASTM A574 (180 ksi) |
| Material | Steel |
| Coating | Zinc Flake |
| Locking Feature | Nylon Sheet |
Compatible Equipment
- Generator Sets: 3406B, 3406C
- Motor Graders: 140G, 16
- Track Loaders: 963, 953
- Dozers: D8R, D8, D8T
- Excavators: 3516E
- Wheel Loaders: R2900 XE, 988F
- Off-Highway Trucks: 793D, 785, 775G, 770G, 772G, 777, 773E, 789D, 785D, 773, 789
Additional information
| Machine Model | 140G, 16, 3406B, 3406C, 3516E, 770G, 772G, 773, 773E, 775G, 777, 785, 785D, 789, 789D, 793D, 953, 963, 988F, D8, D8R, D8T, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
