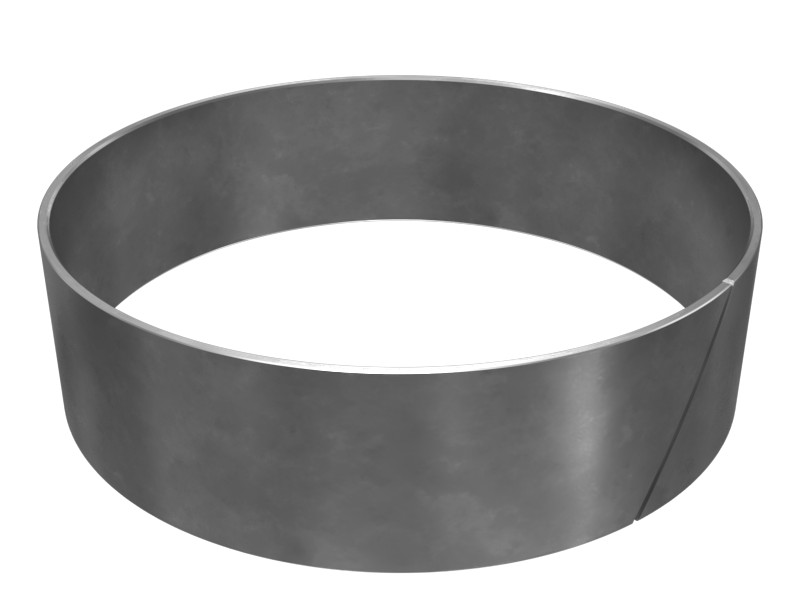

7J-8064 215.9 mm Bore Piston Wear Ring
Cat® Nylon Piston Wear Ring, Inside Diameter: 210 mm
Description
Piston wear rings (for example, 7J-8064) support the piston and keep it centered to prevent contact between the piston and the cylinder wall
Metal-to-metal contact.
Features
- Seal Type: Piston Wear Ring
- Bore Diameter: 216 mm (8.50 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information
Specifications
| Width – A (+/- 0.03 in) | 2.37 in |
|---|---|
| Width – A (+/- 0.762 mm) | 60.30 mm |
| Inside Diameter – B (+/- 0.08 in) | 209.32 mm (8.24 in) |
| Seal Type | Piston Wear Ring |
| Material | Nylon |
| Inside Diameter | 210 mm (8.25 in) |
| Outside Diameter | 216 mm (8.5 in) |
| Width | 60 mm (2.36 in) |
Compatible Equipment
- Track Loaders: 992
- Wheel Loaders: 950G, 962G, 988F, R1700 II, R1700G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
