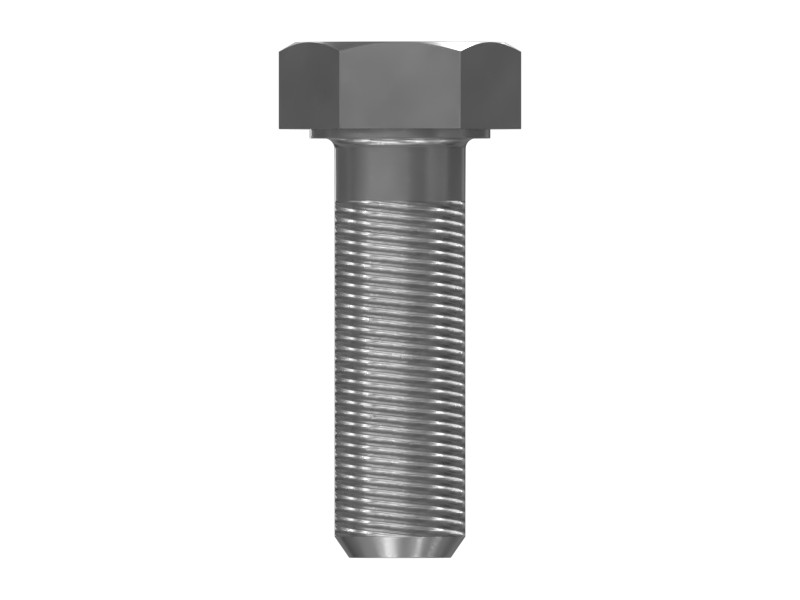

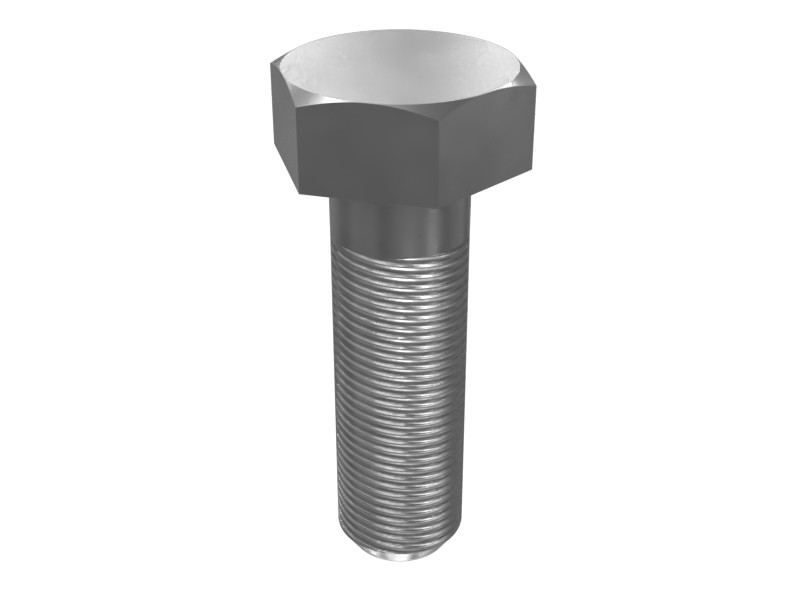

7I-2273 M5 Hex Head Bolt
Cat® M5 Steel Hex Head Bolt
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Pitch | 0.8 mm |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |

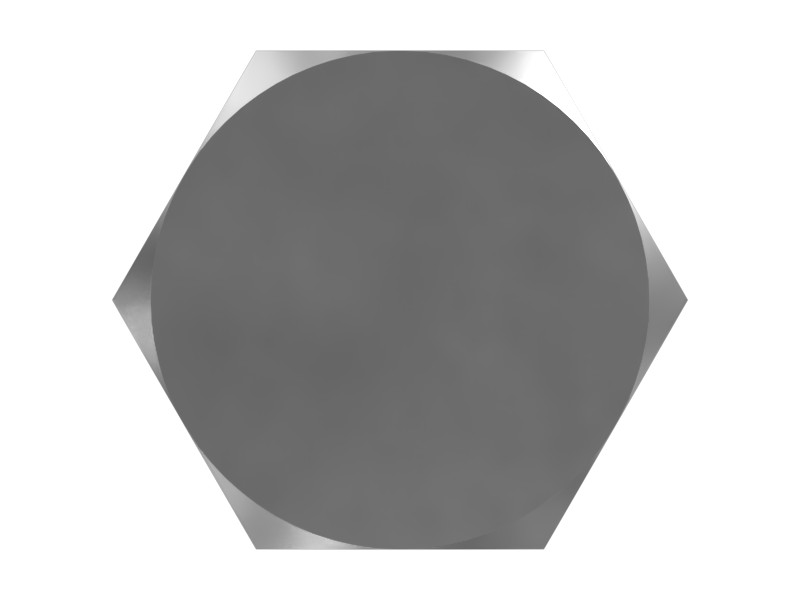

| Hex Size | 8 mm |
| Thread Size | M5 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Bolt Length | 16 mm (0.63 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 2 mm (0.09 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Generator Sets: C7.1, C4.4, C9, G3516, G3516C, 3512B, 3516C, 3406C
- Track Loaders: 963, 973K, 953K, 816F, 963K, 963D, 953, 953D
- Cold Planers: PM620, PL61, PM622, TH417D, TH255C
- Compactors: CS56B, CB-44B, CB-14, CP56B, CS68B, CW-16, CS74B, CS78B, CS54B, CP54B, CS79B, CS11, CW-34, CS12, CB16, CB10, CB13, CB15, CS-54B, CS-533E, CS64B
- Engines: C15, C6.6, C27, C32, C18, C175-16
- Excavators: 390D L, 374D L, 305C CR, 3512C, 365C L, 385C L, 120 GC, 320D3 GC, 3516E, 312 GC, 657G, 637K, 3516B, 6020B, 385C, 621H, 301.8, 385C FS, 390D, 621K, 345B, 365C, 3508B, 301.6, 395, 6060, 302.7CR, 325B L, 330C L, 325C, 330B, 311B, 320C, 320B, 320D3, 325C L, 325B, 312 GX, 303CR, 303.5CR, 320, 637G, 3101
- Asphalt Pavers: AP300F, AP-600D, AP655F L, AP655F, AP355F
- Skid Steer Loaders: 272D3, 272D3 XE, 299D3 XE, 24
- Motor Graders: 140 GC
- Wheel Excavators: MD6250, MD6200, MD6310
- Dozers: D11T, D6T LGP, D6T, D9T, D6K2, D5K2 XL, D8T, D5K LGP, D10T2, D11, D10R, D7R II, D4, D3K2 LGP, D8, D8R, D5K XL, D1, D9, D10
- Compact Track Loaders: 299D3
- Mini Excavators: 302CR, 301.5, 301.7CR, 307B
- Wheel Loaders: 966K, 924K, 938K, 938M, 926M, 950 GC, 836, 962L, 950L
- Off-Highway Trucks: 770G, 796 AC, 7495, 798 AC, 772G, 745, 740B, 730, 777E, 789D, 777D, 775G, 793D, 740, 745C, 773E, 793F, 773F, 794 AC, 789, 773, 777, 793, 725C2, 785D, 740 GC, 735, 785, 725
