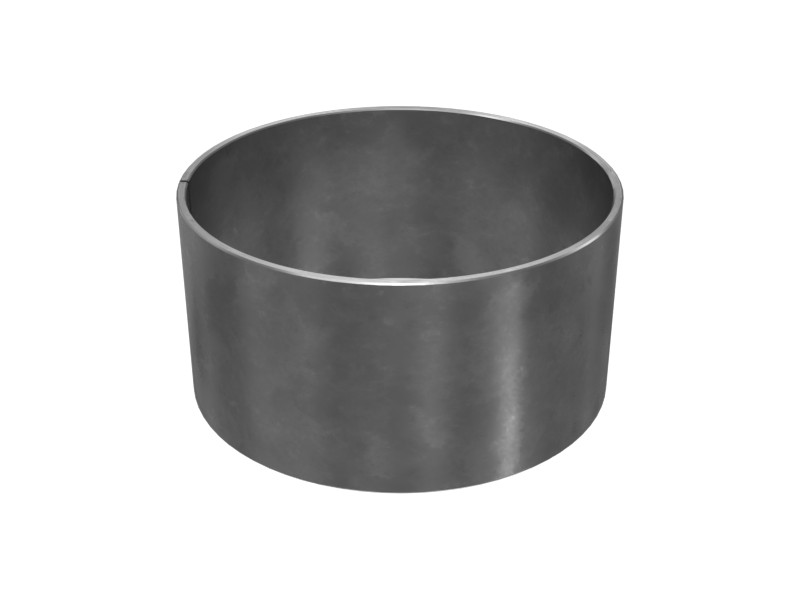

7G-9709 192.4 mm OD Sleeve Bearing
Cat® 192.4 mm OD 96 mm Long Track Roller Frame Sleeve Bearing
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Unique Features | No |
|---|---|
| Ferrule Outside Diameter | 192.4 mm (7.575 in) |
| Ferrule Inside Diameter | 184.4 mm (7.26 in) |
| Inside Diameter | 184 mm (7.26 in) |
| Outside Diameter | 192 mm (7.57 in) |
| Overall Length | 96 mm (3.78 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Dozers: D10T2, D10N, D10T, D10R, D9R, D9N, D9T, D8L, D9L, D9, D10
