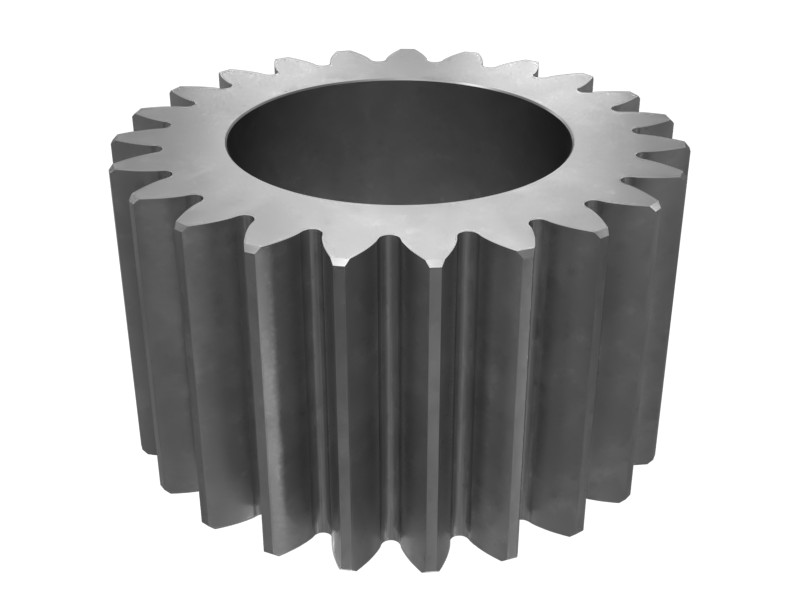

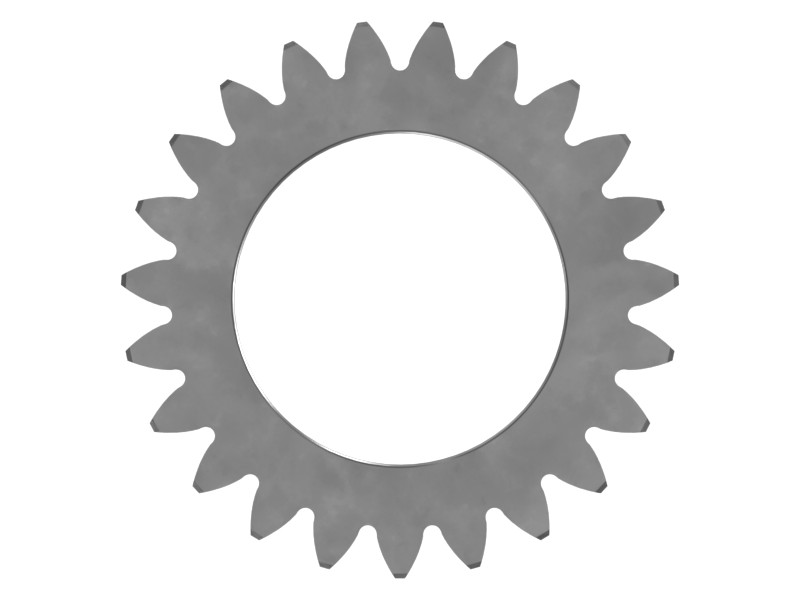

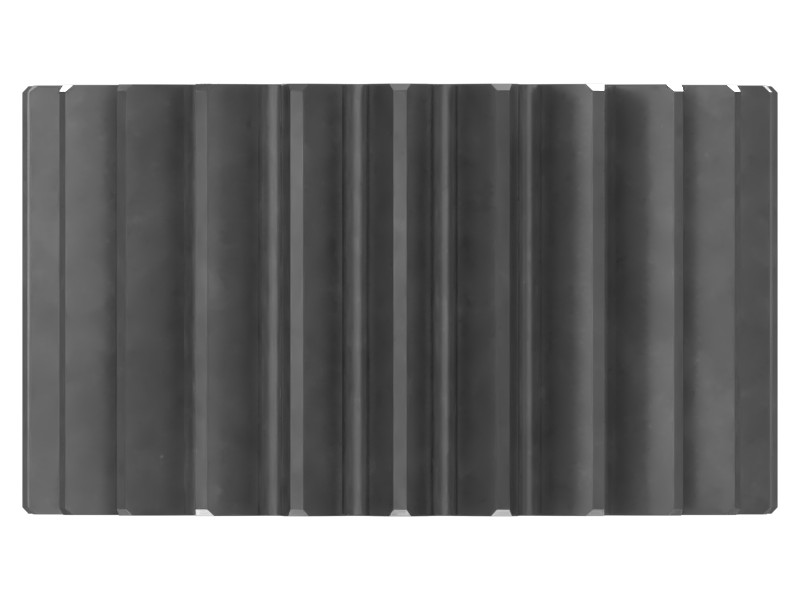

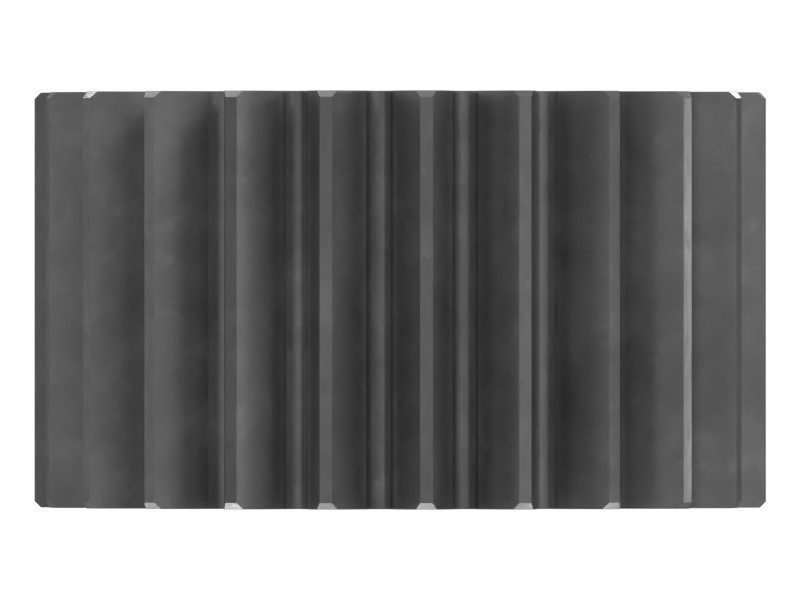

7G-3462 Transmission Planetary Gear with 23 External Teeth
Cat® Planetary Gear (Transmission)
Description
Gear used in the transmission planetary gear set.
Features
- Material: Steel
- Spur Gear Teeth: 23
- Cat gears are manufactured from carefully selected high-quality materials in strict accordance with specifications matched to the loads used in Cat machines. They are made using special heat treatment processes (in some cases proprietary), including case carburizing, nitriding, and induction hardening. Cat gears have the highest power density in the industry (the power a gear can transmit relative to its size) and are designed with reuse in mind. As a result, they are more durable and can lower the overall operating cost of the machine.
Applications
Cat gears are built for specific applications to ensure that all power train parts work together as a system and wear together. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Outside Diameter | 95.25 mm (3.75 in) |
| Inside Diameter | 57.127 mm (2.249 in) |
| Width | 53.82 mm (2.118 in) |
Compatible Equipment
- Dozers: D10R
- Off-Highway Trucks: 773, 773E, 773F, 773D, 775G
- Asphalt Pavers: AD63
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
