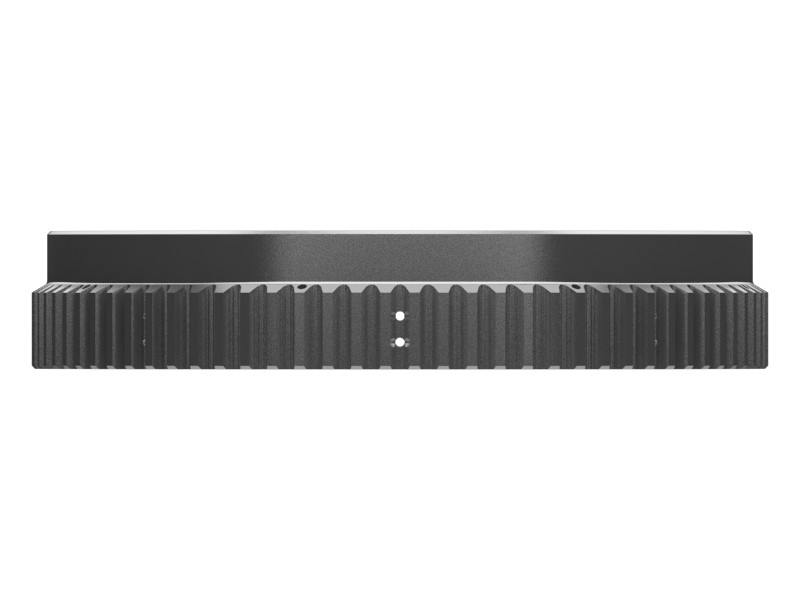

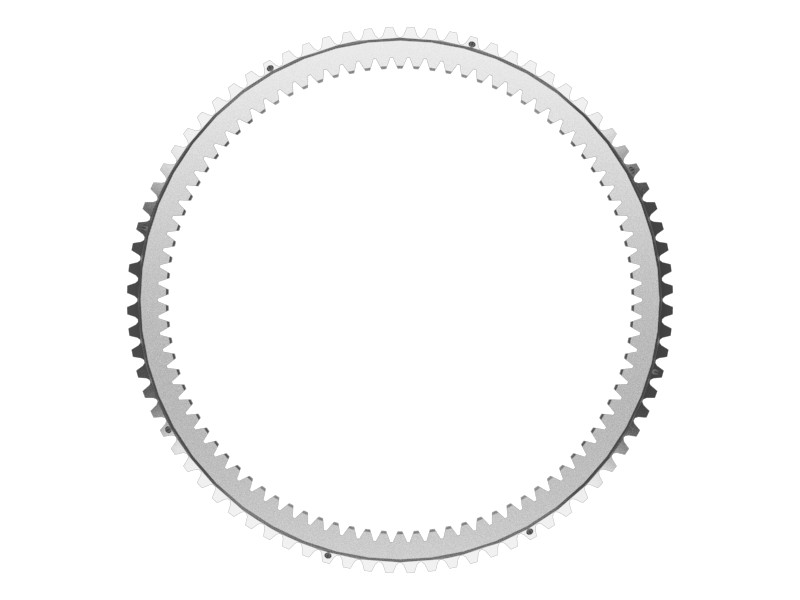

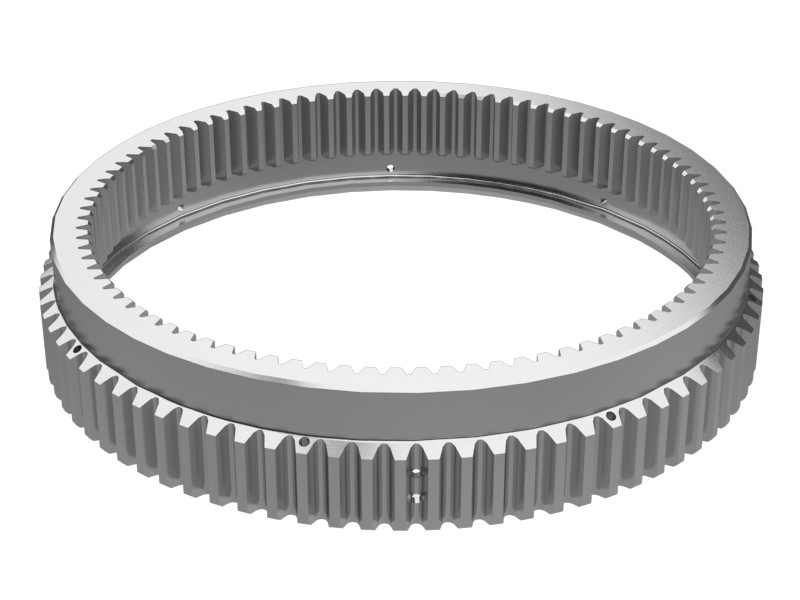

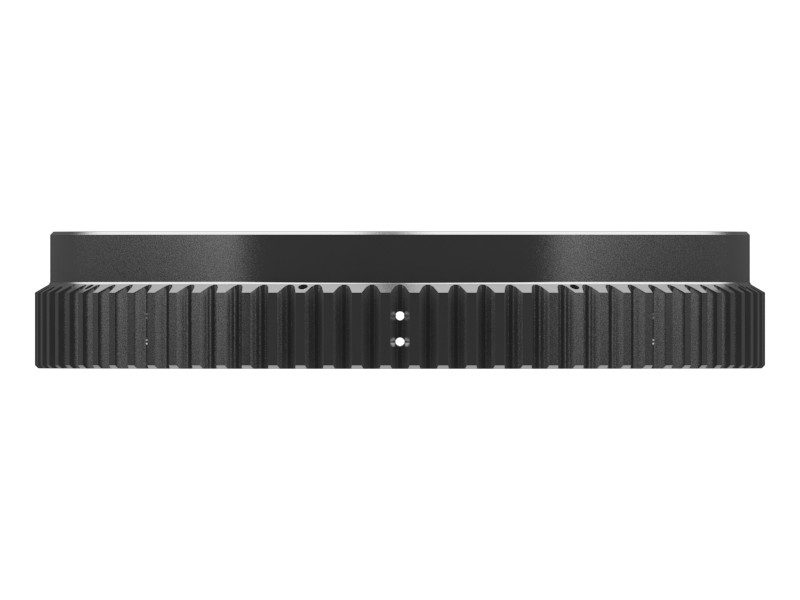

7G-0283 90-Tooth Ring Gear
Cat® planetary transmission ring gears are an indispensable component of automatic transmissions. The ring gear works with other gears to provide speed changes and torque distribution.
Description
The spur gear is the most common type of gear and consists of a cylinder or disc with teeth projecting straight outward. In addition, the two sides of a spur gear are usually identical, because the teeth extend straight from one side to the other.
Features
- Material: Steel
- Hardened
- Number of Teeth: 90
- External Spline: 80 Teeth
Applications
For use in planetary gear sets. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Outside Diameter | 346.9 mm (13.66 in) |
| Height | 64.7 mm (2.55 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Track Loaders: 982, 834H, 826H, 824C, 826K, 826G, 824G
- Compactors: C9.3B, 825K, 824K, 834K
- Excavators: 3508B
- Wheel Loaders: 982M, 986K, 980M
- Asphalt Pavers: AD30
Additional information
| Machine Model | 3508B, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 834K, 980M, 982, 982M, 986K, AD30, C9.3B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
