Description

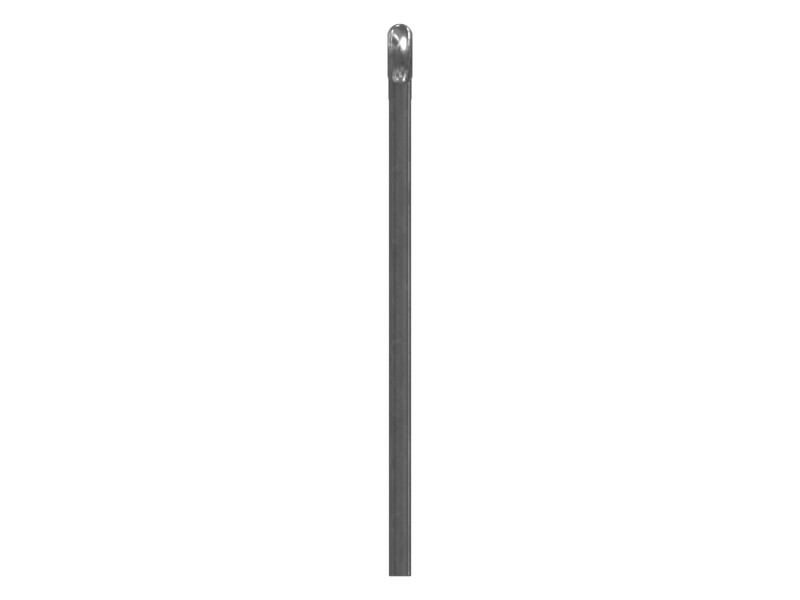

The adjusting eye rod is a long, slender rod with a ring at one end that can be mounted on the alternator pulley. The other end of the rod has a nut that can be tightened or loosened to adjust belt tension. It is made of strong, durable materials such as steel. It is important to use the correct size and type of adjusting eye rod for your alternator.
Features
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Provides precise and accurate adjustment for effective alignment and positioning.
- Provides an evenly distributed load along its length, preventing concentrated stress points.
- Provides a Rockwell hardness of C55 to withstand heavy loads.
Applications
The adjusting eye rod is a component of the alternator mounting unit and is used to adjust the tension of the alternator belt.
Specifications
| Inside Diameter | 13.8 (Eye) mm (0.543 (Eye) in) |
|---|---|
| Outside Diameter | 24 (Eye) mm (0.945 (Eye) in) |
| Length | 300 (To Eye Centerline) mm (11.8 (To Eye Centerline) in) |
| Material Description | Steel |
| Thread Size | 1/2-20 in |
Compatible Equipment
- Engines: C15, C18
- Compactors: C-15
- Wheel Loaders: R2900G
- Excavators: 3456
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
