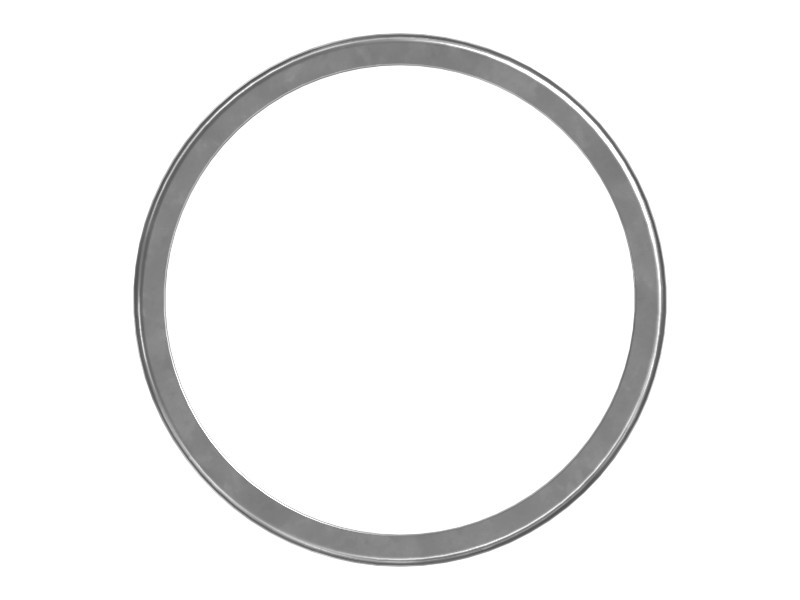

7D-6232 5.394 in ID Piston Seal Ring
Cat® power train differential and bevel gear piston seal ring reduces the risk of contamination and maintains power train integrity.
Description
D-rings are used in dynamic applications. These seals have a curved inner or outer profile to optimize performance and sealing capability.
Cat® D-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat D-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our D-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Specifications
| Seal Type | D-Ring Seal |
|---|---|
| Material | NBR |
| Material Description | Nitrile rubber (NBR) has a service temperature range of -40 to 100C and is resistant to fuel, gasoline, ultra-low sulfur diesel and lubricants. Nitrile rubber is not recommended for applications requiring biodiesel or coolant resistance. |
| Hardness | 90 Shore A |
| Cross-Section Orientation | Curved OD |
| Inside Diameter | 137.01 mm (5.394 in) |
| Outside Diameter | 155.30 mm (6.114 in) |
| Cross-Section Width | 5.59 mm (0.220 in) |
| Cross-Section Height | 9.14 mm (0.360 in) |
| Coating | None |
| Color Note | Actual O-ring color may differ from the image. |
| Remarks | Dimensions and material descriptions are for reference only. |
Compatible Equipment
- Excavators: 621H, 621G, 621K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
