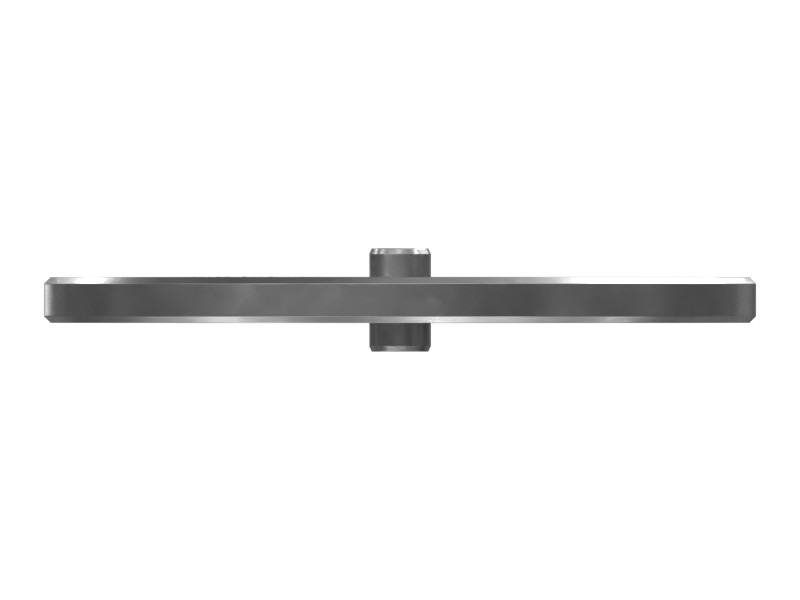

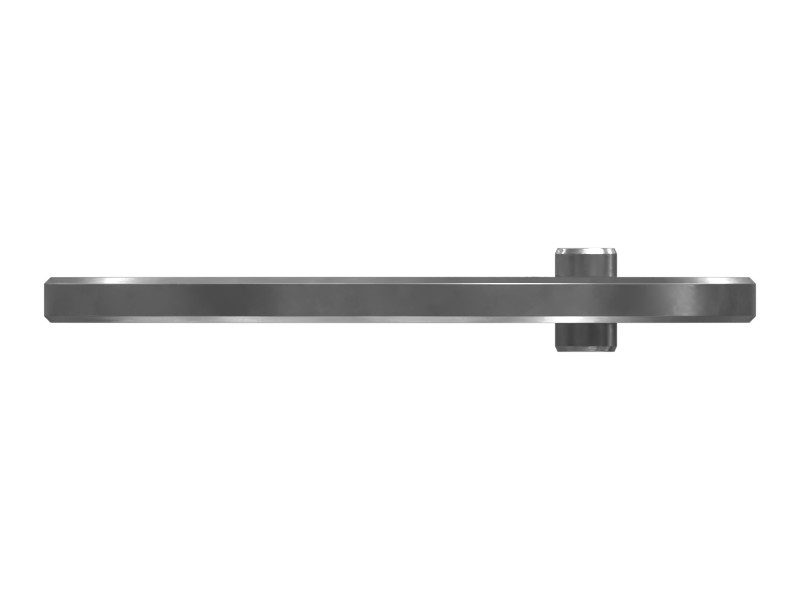

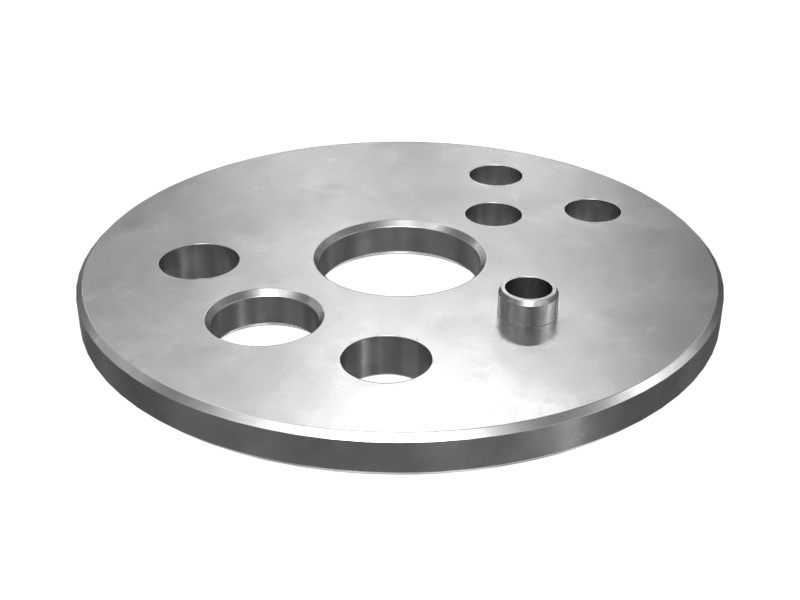

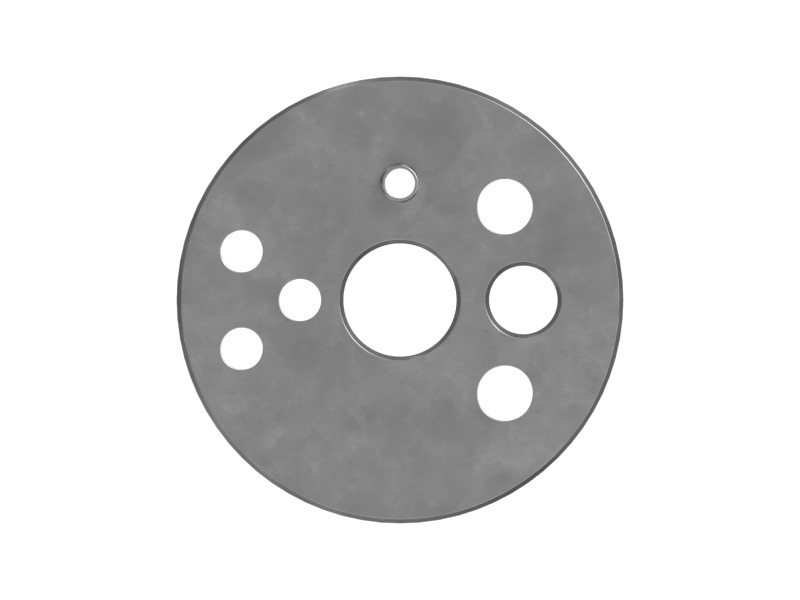

7C-3258 Thrust Washer with Pin
Cat® Thrust Washer for Timing Gear Drives and Front Cover Housings
Description
Thrust washers are designed to provide axial positioning for gears, bearings, and other components that rotate around a shaft. These components may have features that facilitate lubrication and cooling to support substantial axial loads and high rotational speeds.
Specifications
| Gasket Type | Thrust |
|---|---|
| Material | Bronze |
| Inside Diameter | 28 mm (1.1 in) |
| Outside Diameter | 110 mm (4.33 in) |
| Thickness | 7 mm (0.27 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, G3516, G3516C, C4.4
- Track Loaders: 994K, 995
- Dozers: D11R, D11N
- Excavators: 3512C, 3516B, 3508B, 6060, 3516E
- Off-Highway Trucks: 785, 789, 777D, 785D, 789D, 777, 793, 793D
