Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | 0.250 mm (0.01 in) |
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Bolt Length | 31.75 mm (1 1/4 in) |

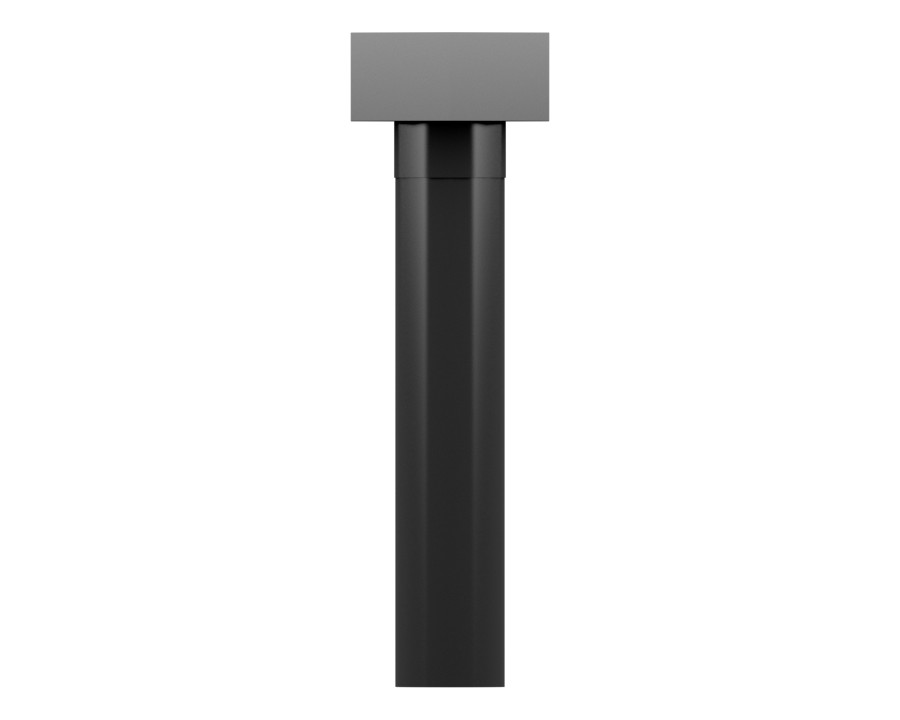

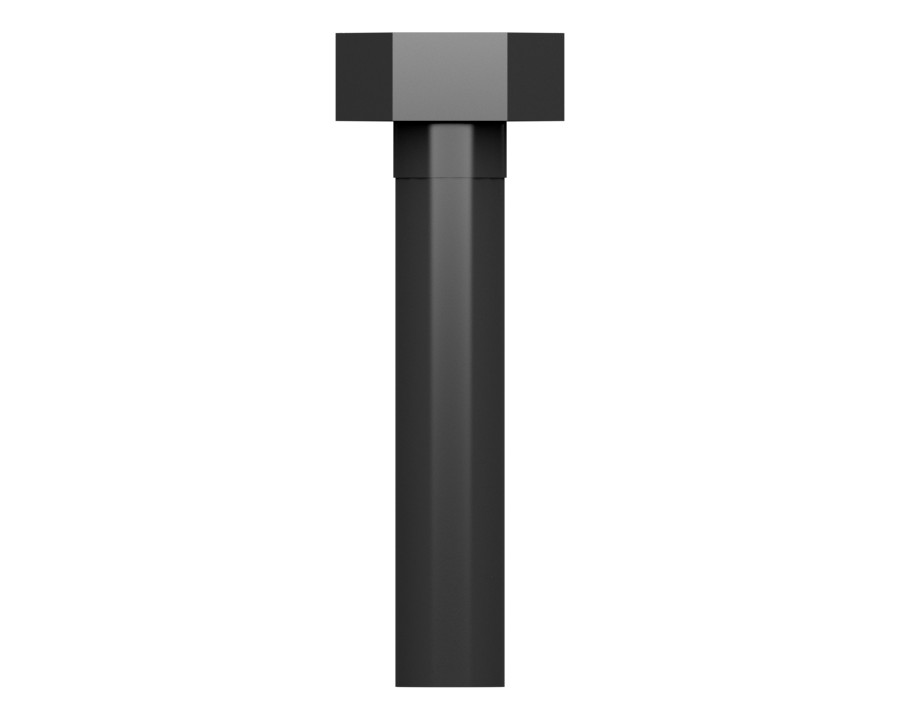

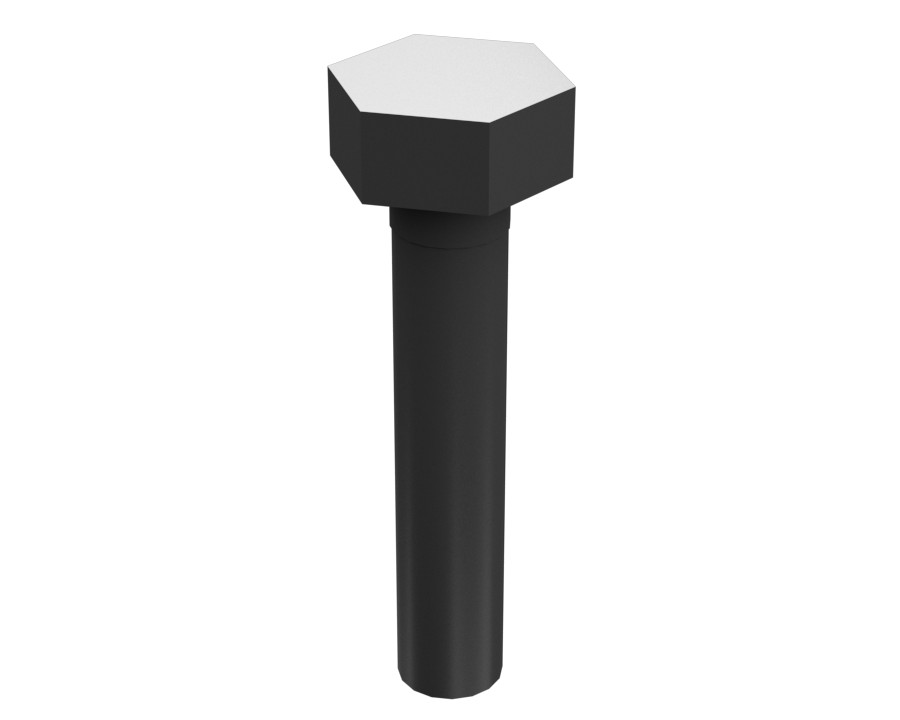

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 3.175 mm (0.13 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: 3406B, 3406C, 3512B, 3516C, 3512E, C9, G3516, C7.1, C4.4
- Track Loaders: 963, 824C, 953, 826G, 816F, 824G
- Compactors: 814, 815, 816, C9.3B, CS-533C, C-15, C-9
- Engines: C15, C32, C7, C11, C13, C27, C18, C12
- Excavators: 3126, 3456, 330 L, 637E, 657G, 3516B, 3508B, 3512C, 3516E, 621G, 6015 FS, 350 L, 6018, 330B, 637G, 6015, 385C, 6060
- Asphalt Pavers: AD30, AD45
- Skid Steer Loaders: 3126B, 24
- Motor Graders: 140G, 140H, 120, 3606, 16, 12H
- Dozers: D10, D7H, D5N, D7G2, D7G, D6N, D4E, D6R, D9R, D8L, D8N, D7R, D7R II, D5H, D9T, D10R, D8R, D6G, D9L, D9N, D11N, D10N, D11T, D11R, D10T2
- Wheel Loaders: 950, 966F, 980, 834, 992C, 992D, R1300G, 972G, 836, 910, 980G, 988G, 988F
- Off-Highway Trucks: 740, 789D, 785, 789, 773E, 771D, 777D, 735, 793, 777, 785D, 773D, 793D, 773
Additional information
| Machine Model | 120, 12H, 140G, 140H, 16, 24, 3126, 3126B, 330 L, 330B, 3406B, 3406C, 3456, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 385C, 6015, 6015 FS, 6018, 6060, 621G, 637E, 637G, 657G, 735, 740, 771D, 773, 773D, 773E, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 814, 815, 816, 816F, 824C, 824G, 826G, 834, 836, 910, 950, 953, 963, 966F, 972G, 980, 980G, 988F, 988G, 992C, 992D, AD30, AD45, C-15, C-9, C11, C12, C13, C15, C18, C27, C32, C4.4, C7, C7.1, C9, C9.3B, CS-533C, D10, D10N, D10R, D10T2, D11N, D11R, D11T, D4E, D5H, D5N, D6G, D6N, D6R, D7G, D7G2, D7H, D7R, D7R II, D8L, D8N, D8R, D9L, D9N, D9R, D9T, G3516, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
