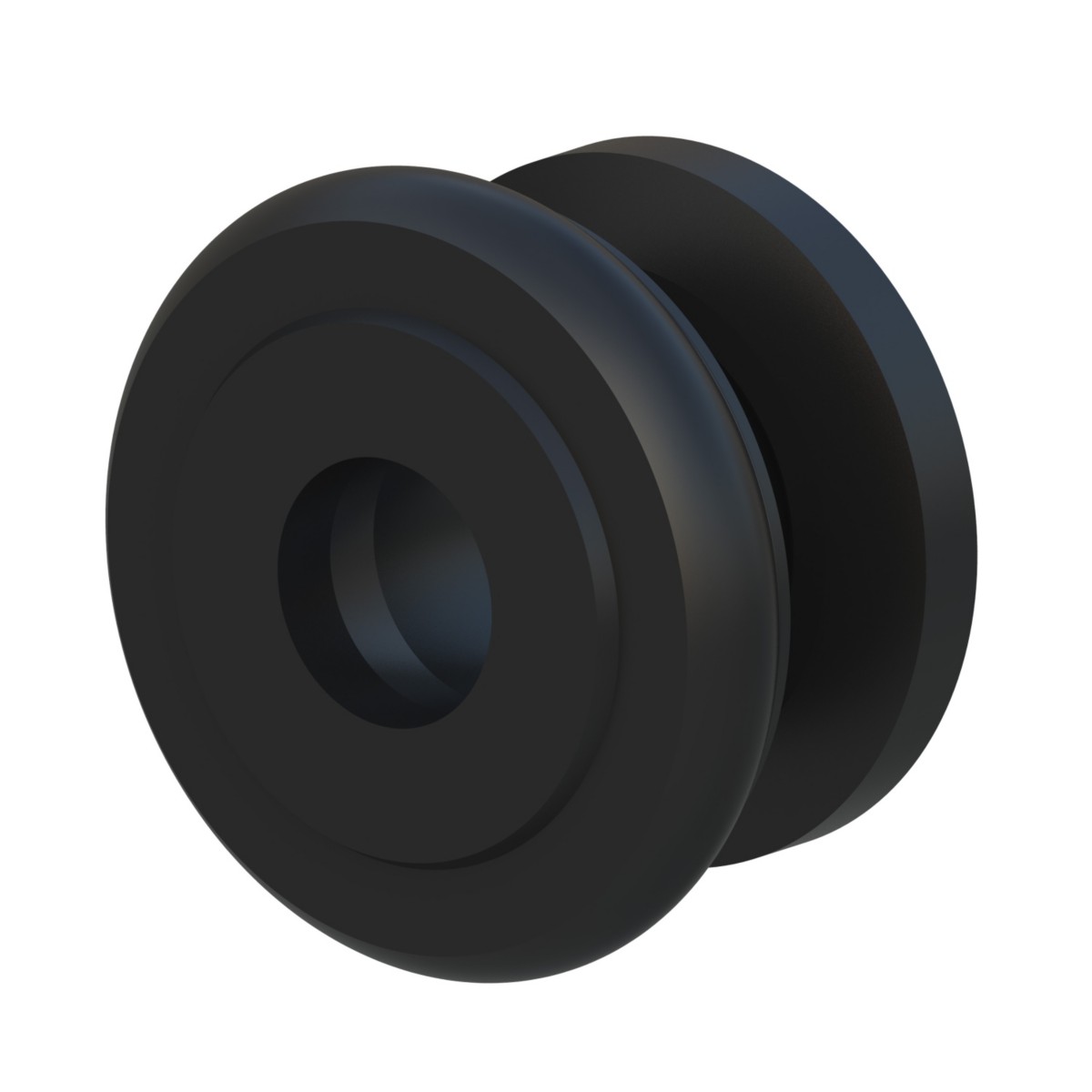

6Y-9960 130 mm OD Two-Piece Engine Mount
Cat® mount provides firm support for engine and transmission components.
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Two-piece mounts can be fine-tuned through the rubber compound and design geometry to suit a specific application. The mounts are typically pre-compressed for long service life.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Material Description | Rubber |
|---|---|
| Pilot OD | 7.2 mm (2.76 in) |
| Standard Bolt Size | M24 mm |
| Mounting Type | Two-Piece – Asymmetric |
| Head Thickness | 31.5 mm (1.24 in) |
| Base Height | 84 mm (3.31 in) |
| Head Outside Diameter | 13 mm (5.12 in) |
| Bonded Sleeve | None |
| Inside Diameter | 26.8 mm (1.05 in) |
| Spacer Height | 25 mm (0.98 in) |
| Bolt Type | M24 |
Compatible Equipment
- Motor Graders: 14, 18, 16, 16M, 140K, 12K, 120, 160K, 120H, 140H, 12H, 14M, 16M3
- Track Loaders: 826H, 824C, 816F, 824G, 982, 826G
- Engines: C15, C18
- Dozers: D10R
- Excavators: 6015B, 6030, 6040, 6015
- Wheel Loaders: 980M, 982M, 986K
- Off-Highway Trucks: 740, 740B, 777E, 740 GC, 725, 771D, 745, 735, 730, 773E, 773D, 725C2, 773F, 777D, 773, 777, 745C
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140H, 140K, 14M, 16, 160K, 16M, 16M3, 18, 6015, 6015B, 6030, 6040, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 771D, 773, 773D, 773E, 773F, 777, 777D, 777E, 816F, 824C, 824G, 826G, 826H, 980M, 982, 982M, 986K, AD45, AD63, C15, C18, D10R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
