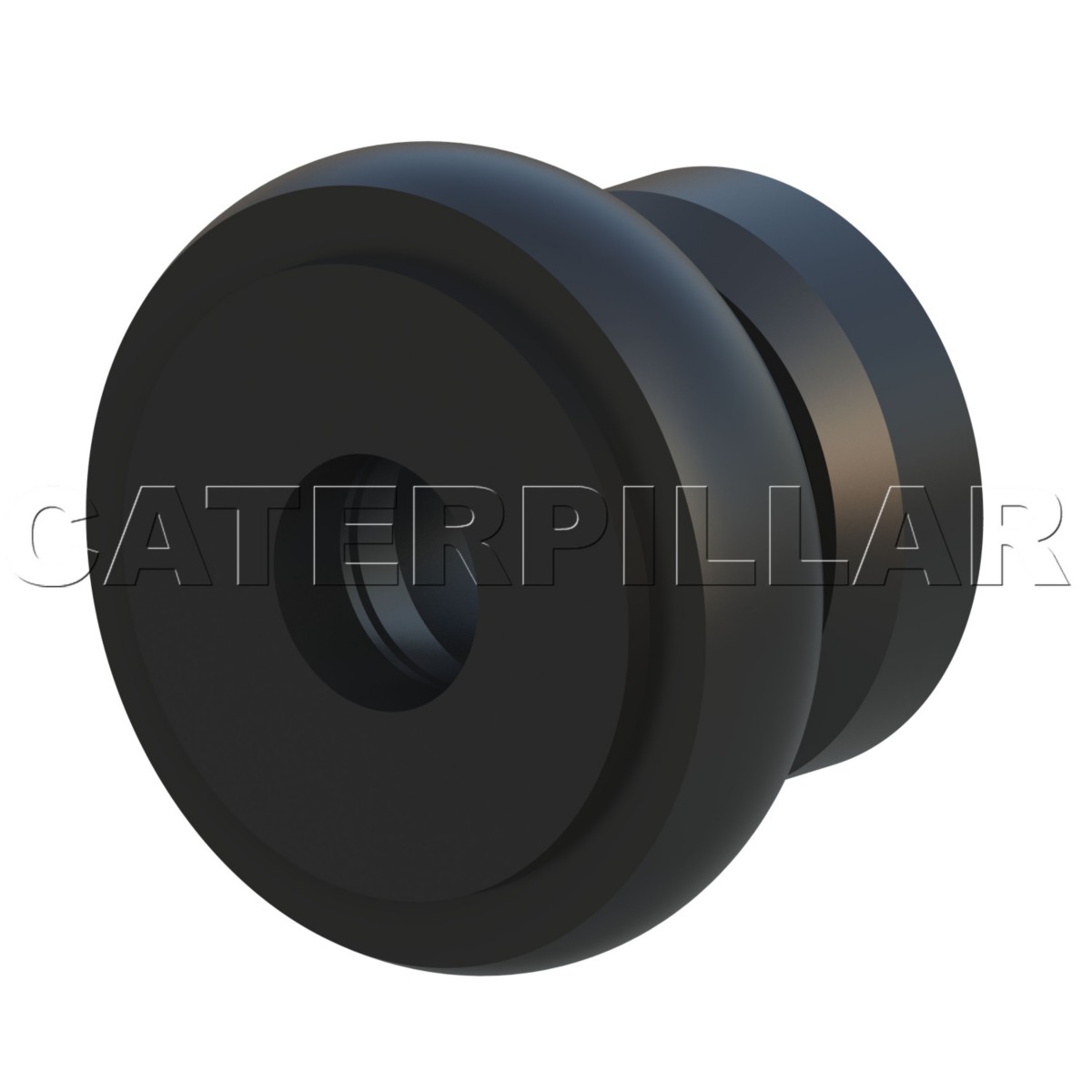

6Y-9915 Two-Piece Asymmetric Isolation Mount
Cat® two-piece asymmetric isolation mount for engines provides vibration damping and secure positioning, improving safety.
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Two-piece mounts can be fine-tuned through the rubber compound and design geometry to suit a specific application. The mounts are typically pre-compressed for long service life.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Standard Bolt Size | M16 mm |
|---|---|
| Inside Diameter | 16.8 mm (0.66 in) |
| Spacer Height | 25 mm (0.98 in) |
| Head Outside Diameter | 91 mm (3.58 in) |
| Pilot OD | 50 mm (1.97 in) |
| Bonded Sleeve | None |
| Head Thickness | 28.8 mm (1.13 in) |
| Base Height | 60 mm (2.36 in) |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 973K, 972, 953
- Cold Planers: PL72
- Motor Graders: 140 GC, 120
- Compactors: CS-54, C13B, C9.3B, CS-533E
- Engines: C13, C15, C18
- Dozers: D6T, D6T LGP, D7E, D7
- Excavators: 3516B, 3508B
- Wheel Loaders: 966
- Off-Highway Trucks: 735, 740, 730, 725
Additional information
| Machine Model | 120, 140 GC, 3508B, 3516B, 725, 730, 735, 740, 953, 966, 972, 973K, C13, C13B, C15, C18, C7.1, C9.3B, CS-533E, CS-54, D6T, D6T LGP, D7, D7E, PL72 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
