6Y-7929 Friction Disc
Cat® Friction Disc (Transmission)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat friction discs are used in the transmission system to absorb high power and energy during shifts.
Features
- Two-way multiple parallel grooves optimize heat dissipation.
- Hardened steel core reduces spline wear.

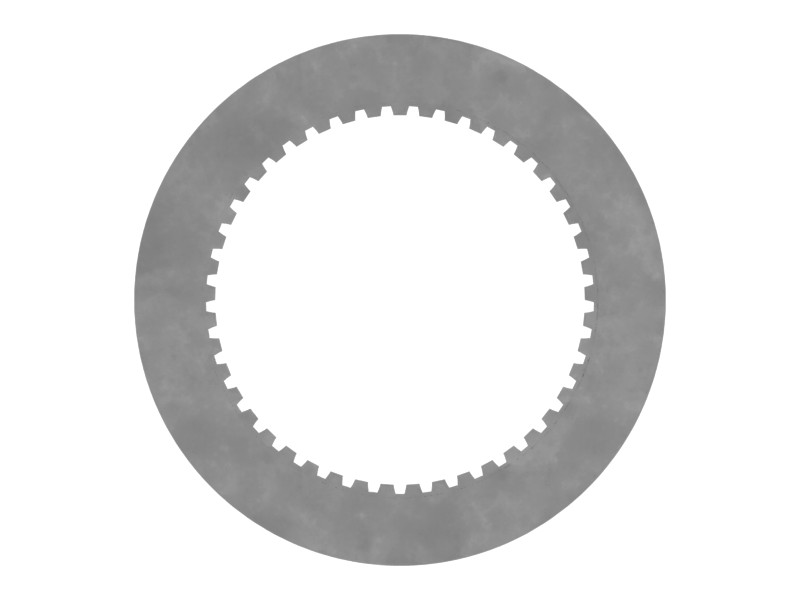

- (45) tooth internal spline ensures an accurate OEM fit.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Non-Band Type Friction Material |
|---|---|
| Inside Diameter | 92.96 mm (3.6598 in) |
| Outside Diameter | 133.4 mm (5.2519 in) |

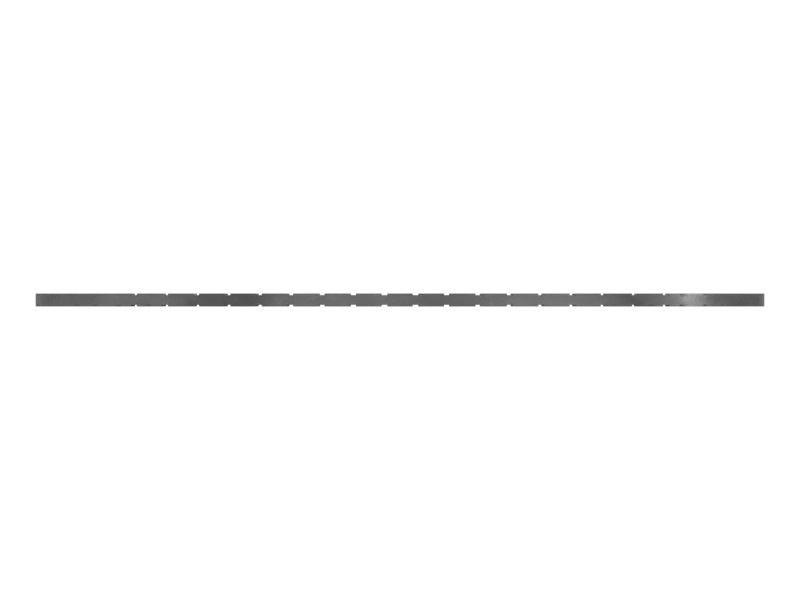

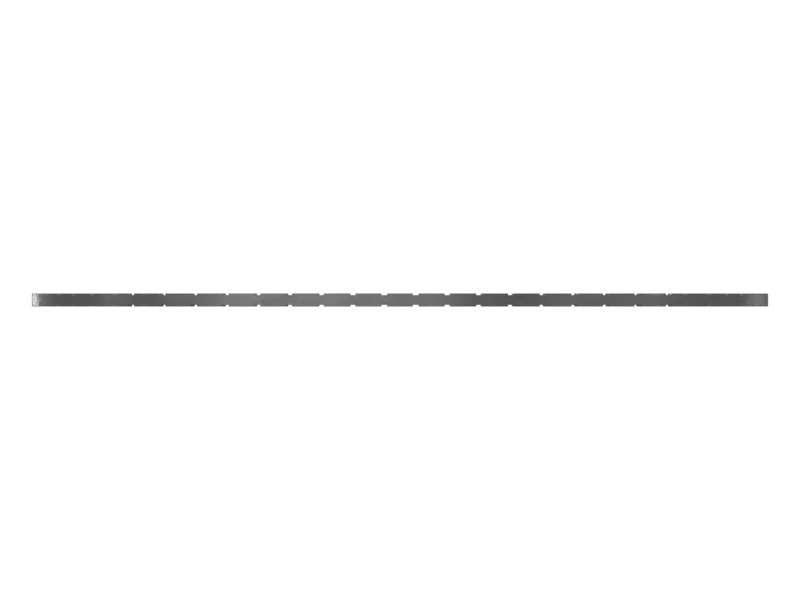

| Thickness | 2.05 mm (0.0807 in) |
Compatible Equipment
- Generator Sets: C7.1, C4.4
- Excavators: 434F2, 428F, 416E, 432
- Wheel Loaders: 938M, 938K, 924K, 926M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
