Description

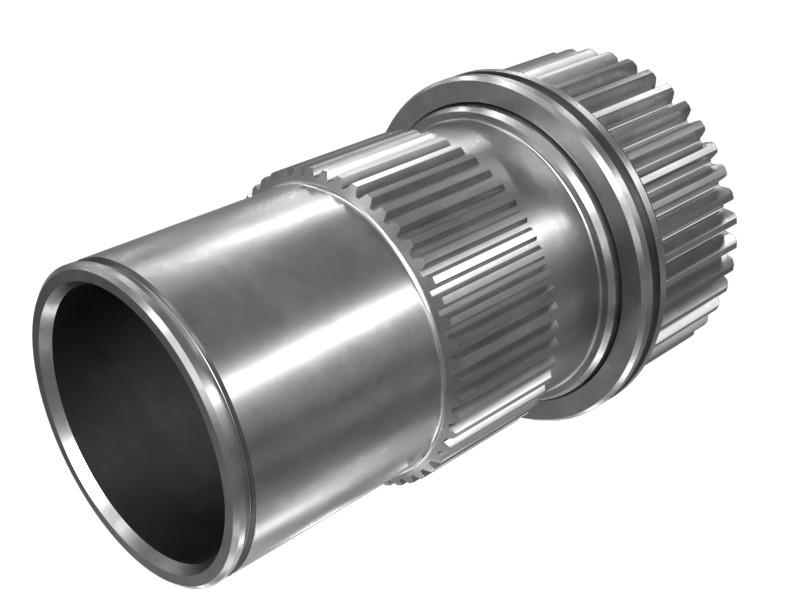

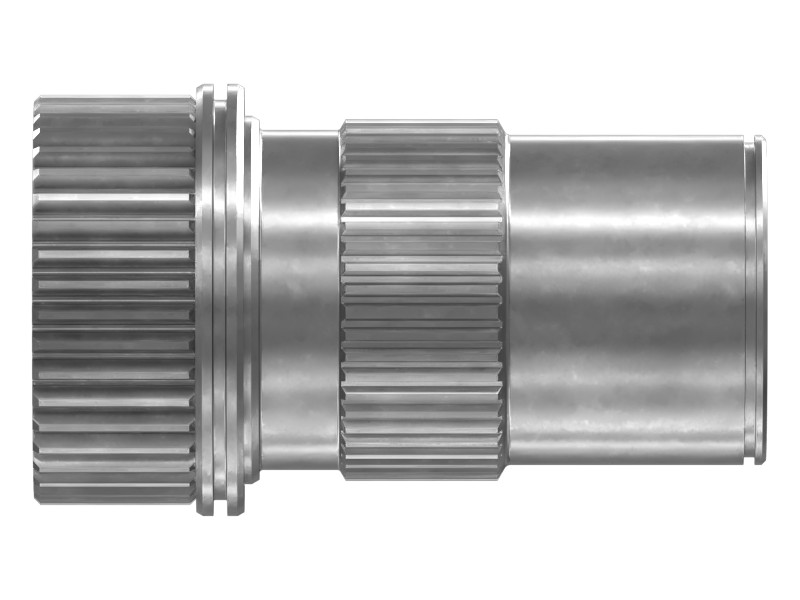

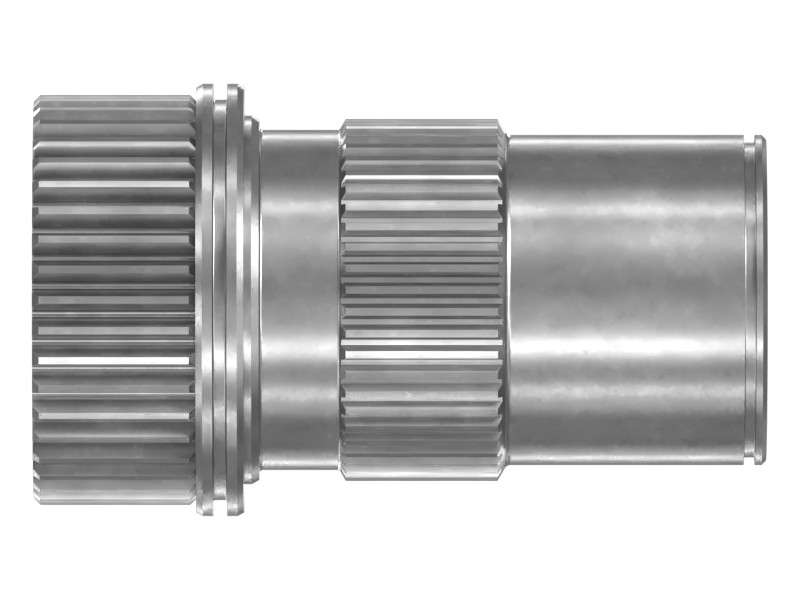

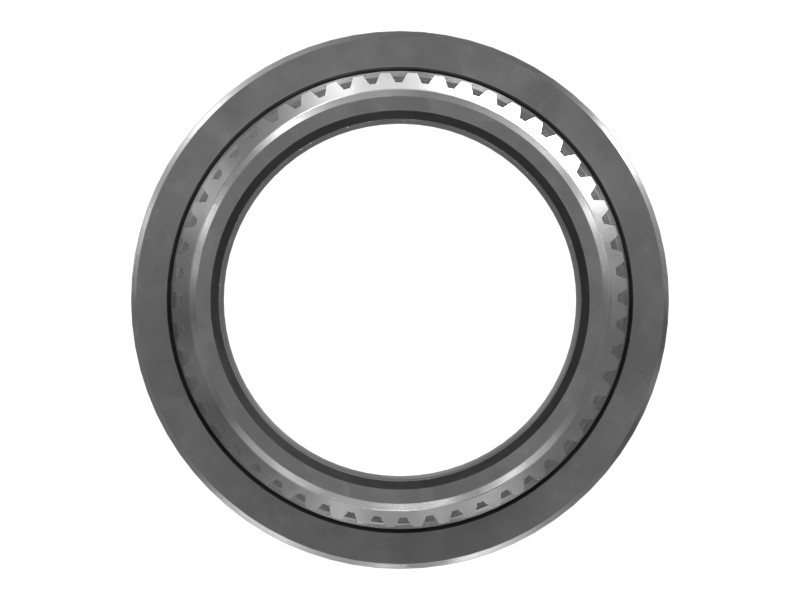

Gear used in the transmission planetary gear set.
Features
- Group includes gear and seal ring carrier
- Number of External Spur Gear Teeth: 42
- Number of External Spline Teeth: 52
- Cat gears are machined from select high-quality materials strictly to technical specifications matched to the loads Cat machines carry. They are produced with special (in some cases proprietary) heat treatment processes, including case carburizing, nitriding, and induction hardening. Cat gears offer industry-leading power density (the power a gear can transmit relative to its size) and are designed with reusability in mind. As a result, they are more durable and effectively lower overall machine operating costs.
Applications
Cat gears are built for specific applications and designed to ensure all powertrain parts operate as a whole and withstand wear. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 99.80 mm (3.929 in) |
|---|---|
| Inside Diameter | 66.0 mm (2.598 in) |
| Length | 169.0 mm (6.653 in) |
Compatible Equipment
- Track Loaders: 972
- Wheel Loaders: 966M, 966 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
