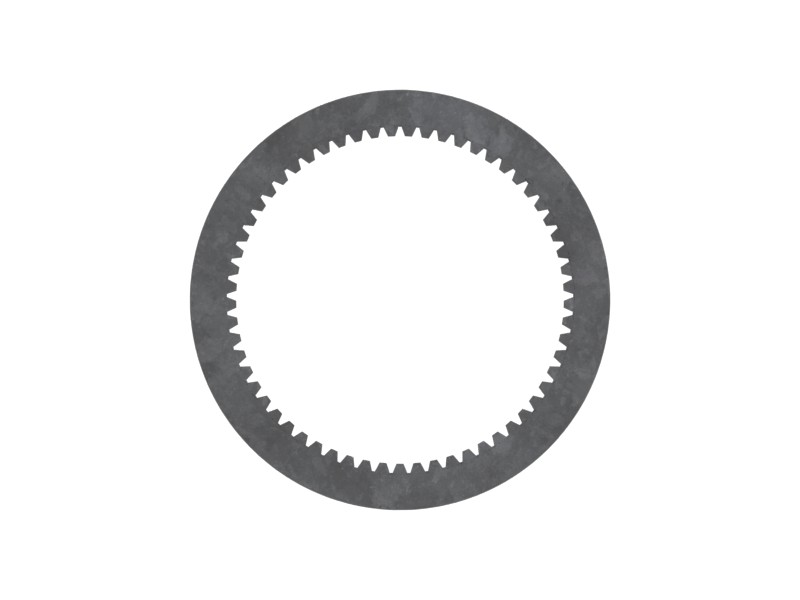

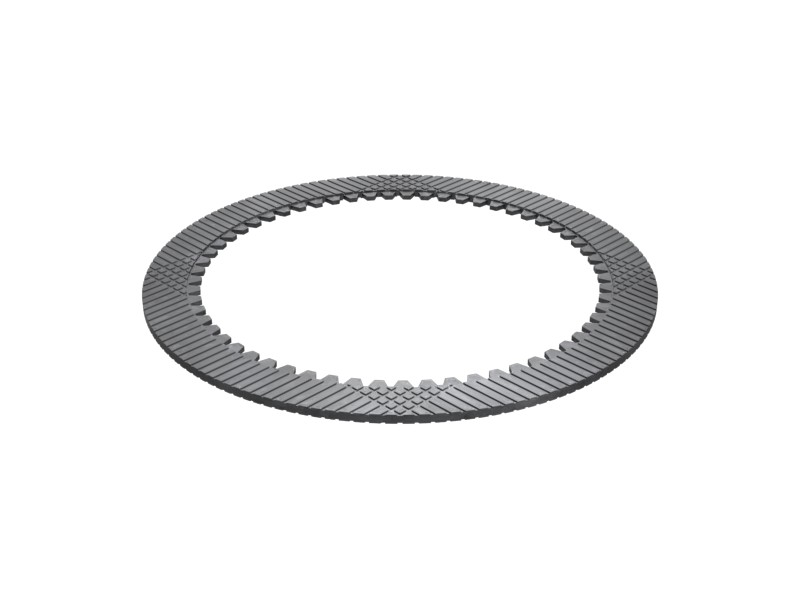

6Y-5352 281.8 mm OD Clutch Friction Disc
Cat® Friction Disc (Transmission, Planetary Gear Assembly, Parking Brake)
Description
Cat powertrain components must withstand extreme torque, high shock loads, and frequent direction and gear changes. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat friction discs are used with the braking system to provide the critical friction that slows, stops, or holds the machine stationary. Caterpillar friction discs use better materials and more mature processes, so Caterpillar friction discs offer better reliability and longer service life, and can reduce machine downtime.
Specifications
| Material | Carbon Steel |
|---|---|
| Inside Diameter | 220.05 mm (8.663 in) |
| Outside Diameter | 281.8 mm (11.094 in) |
| Thickness | 4.95 mm (0.1948 in) |
Compatible Equipment
- Generator Sets: C7.1
- Motor Graders: 140H, 12K, 120H, 160K, 12H, 120, 140K
- Dozers: D5H, D6N, D6M, D5N, D5M
- Wheel Loaders: 966 GC
