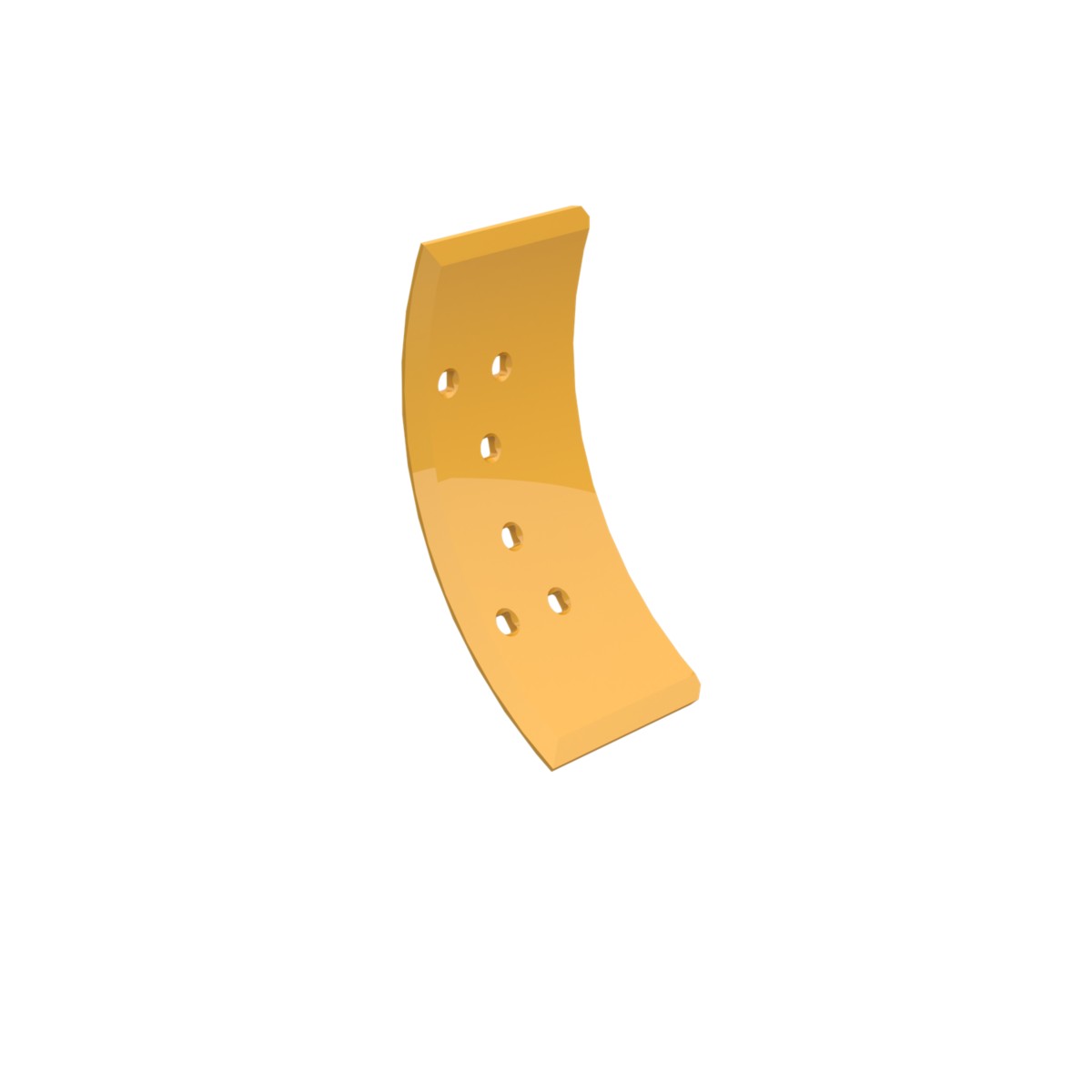

6Y-2805 Motor Grader Horizontal Cutting End Bit
Cat® Motor Grader End Bit part 6Y-2805 is designed to protect the blade of ground engaging equipment from damage.
Description
Cat® horizontal cutting end bits offer unmatched manufacturing precision to protect your machine blade from damage. Our bucket G.E.T. is designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat Horizontal Cutting End Bits feature a flat design with angled ends suited for working close to curbs, minimizing windrows and reducing time on finish grading applications. Reversible and extended reversible versions are also available, doubling wear life when curb work is not required.
Our end bits are durable, cast from DH-2 steel that holds its hardness and offers long wear life, enabling your machine to deliver the performance you need. Always choose Genuine Cat bucket ground engaging tools to protect your investment.
Features
- Matches cutting edge depth
Applications
- Level and semi-level dozing in compacted soil, hard ground or frozen ground
Specifications
| Position | RH/LH |
|---|---|
| Hole Size | 3/4-in Plow Bolt (21 mm square) |
| Number of Holes | 6 |
| Thickness | 12.7 mm (0.5 in) |
| Material | Boron Steel |
| Width | 236.22 mm (9.252 in) |
| Length | 513.08 mm (20.20 in) |
| Height | 99.06 mm (3.90 in) |
Compatible Equipment
- Motor Graders: 12K, 160K, 120, 140 GC, 14, 12H, 140K, 140H, 14M
