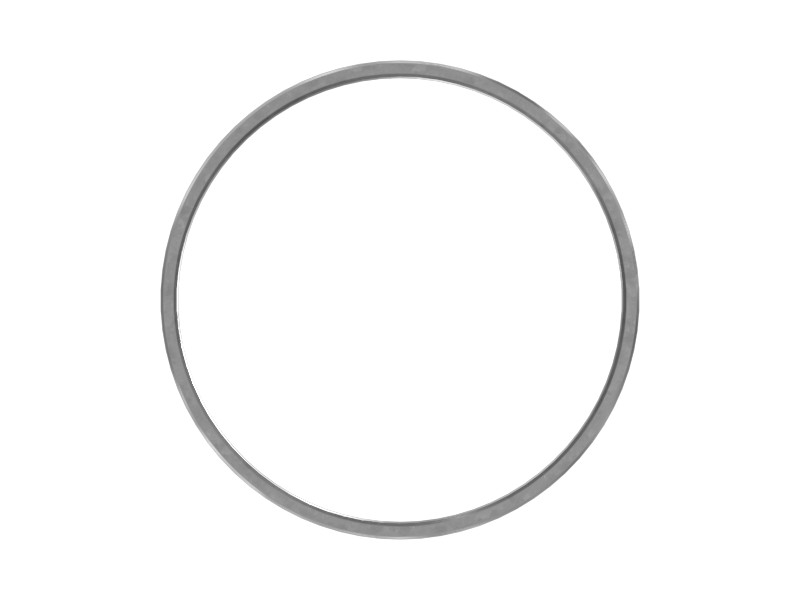

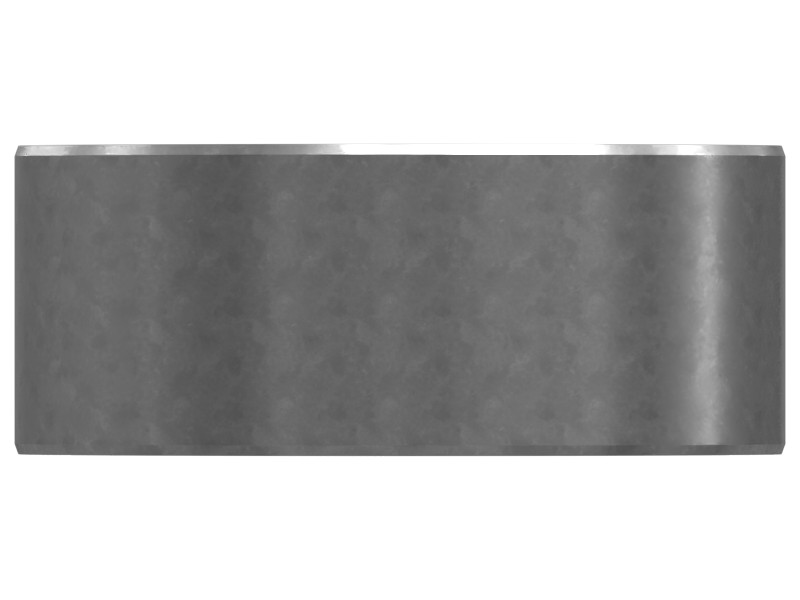

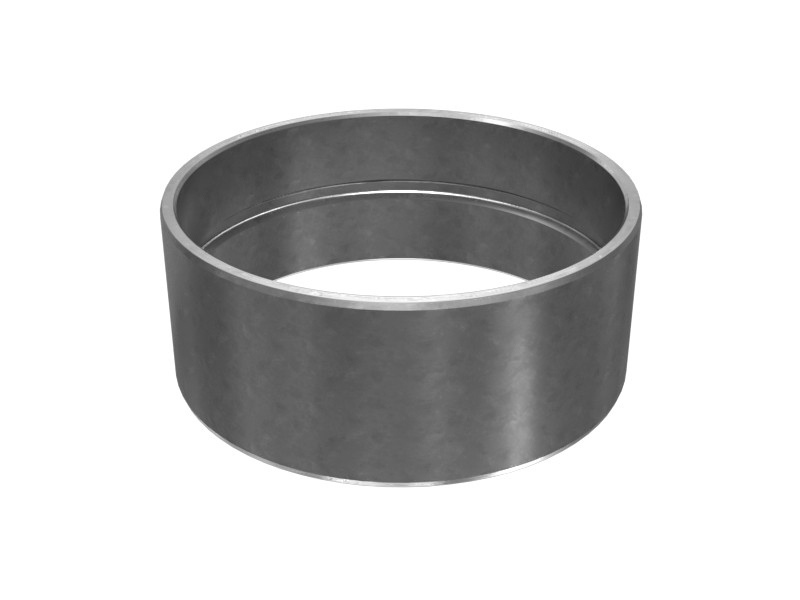

6Y-1895 75.021 mm OD Sleeve Bearing
Cat® 75.021 mm OD 30 mm Long Sleeve Bearing for Gears in Transmission Clutch Pistons
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Inside Diameter | 70.021 mm (2.757 in) |
|---|---|
| Unique Features | No |
| Ferrule Outside Diameter | 75.021 mm (2.954 in) |
| Type | Straight Sleeve |
| Material | Steel-backed Bronze |
| Inside Diameter | 70 mm (2.76 in) |
| Outside Diameter | 75 mm (2.95 in) |
| Overall Length | 30 mm (1.18 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Motor Graders: 16M, 12H, 14M, 140H, 120, 16M3, 120H, 14, 12K, 160K, 16, 18, 140K
