Description

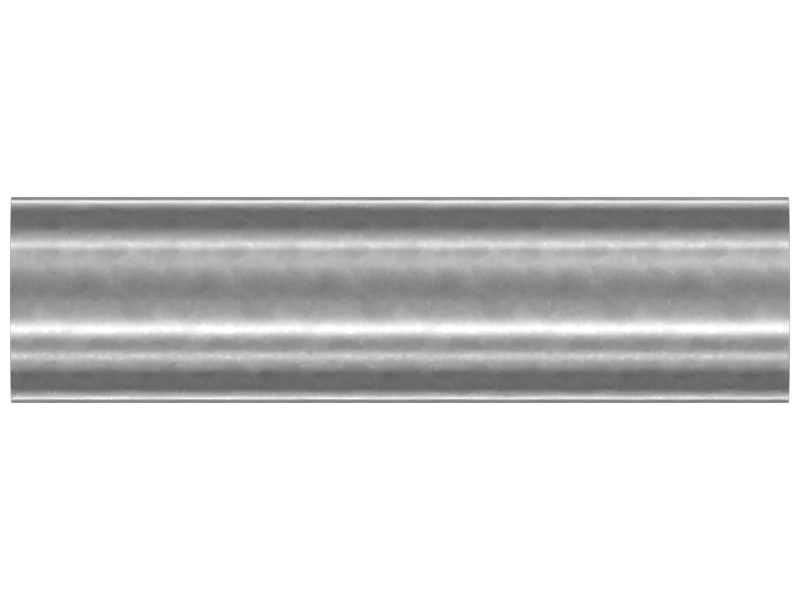

Shims such as 6W-6220 are commonly used to provide additional stretch length in fasteners to reduce preload loss or narrow the cyclic stress range under machine workloads. They are used to establish and maintain the functional relationship of related parts in machine systems and are designed to increase productivity and reliability and extend service life.
Features
- Manufactured to exact specifications for rugged durability, reliable performance and high efficiency
- Material: Steel
- Non-threaded center hole slot
- Inside Diameter: 13 mm (0.49 in)
- Outside Diameter: 17 mm (0.67 in)
- Length: 65 mm (2.55 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Gasket Type | Flat |
|---|---|
| Thickness | 64.8 mm (2.551 in) |
| Coating | Not Specified |
| Center Hole Shape | Non-Threaded |
| Inside Diameter | 13 mm (0.49 in) |
| Outside Diameter | 17 mm (0.68 in) |
| Length | 65 mm (2.55 in) |
Compatible Equipment
- Generator Sets: 3512B, 3512E
- Wheel Excavators: MD6250, MD6310
- Compactors: CB10
- Dozers: D6R III, D6R XL, D6R
- Excavators: 3508B, 3516E, 3516B
- Wheel Loaders: RM400
- Off-Highway Trucks: 777D, 777, 785
Additional information
| Machine Model | 3508B, 3512B, 3512E, 3516B, 3516E, 777, 777D, 785, CB10, D6R, D6R III, D6R XL, MD6250, MD6310, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Generator Sets |
| Part Source | Genuine OEM |
