Description

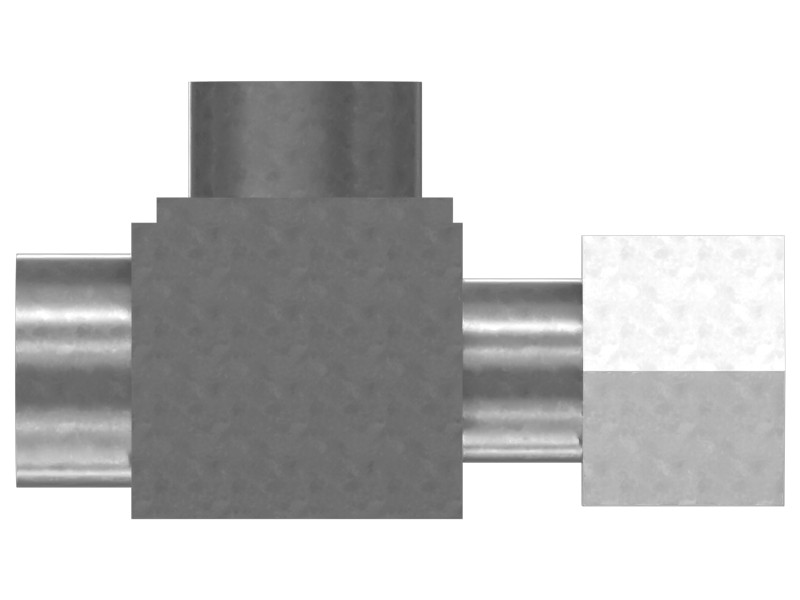

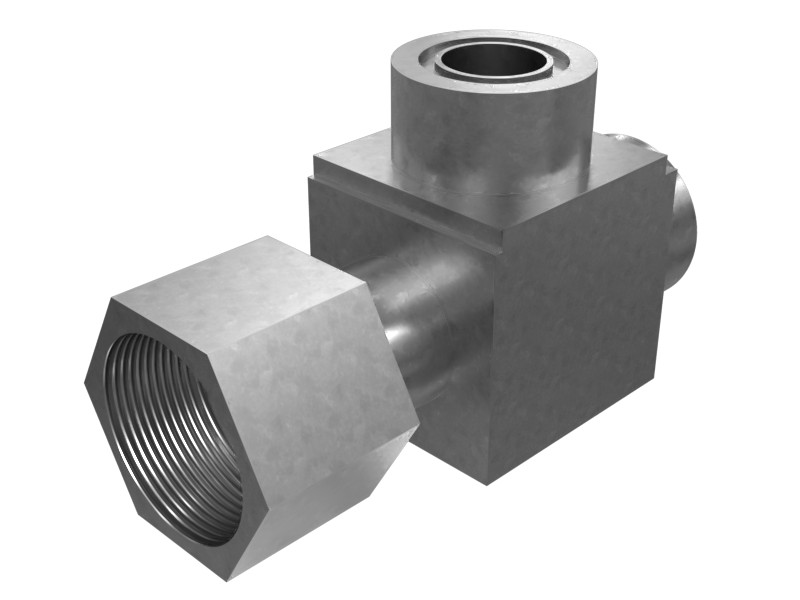

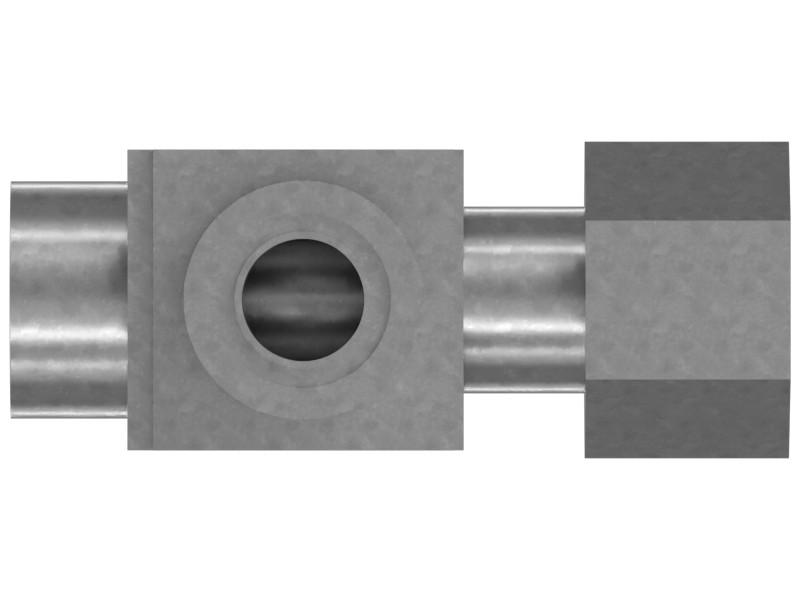

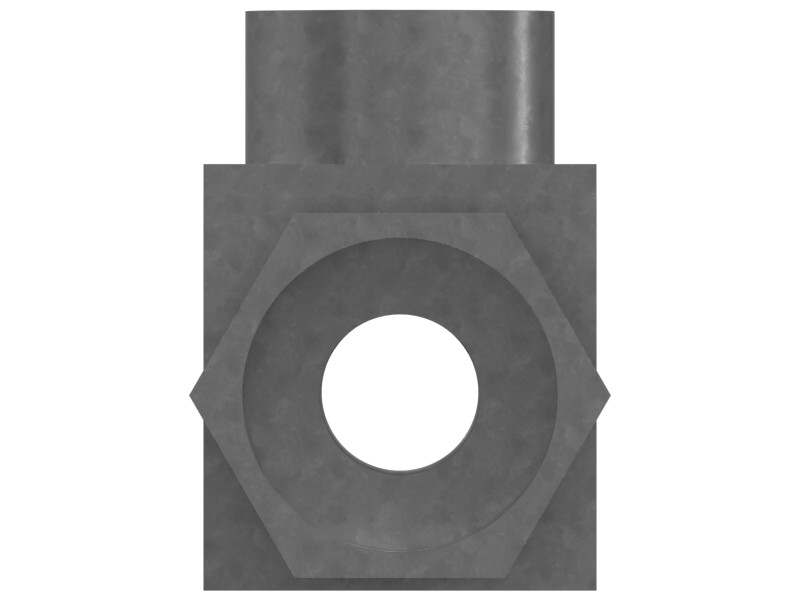

A tee adapter connects three flow passages within a hydraulic system, forming a T-shaped junction.
Features
Cat® tee adapters are built to resist leaks and last in harsh application environments.
Recommended Applications:
Cat tee adapters are suitable for a wide range of hydraulic applications, from hydraulic oil systems to brake systems.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Width | 60.96 mm |
| Material Description | Plated Steel |
| Length | 91.44 mm (3.6 in) |
| Height | 35.56 mm (1.4 in) |
| Material | Carbon Steel |
| Coolant and DEF Compatible Seals | 291-8145 (1-3/16-12), 294-9072 (1-3/16-12) |
| Oil and Fuel Compatible Seals | 228-7092 (1-3/16-12), 238-5083 (1-3/16-12) |
| Transmission and Hydraulic Oil Compatible Seals | 4K-1388 (1-3/16-12), 6V-9746 (1-3/16-12) |
Compatible Equipment
- Generator Sets: G3516C, 3516C, 3512E, 3512B, G3516
- Track Loaders: 992, 834H, 963D, 990K, 824C, 972, 994K, 826K, 982, 826H, 993, 995, 824G, 826G
- Cold Planers: SE50 VT, PL87, PM-200, PL83, SE60 VT XW
- Compactors: 834K, 825K, CB-534D, CS-54, CB-564D, CB-334D, 824K, CS-533E
- Engines: C32, C175-16
- Excavators: 320D2, 307E, 336D2, 308D, 320D, 390D L, 349D2, 349D2 L, 303.5E2 CR, 336D, 349D, 330D L, 349F L, 305E2 CR, 374, 336D L, 336E LH, 320D L, 312C, 330D, 336E L, 336E H, 336D2 L, 6060, 120 GC, 3512C, 637K, 3516E, 349D L, 345C L, 340D2 L, 6015B, 621H, 416F2, 349E L, 345D L, 385C L, 365B, 416E, 345C, 340D L, 385C, 6015, 6030, 365C L, 349E, 352F, 385B, 6020B, 385C FS, 3516B, 350 L, 349E L VG, 6040, 345D, 432, 320C, 336F LN, 336F L XE, 312E L, 312D, 328D LCR, 323D L, 336D2 GC, 312D L, 320D2 L, 336F, 336F L, 336E, 323D2 L, 320D2 GC, 311D LRR, 330C L, 312F, M325D L MH, 329E L, 325C, 390D, 336D2 XE, 325B L, 313F L, 365C, 365B L, 312C L, 312E, 336E LN, 315D L, 3508B, 345B, 621K
- Asphalt Pavers: AP655F, AP300F, AP-600D, AD45, AP655F L
- Skid Steer Loaders: 24, 236
- Motor Graders: 16M, 120, 140 GC, 14, 12H, 140K, 140H, 160K, 14M, 12K, 16H, 120H
- Wheel Excavators: MD6310, M315, IT14G, M320, MD6250, M315GC, MD6200
- Dozers: D6K2, D6R III, D6T, D7R II, D6R II, D6N, D8T, D6R, D4, D7, D9, D8, D10N, D8R, D8N, D7R, D6R XL, D9T, D7E, D9R, D10R
- Mini Excavators: 307C, 305.5E2, 305E2
- Wheel Loaders: 988K, 962G, 972G, 980G, 972H, 972L, 966H, 928G, 950G, 938M, 966L, 980H, 924GZ, 950L, 988H, 992D, 988G, 992C, 950H, 834, R1700K, R2900 XE, 836, 950 GC, 966K, 986H, 966, 924K, 980, 928HZ, 990H, M314, R1700 XE, 938K, 926M, 962L, R1600H, 980L, 910, 906K, RM400
- Off-Highway Trucks: 794 AC, 785D, 798 AC, 730, 796 AC, 745C, 773D, 777D, 793D, 789D, 777, 745, 772G, 789, 793F, 740, 770G, 773F, 775G, 735, 797F, 793, 725C2, 773, 785, 777E, 725, 740 GC
