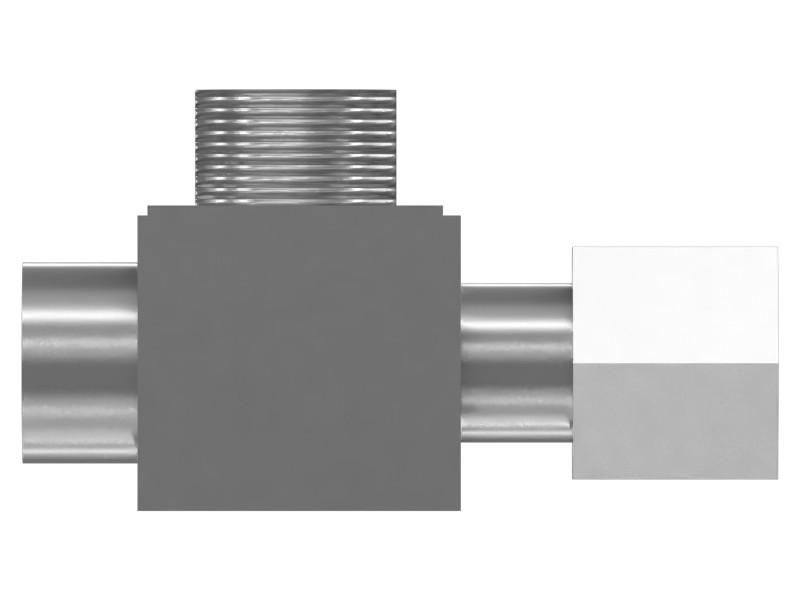

6V-9837 13/16″ Tee Adapter
Cat® 13/16" ORFS Tee Adapter
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A tee adapter connects three flow passages within a hydraulic system, forming a T-shaped junction.
Features
Cat® tee adapters are built to resist leaks and last in harsh application environments.
Recommended Applications:
Cat tee adapters are suitable for a wide range of hydraulic applications, from hydraulic oil systems to brake systems.
Specifications
| Length | 68.58 mm (2.7 in) |
|---|---|
| Width | 40.64 mm |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Height | 30.48 mm (1.2 in) |
| Material Description | Plated Steel |
| Material | Carbon Steel |
| Transmission and Hydraulic Oil Compatible Seals | 6V-8398 (13/16-16) |
| Oil and Fuel Compatible Seals | 228-7090 (13/16-16) |
| Coolant and DEF Compatible Seals | 180-8424 (13/16-16) |
Compatible Equipment
- Generator Sets: 3516C, 3512E, G3516C, G3516, C9, 3512B
- Track Loaders: 834H, 953D, 826G, 826H, 826K, 995, 972, 994K, 993, 990K, 982, 824G, 963K, 963D
- Cold Planers: SE50 VT, PM620, PM622, PL61, PL83
- Compactors: 834K, CS-533C, CS-563E, CS54B, CB-44B, CS74B, CB-14B, CP11 GC, CP12 GC, CS11, 824K, 825K, CS12, CB-434D, CS-54, CB-534D, CS68B, CS12 GC, CS-56, CS-583D, CB-14, CS56B, CP54B, CP56B, CS78B, 816, 814, 815, CS79B, CB10, CS64B, CS-533E, CS-54B
- Engines: C27, C32, C175-16
- Excavators: 320D2, 329D, 329D2 L, 349D2 L, 390D L, 320D, 329D2, 308D, 303, 326D2, 326D2 L, 303.5E2 CR, 374D L, 336D2, 336D, 349D, 349D2, 330D L, 374, 349F L, 320D2 L, 312C, 311D LRR, 324D, 330D2, 336E LH, 312C L, 336E, 336F L XE, 314C, 314D CR, 315D L, 324D L, 312D2, 320E, 315C, 325C, 336D L, 330D2 L, 323D2 L, 637G, 345C, 6015B, 434F2, 345D L, 345B, 416E, 6060, 349E L VG, 621G, 365B L, 621K, 621H, 390D, M325D L MH, 352, 350, 323, 318D2 L, 318D2, 120 GC, 3516B, 302.7CR, 320C, 329E, 325B L, 330D, 323D L, 325D, 312D L, 328D LCR, 320D FM, 320D2 GC, 320B, 320D RR, 320D L, 329D L, 325D L, 325C L, 395, 349, 350MHPU, 3512C, 6040, 355, 428F, 365C, 385C L, 330C L, 312D, 313D, 313D2, 432, 312D2 GC, 350 L, 385C, 6020B, 365B, 365C L, 6015, 345 GC, 336D2 L, 312D2 L, 312E L, 330C, 314D LCR, 637K, 311C, 323D, 320D3, 318D L, 637E, 330 L, 323D2, 312E, 385B, 349D L, 336E H, 345C L, 326D L, 320D GC, 385C FS, 303CR, 303.5CR, 6030, 336F, 345D, 349E L, 3101
- Asphalt Pavers: AP300F, AP355F, AP655F, AP-600D, AP655F L
- Skid Steer Loaders: 262D, 236, 299D3 XE, 246D3, 24, 289D3, 236D, 272D3 XE, 272D3, 259D3, 262D3, 246D, 313D2 LGP
- Motor Graders: 140G, 16M, 120, 140H, 12K, 14M, 140 GC, 120H, 18, 16, 14, 12H, 160K, 140K, 16M3, 16H, 316F, 349 GC
- Wheel Excavators: IT14G, M320D2, M320, M322D, M315D, M315, M315D2, M313D, MD6250, M317D2, MD6310, MD6200, M315GC
- Dozers: D11R, D7E, D6R, D9R, D5K2 XL, D6N, D1, D7, D7R II, D8, D10R, D3K2 LGP, D6K2, D9, D8T, D11T, D6T, D10T2
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 303.5D, 307, 303.5E, 307B, 303.5C, 307D
- Wheel Loaders: 950H, 980G, 988K, 972H, 928G, 966H, 906K, 924GZ, 950G, 980H, 926M, 962G, 972G, 924K, 966K, 990H, 988H, 988G, 988F, RM400, 966, 980, R2900 XE, 972L, 924HZ, 938K, 928HZ, 938M, 992C, M314, R1700 XE, 834, 966L, 980L, RM500B, 950, 910, 966F, 992D, 836, 986H
- Off-Highway Trucks: 797F, 745C, 794 AC, 740, 735, 725C2, 773F, 796 AC, 770G, 777D, 793D, 785, 789D, 771D, 773D, 725, 785D, 730, 793F, 793, 798 AC, 745, 789, 740 GC, 777E, 740B, 772G
