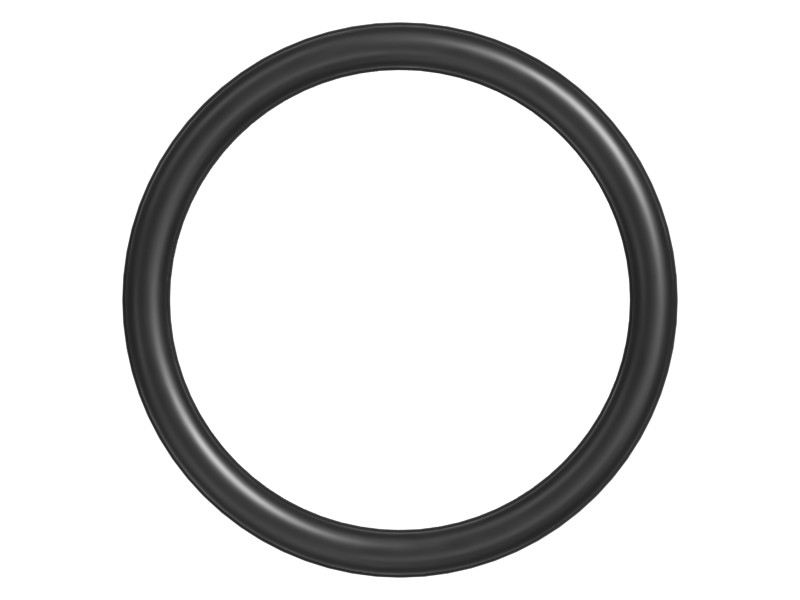

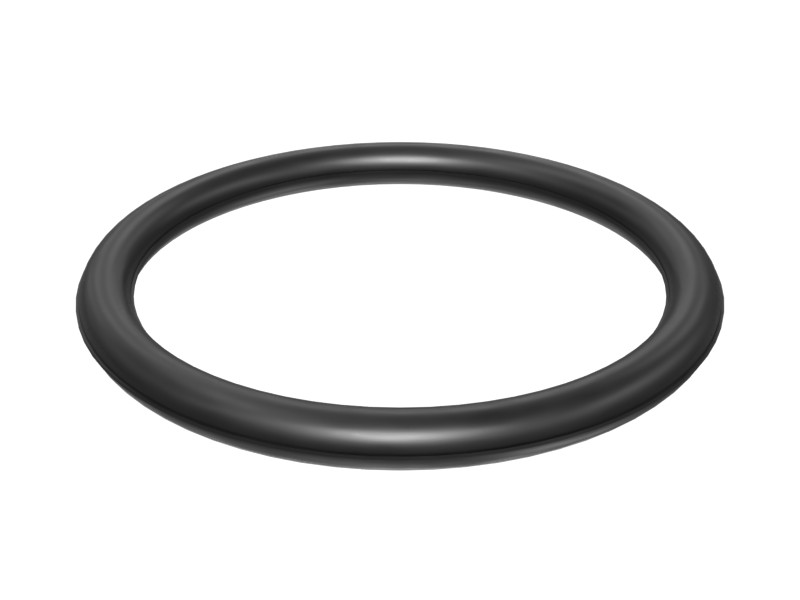

6V-9746 1.78 x 18.94 mm 90A NBR O-Ring
Cat® O-ring prevents leaks in hydraulic systems by forming a tight seal between two surfaces.
Description
OD-controlled O-rings are used in sealing applications where the seal outside diameter is the critical dimension.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat® seals protect your investment.
Applications
OD-controlled O-rings are used in many static and dynamic joints in Cat machines and engines, including ORFS (O-Ring Face Seal) and STOR (Straight Thread O-Ring) couplings and adapters.
Specifications
| Seal Type | ORFS |
|---|---|
| Fitting Size | 1-3/16-12 in |
| Polymer | NBR (Nitrile butadiene) |
| Material Hardness | 90A |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Inside Diameter | 18.94 mm (0.746 in) |
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
Compatible Equipment
- Generator Sets: G3516, 3516C, G3516C, C9, 3406B, 3512B, 3406C, C4.4, C7.1
- Track Loaders: 972, 963, 963D, 993, 953D, 826H, 824G, 816F, 834H, 826G, 824C, 995, 826K, 953
- Cold Planers: PL72, PL87, TH360B, PL61, PL83, SE50 VT, PM620, PM622
- Compactors: 834K, CB-335D, 825K, 824K, CS7, CP12 GC, CP11 GC, CS-56
- Engines: C32, C27, C18, C175-16
- Excavators: 374D L, 349D, 349D2, 320D, 320D2, 329D, 349D2 L, 306E2, 336D, 305, 303C CR, 336D2, 390D L, 308D, 305C CR, 306E, 308E, 303, 330, 3456, 390F L, 330D L, 305E2 CR, 316 GC, 313 GC, 313, 320D L, 621K, 330D2, M325D L MH, 336, 326, 305 CR, 315 GC, 352, 350, 345C, 385C, 345C L, 365C, 385C FS, 416E, 349D L, 385C L, 365C L, 325C, 325D, 329D L, 312D L, 323D L, 312C, 312D, 325D L, 314C, 320C, 320D FM, 320E, 311B, 324D L, 330C L, 320D RR, 311C, 315D L, 328D LCR, 314D CR, 330C, 336E L, 313D, 330D, 315C, 326D L, 336D L, 330 L, 336E H, 325B L, 324D, 312D2 L, 311D LRR, 325B, 657G, 637G, 637E, 365B, 345D, 349E, 3512C, 350 L, 385B, 336E LH, 314D LCR, 329E, 312D2 GC, 323D2 L, 329E L, 349E L, 318D2 L, 320B, 313D2, 621G, 323D, 312D2, 345D L, 320D2 L, 336D2 L, 336E, 621H, 320D GC, 312E, 3516B, 318D L, 345B, 3508B, 325C L, 312C L, 333, 315, 320, 320 GC, 323, 355, 120 GC, 333 GC, 326 GC, 340, 330GC, 323 GX, 320 GX, 323 GC, 365B L, 330 GC, 325, 312 GC, 313 GX, 428F, 320D2 GC, 320C L, 330B, 3516E, 350MHPU, 340D L, 340D2 L
- Asphalt Pavers: AD30
- Skid Steer Loaders: 236D, 313D2 LGP, 232D, 236B3, 246D, 226B3, 226B, 262C, 262D, 216B3, 246C, 279C, 236, 262D3, 239D3, 242D3, 272D3 XE, 272D3, 246D3, 249D3
- Motor Graders: 140H, 14M, 120H, 12H, 140K, 160K, 16M, 140G, 16H, 349 GC, 14
- Wheel Excavators: IT14G, M315D, M313D, MD6310, M322D, M315, M315GC
- Dozers: D10T, D11N, D11T, D6R III, D7R II, D6R II, D6T, D5G, D6N, D9R, D8T, D10R, D5M, D7E, D5K LGP, D7H, D6R, D10N, D5H, D5K XL, D5N, D8L, D8R, D10T2, D3K2 LGP, D6T LGP, D7G2, D9N, D9T, D8N, D7R, D4G, D9L, D6M, D3G, D7G, D8, D5K2 XL, D7, D4E
- Mini Excavators: 308, 303.5E, 303.5C, 307B, 305.5, 307D, 306, 307, 305.5E, 303.5D
- Wheel Loaders: 988H, 988K, 966H, 924GZ, 992C, 992D, 950H, 986H, 988F, 950, 972H, 928G, 980G, 980H, 966F, 924HZ, 950G, 928HZ, 990H, 972G, 962G, 924K, 966, R1700G, 988G, 938K, 836
- Off-Highway Trucks: 793, 725C2, 772G, 785D, 797F, 775G, 770G, 789D, 777, 740, 773F, 735, 785, 730, 725, 777D, 789, 796 AC, 771D, 793D
