Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed specifically for particular applications based on size, strength, clamp load and past performance. This is information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Attributes
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength & Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications

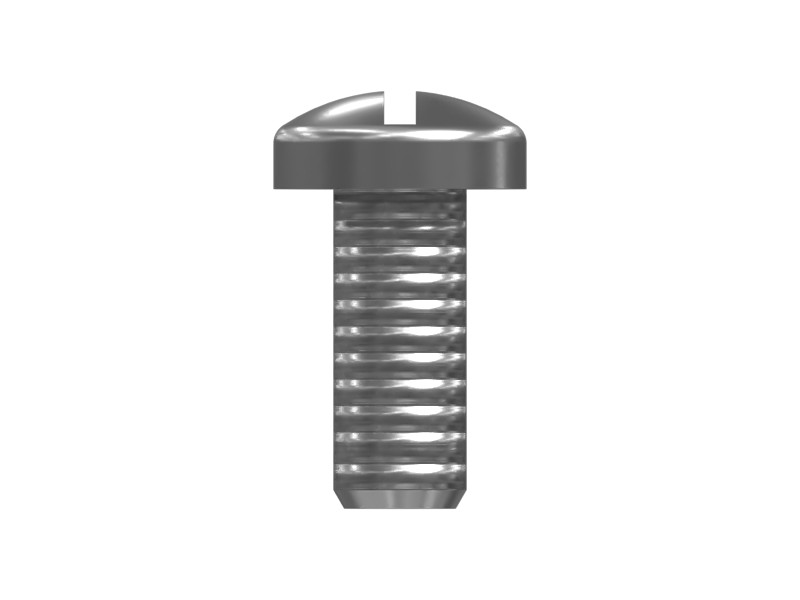

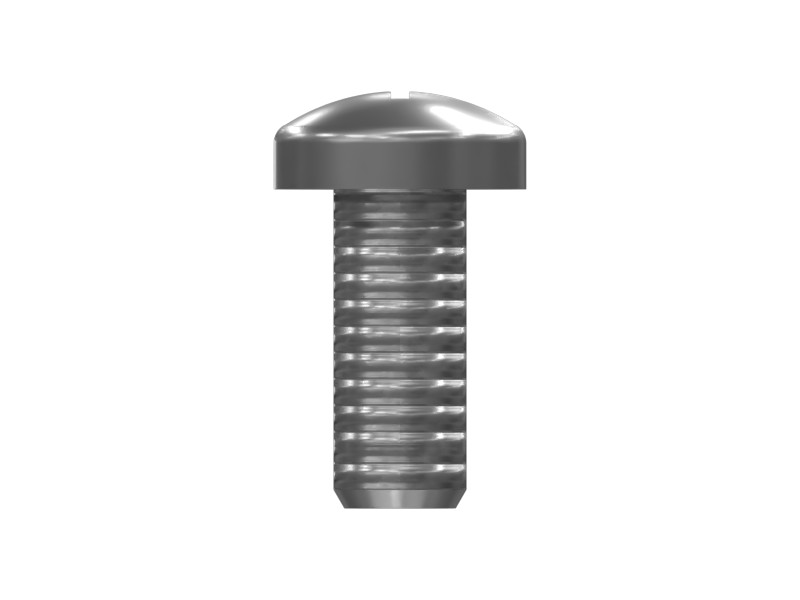

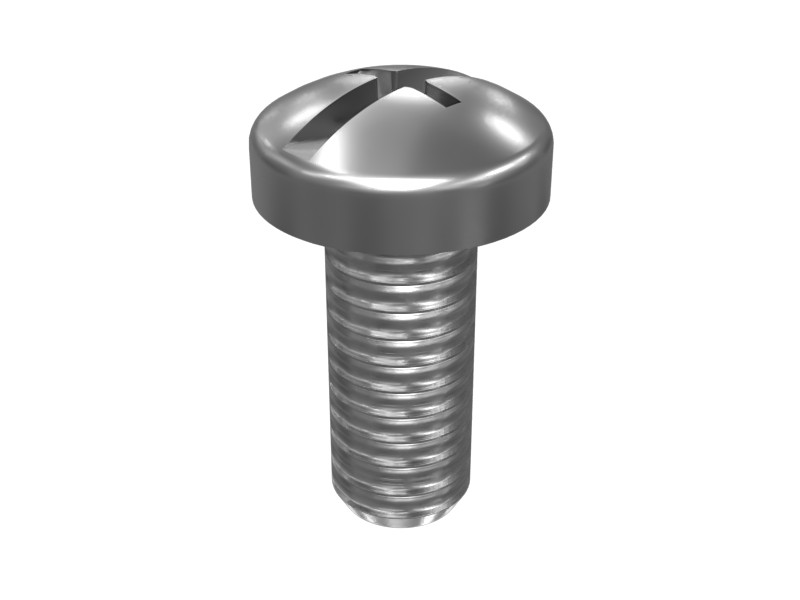

| Bolt Type | Rounded Head (Pan) |
|---|---|
| Class or Grade | ISO 898-1 Class 4.8 |
| Bolt Length | 12 mm (0.472 in) |
| Thread Size | M5 mm (0 in) |
| Thread Direction | RH |
| Coating | Zinc Electroplated |
| Drive Chain | #2 in |

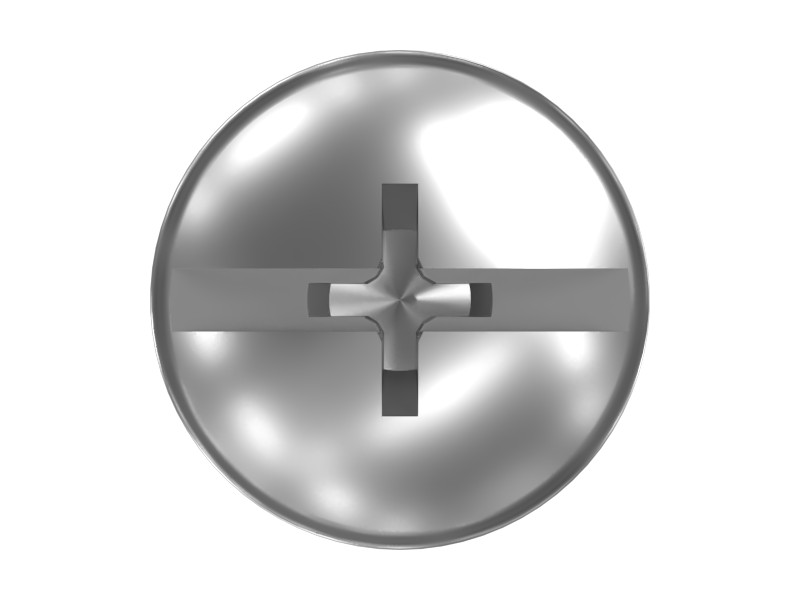

| Groove Type | Phillips + Slotted |
| Handle Length | 1.6 mm (0.063 in) |
| Head Diameter | 9.5 mm |
| Head Height | 3.7 mm |
| Head Type | Oil Pan |
| Length | 12 mm |
| Locking Feature | Not Specified |
| Material | Carbon Steel |
| Screw Type | Machine Screw |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
Compatible Equipment
- Generator Sets: 3512B, 3406C, 3406B, C3.3DE33E0, C7.1DE200E, C4.4, C2.2DE18E3, C4.4DE88E0, C9, C3.3DE50E0, C7.1, G3516, DG30
- Track Loaders: 953, 963, 824C, 816F
- Compactors: CB-564D, CB-534D, CB-434D, CS-583D, CS-563E, CS-533C, C-15, C-9, CS-54B
- Engines: C15, C32, C13, C6.6, C18, C175-16
- Excavators: 329D, 336D2, 320D, 349D2, 390D L, 390F L, 349D2 L, 3456, 374D L, 336D, 329D2 L, 3126, 308D, 326D2 L, 326D2, 303, 305, 374F, 329D2, 349D, 349F L, 330D L, 374, 350, 3516E, 350MHPU, 329D L, 340, 352, 325, 336D2 L, 314C, 320 GX, 336, 385C FS, 365C, 349D L, 3508B, 345D, 385C, 345C, 350 L, 345D L, 3516B, 374F L, 385C L, 390D, 365B, 340D2 L, 385B, 345 GC, 365B L, 345C L, 3512C, 349E L VG, 313F LGC, 314D CR, 325B, 336D L, 325B L, 325D L, 314D LCR, 320D FM, 320B, 311B, 301.8, 336 GC, 330B, 315D L, 330 L, 301.6, 312D, 330D2 L, 325C, 323D L, M325D L MH, 365C L, 390F, 324D, 324D L, 336D2 GC, 349, 325D, 330D2, 311C, 320C, 323 GX, 355, 335, 315F LCR, 349E L, 330D, 345B
- Asphalt Pavers: AP655F, AP300F, AP355F
- Skid Steer Loaders: 226B
- Motor Graders: 140G
- Wheel Excavators: M315D, M313D, IT14G, M315, M320, M322D, M320D2
- Dozers: D4E, D6R II, D6T, D3G, D6R, D6R III, D6T LGP, D7R, D5H, D10N, D11R, D10R, D7H, D9R, D7R II, D7G, D5G, D8R, D11N, D8N, D4G, D9T
- Mini Excavators: 307D, 307B, 301.5, 307, 307C, 303.5
- Wheel Loaders: 980H, 972H, 950H, 966F, 966H, 928G, 992C, 836, 992D, 924GZ, 988F
- Off-Highway Trucks: 796 AC, 789D, 794 AC, 789, 7495, 785, 777, 793, 798 AC
