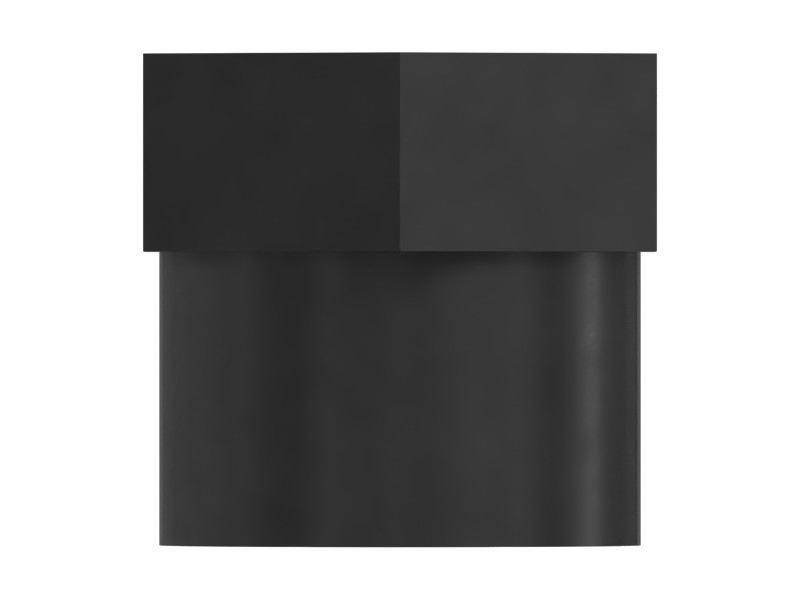

6V-9510 O-Ring Face Seal Hex Head Plug
Cat® 26.99 mm hex size O-ring face seal plug shuts off hydraulic hose connections to prevent leaks
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Plugs can retain oil or air inside a tank or component.
Features
Cat® plugs are designed to provide an effective seal that prevents leaks after installation.
Recommended Applications:
Cat plugs are designed for installation in Cat tanks or air reservoirs and their components.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Thread Scribe Size | -10 |
| Length | 26 mm (1.3 in) |
| Height | 27.94 mm (1.1 in) |
| Thread Size (in – TPI) | 1 – 14 in |
| Width | 27.94 mm |
| Transmission and Hydraulic Oil Compatible Seals | 7J-9108 (1-14) |
| Oil and Fuel Compatible Seals | 228-7091 (1-14) |
| Coolant and DEF Compatible Seals | 6V-5138 (1-14) |
Compatible Equipment
- Track Loaders: 994K, 992, 995
- Cold Planers: PM-200, SE50 VT
- Excavators: 374F, 305C CR, 303C CR, 306E, 374, 6020B, 390F, 6060, 621H, 302.7CR, 303CR, 303.5CR, 352, 374F L, 395, 320B, 336D L, 320C, 325B L, 313D2, 6040
- Asphalt Pavers: AP655F, AP-600D, AP655F L
- Skid Steer Loaders: 216B3
- Wheel Excavators: MD6250, M320, MD6310, M315, M315GC
- Compactors: CS-54B
- Dozers: D3K2 LGP, D5K2 XL, D1
- Mini Excavators: 308, 305.5, 303.5C, 307, 305.5E, 306, 307B, 303.5D, 310
- Wheel Loaders: 950L, 966F, M314, 962L
- Off-Highway Trucks: 793F, 796 AC, 794 AC, 789D, 793D, 793, 798 AC
Additional information
| Machine Model | 216B3, 302.7CR, 303.5C, 303.5CR, 303.5D, 303C CR, 303CR, 305.5, 305.5E, 305C CR, 306, 306E, 307, 307B, 308, 310, 313D2, 320B, 320C, 325B L, 336D L, 352, 374, 374F, 374F L, 390F, 395, 6020B, 6040, 6060, 621H, 789D, 793, 793D, 793F, 794 AC, 796 AC, 798 AC, 950L, 962L, 966F, 992, 994K, 995, AP-600D, AP655F, AP655F L, CS-54B, D1, D3K2 LGP, D5K2 XL, M314, M315, M315GC, M320, MD6250, MD6310, PM-200, SE50 VT |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
