Description
Cat® tube connection fittings meet the highest standards of quality and reliability. These parts are manufactured to tight tolerances to ensure leak-free connections. Every Cat tube connection fitting meets or exceeds applicable industry standards for working pressure, assembly torque capability and corrosion protection, keeping machines durable and up and running.
Features
- Fluid-conveying tube connection component
- Meets or exceeds industry-standard part performance and provides a leak-free connection

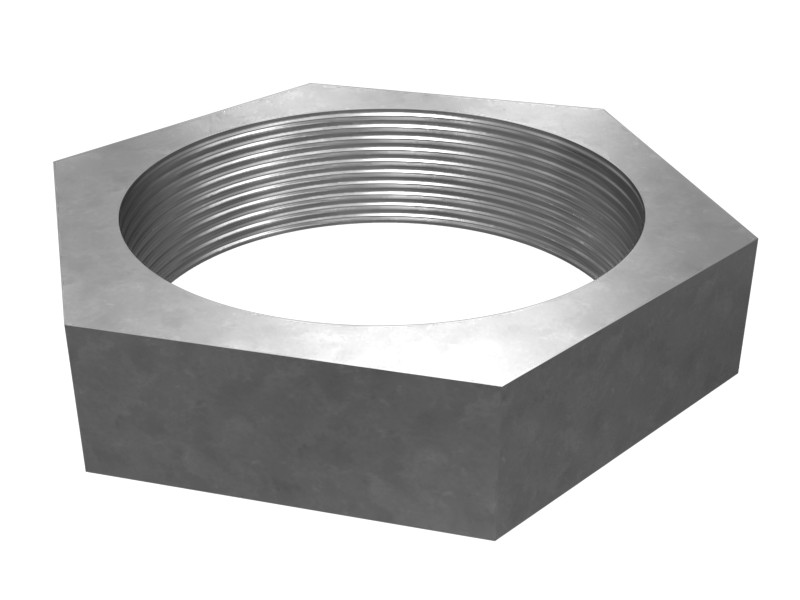

- The image provided is for reference only. The part construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Tube connection fitting parts are compatible only with other parts designed for the same type and size of connection. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Thread Direction | RH |
| Drive Chain | 44.45 mm (1.75 in) |
| Material Description | Plated Steel |
| Class or Grade | None |
| Thread Size (Diameter × Pitch) | 1.4375×12 mm |
| Coating | None |
| Thread Size | 1.4375 mm (0.057 in) |
| Thickness | 10.5 mm (0.413 in) |
| Transmission and Hydraulic Oil Compatible Seals | 5K-9090 (1-7/16-12) |
| Oil and Fuel Compatible Seals | 228-7093 (1-7/16-12) |
| Nut Model | Hex |
| Coolant and DEF Compatible Seals | 415-2887 (1-7/16-12) |
| Thread Size (in – TPI) | 13/9-12 in |
