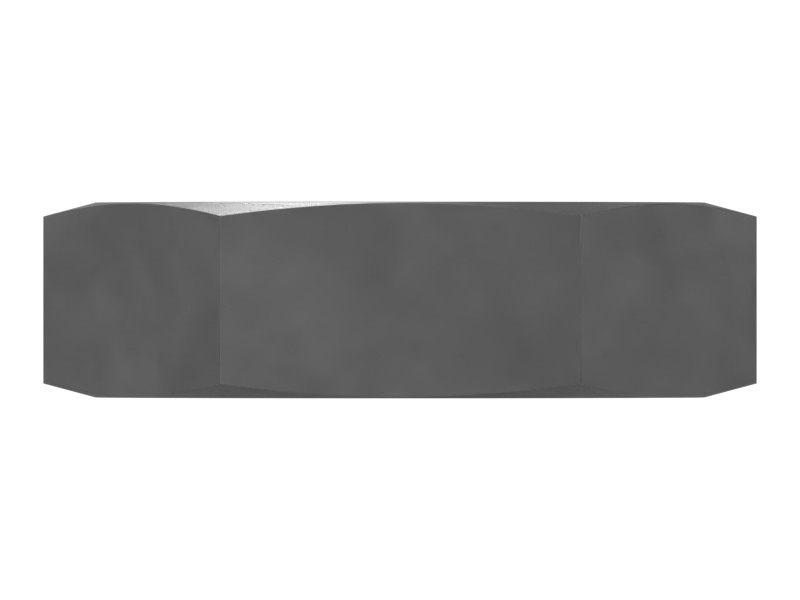

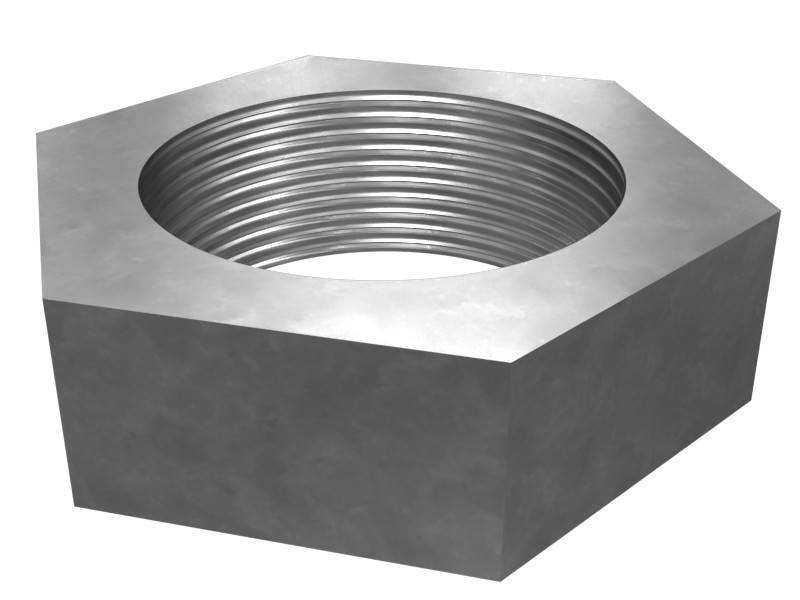

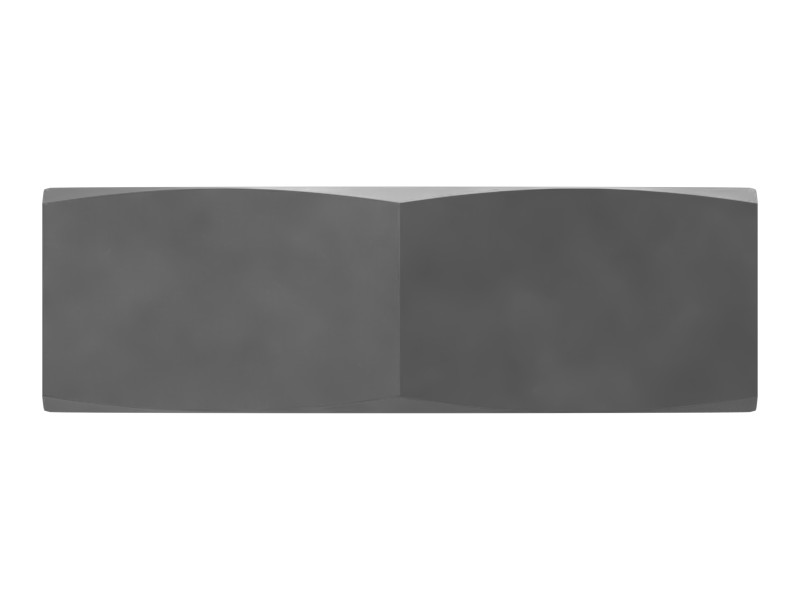

6V-9169 13/16-16 Hex Lock Nut
O-Ring Face Seal Plug Lock Nut
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® tube connection fittings meet the highest standards of quality and reliability. These parts are manufactured to tight tolerances to ensure leak-free connections. Every Cat tube connection fitting meets or exceeds applicable industry standards for working pressure, assembly torque capability and corrosion protection, keeping machines durable and up and running.
Features
- Fluid-conveying tube connection component
- Meets or exceeds industry-standard part performance and provides a leak-free connection
- The image provided is for reference only. The part construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Tube connection fitting parts are compatible only with other parts designed for the same type and size of connection. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Thread Size | 0.8125 mm (0.032 in) |
|---|---|
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | 13/16×16 mm |
| Class or Grade | None |
| Coating | None |
| Material | Carbon Steel |
| Material Description | Plated Steel |
| Drive Chain | 28.6 mm (1.126 in) |
| Transmission and Hydraulic Oil Compatible Seals | 6V-8398 (13/16-16) |
| Thickness | 9 mm (0.354 in) |
| Oil and Fuel Compatible Seals | 228-7090 (13/16-16) |
| Coolant and DEF Compatible Seals | 180-8424 (13/16-16) |
| Nut Model | Hex |
| Thread Size (in – TPI) | 4/5-16 in |
Additional information
| Part Source | Genuine OEM |
|---|
