Description

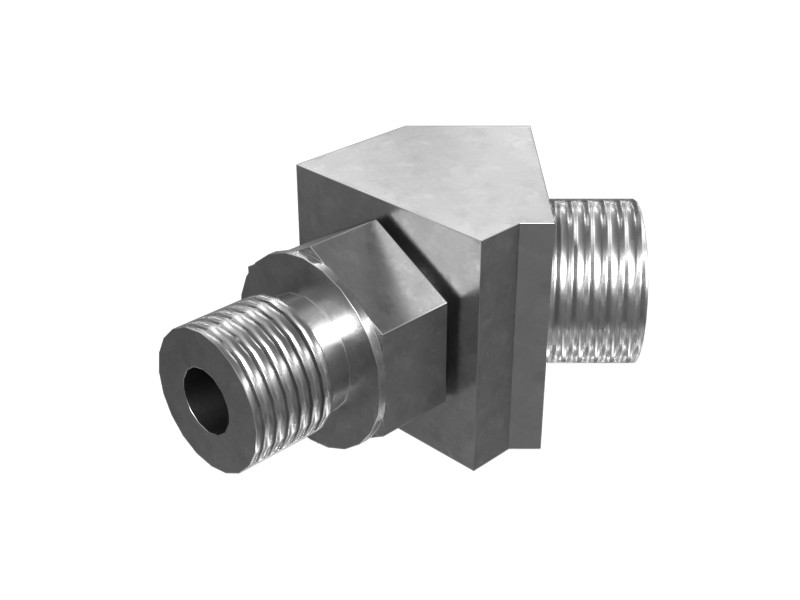

Elbow adapters are used to change the direction of flow to various angles.
Features
Cat® elbow adapters are designed to resist leaks and last in demanding applications.
Recommended Applications:
Cat elbow adapters are used in a wide range of hydraulic applications, from hydraulic oil systems to brake systems.
Specifications
| Height | 17.78 mm (0.7 in) |
|---|---|
| Material Description | Plated Steel |
| Width | 35.56 mm |
| Length | 58.42 mm (2.3 in) |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Material | Carbon Steel |
| Coolant and DEF Compatible Seals | 6V-3250 (9/16-18), 6D-7128 (11/16-16) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18), 228-7089 (11/16-16) |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18), 6V-8397 (11/16-16) |
Compatible Equipment
- Generator Sets: 3512E, 3516C, C9, C7.1, 3512B
- Track Loaders: 982, 972, 834H, 953, 826H, 990K, 963K, 963, 953K, 826G, 995, 973K, 824G, 824C, 963D, 993, 992
- Cold Planers: PL72, PL83, PM622, PM620, PL61, PL87, SE50 VT, SE60 VT XW
- Compactors: CS-583D, CC-34B, CB-36B, CB-34B, CB-24B, 834K, CB-564D, CS-533C, CB-534D, C13B, CB-335D, CB-334D, CW-16, CB-44B, CB2.7, CB2.5 GC, CC2.7 GC, CB2.7 GC, CB2.5, CB2.9, CB10, C-9
- Engines: C7, C13, C15, C32, C18, C175-16
- Excavators: 374D L, 390F L, 390D L, 349D, 320D, 320D2, 330, 349D2, 349D2 L, 326D2, 374F, 336D2, 336D, 308D, 329D, 303C CR, 307.5, 326D2 L, 3126, 305, 303, 303.5E2 CR, 329D2, 305C CR, 307E, 308E, 329D2 L, 374, 316 GC, 313, 313 GC, 349F L, 330D L, 305E2 CR, 345C, 385C L, 349E L, 365C L, 349D L, 349E L VG, 345D, 434F2, 621G, 365C, 385C FS, 345D L, M325D L MH, 395, 349, 352, 345 GC, 336D L, 315, 312 GC, 336, 312 GX, 323, 316 GX, 325, 320D3 GC, 340, 350, 350MHPU, 330GC, 355, 318D2, 336E L, 336F L, SE60 V XW, 320D FM, 3508B, 318D2 L, 320 GC, 416F2, 315D L, 313F LGC, 312D L, 312D, 311D LRR, 314D LCR, 323 GX, 330 GC, 333, 320 GX, 326 GC, 320, 326, 637G, 637K, 385C, 345B, 365B, 352F, 374F L, 385B, 621K, 365B L, 349E, 345C L, 3516E, 302.7CR, 637E, 303.5CR, 303CR, 313D2, 315 GC, 320D3, 336 GC, 6015, 336F L XE, 313F L, 312F, 657G, 350 L, 416E, 621H, 6015B, 340D L, 390F, 390D, 330D2, 335, 326GC, 325D, 325D L, 311C, 323D L, 320D L, 312E, 340D2 L, 428F, 312E L, 314D CR, 336E LH, 120 GC, 336D2 L, 315C, 320D RR, 318D L, 330C, 312D2, 325C, 324D, 324D L, 320C, 329D L, 330D, 312D2 L, 335F LCR, 336F, 336D2 XE, 314C, 328D LCR, 312C L, 329E, 336F LN, 312C, 329E L, 323D, 320D2 L, 336D2 GC, 323D2 L, 330D2 L, 320D GC, 330C L, 313D2 GC, 325C L, 336E, 313D, 301.6, 320E, 325B L, 320D2 GC, 312D2 GC, 313D2-GC, 323D2, 320B, 330 L, 325B, 336E H, 336E LN, 330B, 326D L, 301.8, 320C L, 315F LCR, 323GC, 6040, 3101, 305 CR, 432, 3516B, 3512C
- Asphalt Pavers: AP355F, AP300F, AP655F, AP655F L, AP-600D, AD63, AD45
- Skid Steer Loaders: 236D3, 226D3, 232D3, 239D3, 272D3 XE, 299D3 XE, 272D3, 249D3, 246D3, 262D3, 24, 3126B, 289D3, 216B3, 232D, 313D2 LGP, 226B3, 236D, 262D, 246D, 236B3, 242D3
- Motor Graders: 14, 18, 16M3, 16, 140 GC, 120, 316F, 349 GC, 16M, 12H, 120H, 160K, 140H, 140G, 14M, 12K, 140K
- Wheel Excavators: M313D, IT14G, M322D, M315D, M315, M320D2, MD6310, M317D2, MD6200, M320, M315D2, MD6250, M315GC
- Dozers: D11R, D11N, D11T, D10N, D10R, D6R II, D7R II, D5H, D5G, D5N, D6R, D5M, D6T, D6R III, D6N, D7R, D6T LGP, D5K LGP, D7H, D4G, D9L, D8L, D7E, D8, D8N, D9N, D10T, D11, D8T, D3G, D6R XL, D9T, D6M, D6R LGP, D7, D9, D9R, D5K XL
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 310, 306, 308, 307D, 302CR, 307C, 303.5D, 305.5E, 303.5E, 303.5C, 303.5, 305.5E2, 308.5, 305E2, 306.5, 301.7CR
- Wheel Loaders: 988H, R1700K, 950H, 980, M314, R1700 XE, 950L, 926M, 966L, 972L, 988K, 950G, 972H, 980H, 966, 950, 834, 950 GC, 962L, 980G, 966K, 928HZ, 972G, 928G, 966H, 924HZ, 966F, 962G, 988G, 924K, 938M, 938K, RM400, 836, 986H, 924GZ, R2900 XE, 980L, 906K, R1700G, 992D
- Off-Highway Trucks: 777E, 797F, 793F, 794 AC, 796 AC, 772G, 777, 773E, 770G, 785, 740, 789, 730, 798 AC, 775G, 773D, 725, 793D, 789D, 773, 735, 740B, 771D, 745C, 785D, 793, 725C2
