Description

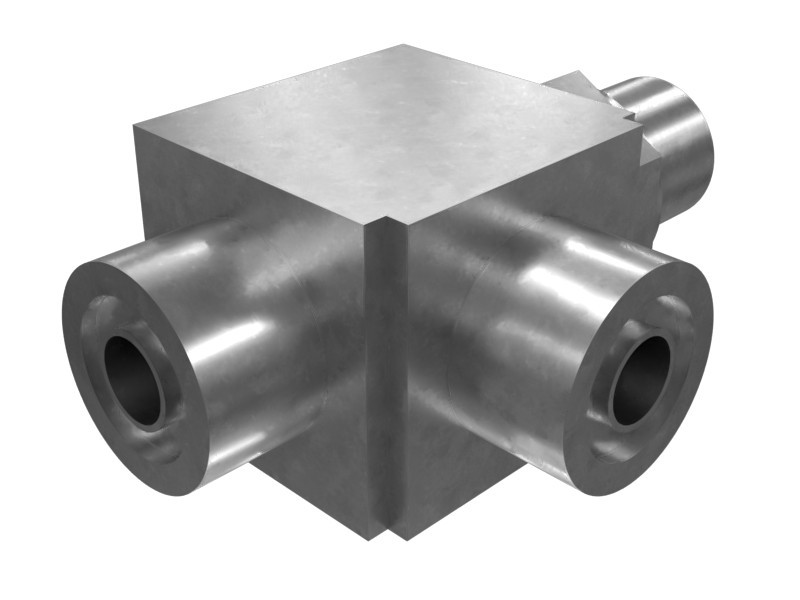

A tee adapter connects three flow passages within a hydraulic system, forming a T-shaped junction.
Features
Cat® tee adapters are built to resist leaks and last in harsh application environments.
Recommended Applications:
Cat tee adapters are suitable for a wide range of hydraulic applications, from hydraulic oil systems to brake systems.
Specifications
| Length | 63.5 mm (2.5 in) |
|---|---|
| Height | 20.32 mm (0.8 in) |
| Material Description | Plated Steel |
| Width | 38.1 mm |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Material | Carbon Steel |
| Coolant and DEF Compatible Seals | 6D-7128 (11/16-16), 6V-3250 (9/16-18) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18), 228-7089 (11/16-16) |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18), 6V-8397 (11/16-16) |
Compatible Equipment
- Generator Sets: 3512E, 3512B, G3516C
- Track Loaders: 953K, 826H, 824G, 834H, 816F, 826G, 990K, 963D, 826K, 994K, 963K, 972, 973K, 953D, 982, 963, 953, 992, 993
- Cold Planers: TH360B, PL61, PM620, PM622, PL87, PL83
- Compactors: CB-334D, CB-534D, CB2.5, 834K, 824K, 825K, CC-34B, CB-434D, CB-36B, CB-564D, CB-335D, CB2.9, CS-583D, CB-44B, CB-34B, CB2.7, 816, 815, 814, CB2.5 GC, CC2.7 GC, CB2.7 GC, CB-24B, CB10
- Engines: C32, C7, C18
- Excavators: 320D2, 336D2, 390D L, 374D L, 390F L, 320D, 329D2 L, 336D, 308D, 330, 329D2, 326D2 L, 349D2 L, 349D2, 329D, 326D2, 305C CR, 374F, 307E, 303C CR, 308E, 349D, 305, 330D L, 349F L, 313 GC, 313, 374, 316 GC, 320C, 329D L, 320D L, 325C L, 312D2, 325D L, 324D, 312D L, 312C, 311C, 336 GC, 336E, 336D L, 318D2 L, 336D2 L, 314C, 323D L, 312D, 315C, 324D L, 336E LH, 320D FM, 313D2, 336E L, 336F, 325B L, 323, 320E, 637K, 365B, 621K, 352F, 349, 385C, 345C, 390F, 385C L, 349E, 385C FS, 349E L, 345C L, 365C, 345D L, 345B, 374F L, 365C L, 349E L VG, 390D, 323D2 L, 320D2 L, 312E L, 312D2 L, 325D, 311D LRR, 315D L, 330C, 325C, 330 GC, 323D2, 336E LN, 330C L, 330D, 320D GC, 320, 314D LCR, 330 L, 326D L, 314D CR, 340, 336D2 XE, 320D2 GC, 330D2 L, 657G, 637G, 385B, 345D, 352, 6015B, 336, 315 GC, 329E L, 326, 320 GC, 325B, 336F L, 330D2, 328D LCR, 320B, 313F L, 318D L, 312C L, 312D2 GC, 313D, 336E H, 350 L, 349D L, 336F L XE, 336F LN, 323D, 312E, 313D2 GC, 329E, 336D2 GC, 365B L, 345 GC, 340D2 L, 340D L, M325D L MH, 320D3 GC, 325, 6040, 320C L, 313F LGC, 313D2-GC, 330GC, 320D RR, 312F, 318D2, 333, 355, 350, 395, 335, 330B, 335F LCR, 320D3, 305 CR, 315, 3508B, 432, 320 GX, 323GC, 315F LCR, 312 GC, 3101
- Asphalt Pavers: AP655F, AP300F, AP-600D, AP655F L
- Skid Steer Loaders: 236D3, 236D, 226B3, 236B3, 259D3, 226B, 24, 242D3, 232D3, 216B3, 313D2 LGP, 246C, 246D, 226D3, 262D, 236, 232D, 262C, 279C, 239D3, 272D3 XE, 299D3 XE, 272D3, 249D3
- Motor Graders: 140K, 140G, 12K, 160K, 120, 140 GC, 316F, 14
- Wheel Excavators: MD6250, M315D, MD6310, M315, M320, IT14G, M313D, MD6200, M317D2, M315D2, M322D, M320D2
- Dozers: D11R, D10N, D10T2, D6T, D9R, D6R III, D7R II, D11T, D10T, D10R, D6R II, D8L, D6K2, D6N, D8R, D7R, D8T, D8N, D6R, D6T LGP, D6R XL, D8, D9L, D9T, D4, D9, D10, D9N, D6R LGP, D11
- Compact Track Loaders: 299D3
- Mini Excavators: 307C, 307, 303.5C, 307D, 307E2, 306, 308E2, 306.5
- Wheel Loaders: 966H, 980H, 980G, 972L, 988F, 992C, 988H, 950H, 928G, 988K, 926M, 924K, 972H, 938M, 950G, 966L, 962L, 966F, 972G, 938K, 966K, 924HZ, 950L, 962G, 928HZ, 906K, 924GZ, R2900 XE, R1700K, 950, 990H, 950 GC, 988G, 992D, 986H, RM500B, 966, M314, 980, R1700 XE, 910, RM400, 836, 834, 980L
- Off-Highway Trucks: 793F, 725, 777D, 785D, 740, 730, 797F, 789D, 735, 793, 794 AC, 796 AC, 740B, 773F, 725C2, 793D, 798 AC, 745, 785, 789, 777, 740 GC
