Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Wetted parts
- Meets or exceeds industry-standard part performance and provides a leak-free connection

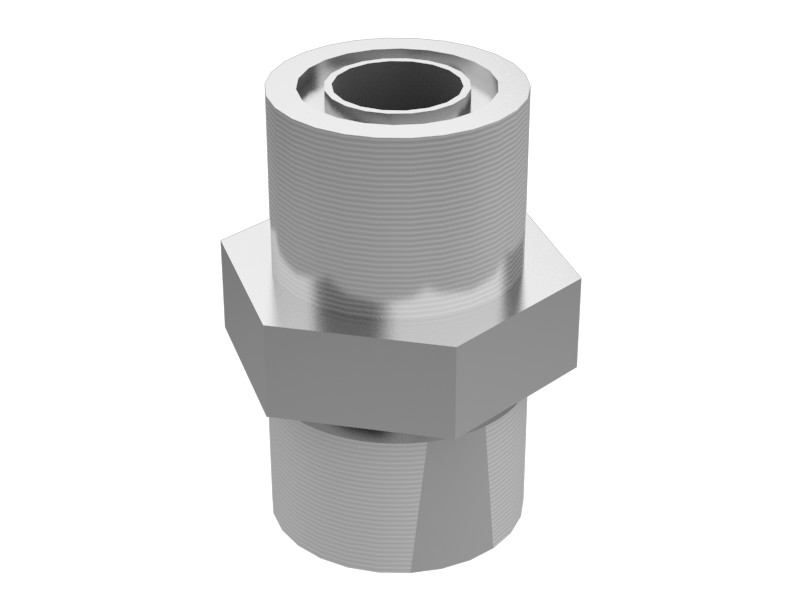

- The image provided is for reference only. The adapter construction may differ slightly from the illustration, but this part is interchangeable with the OEM part.
Applications
The adapter is designed to connect fluid-carrying hoses and rigid tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Material Description | Plated Steel |
| Coolant and DEF Compatible Seals | 6V-5063 (1-1/16-12), 6V-5138 (1-14) |
| Oil and Fuel Compatible Seals | 238-5082 (1-1/16-12), 228-7091 (1-14) |
| Transmission and Hydraulic Oil Compatible Seals | 3D-2824 (1-1/16-12), 7J-9108 (1-14) |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E
- Track Loaders: 973K, 990K, 994K, 982, 972, 995
- Cold Planers: PM620, PM622, TH360B, PL61, SE50 VT, SE60 VT XW
- Compactors: CS12, CB-36B, CW-34, CB-335D, CP54B, CS78B, CS54B, CB-34B, CS68B, CS74B, CC-34B, CP56B, CS79B, CB-44B, CS11, 816, 815, 814, CS56B, CW-16, CB10, CS-54B, CS64B
- Engines: C7, C18
- Excavators: 320D, 329D, 349D, 307.5, 320D2, 336D2, 308E, 349D2, 308D, 326D2 L, 336D, 374F, 307E, 374D L, 349D2 L, 329D2 L, 313 GC, 313, 330D L, 313F LGC, 120 GC, 312E, 311D LRR, 320D FM, 312C, 336F, 315D L, 312D, 320E, 323D L, 336F L XE, 336D L, 324D L, 312D2, 328D LCR, 325C, 365C, 349D L, 416E, 374F L, 345C, 621H, 312D L, 320D RR, 313D2, 329D L, 336F LN, 312D2 GC, 330C L, 330D2, 336E L, 312C L, 314D LCR, 313D2 GC, 324D, 318D2 L, 336F L, 313D, 320D L, 312D2 L, 313D2-GC, 315C, 315F LCR, 325D, SE60 V XW, 315 GC, 314C, 315, 6060, 313F L, 312F, 329E, 314D CR, 323D, 318D L, 336E LN, 325D L, 330C, 345C L, 365B, 345D, 365C L, 345D L, 432, 318D2, 311C, 329E L, 312E L, 320D GC, 416F2, 385C L, 428F, 6015B, 365B L, 3516B, 323D2 L, 320D2 L, 336E LH, 335F LCR, 330D, 395, 336E, 336D2 L, 301.8, 301.6, 6040, 330D2 L, 434F2, 305 CR, 385B, 3512C, 336
- Asphalt Pavers: AP-600D, AP655F, AP655F L
- Skid Steer Loaders: 246D, 262D, 246D3, 24, 3126B, 232D3, 249D3, 236, 226D3, 262D3, 232D, 216B3, 272D3, 236D, 236D3, 239D3, 313D2 LGP, 226B3, 226B, 259D3, 299D3 XE, 272D3 XE, 242D3, 246C, 289D3, 279C, 236B3, 262C
- Motor Graders: 140K, 140 GC, 120, 12K, 160K, 14, 316F
- Wheel Excavators: MD6250, M322D, M320D2, M315D, M313D, MD6200, MD6310, IT14G, M315, M317D2, M315D2, M320, M315GC
- Dozers: D8, D8T, D6N, D6M, D5H, D5G, D5N, D5M, D6K2, D5K LGP, D5K2 XL, D4G, D9T, D10T, D10R, D10T2, D10N, D3K2 LGP, D5K XL, D6T, D4, D7, D9, D11
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 308, 307D, 307, 307C, 310, 308.5, 308E2, 307E2, 305.5, 306, 307B, 301.5, 301.7CR, 302CR, 306.5
- Wheel Loaders: 980L, 950, 924K, 924HZ, 928G, 926M, 938K, M314, 988H, 988G, 938M, 906K, 966F, 990H, RM500B, 928HZ, 980, R1700 XE, RM400, 966
- Off-Highway Trucks: 797F, 740, 725C2, 785D, 793F, 773F, 789D, 740B, 796 AC, 798 AC, 793D, 735, 794 AC, 785, 789, 773
