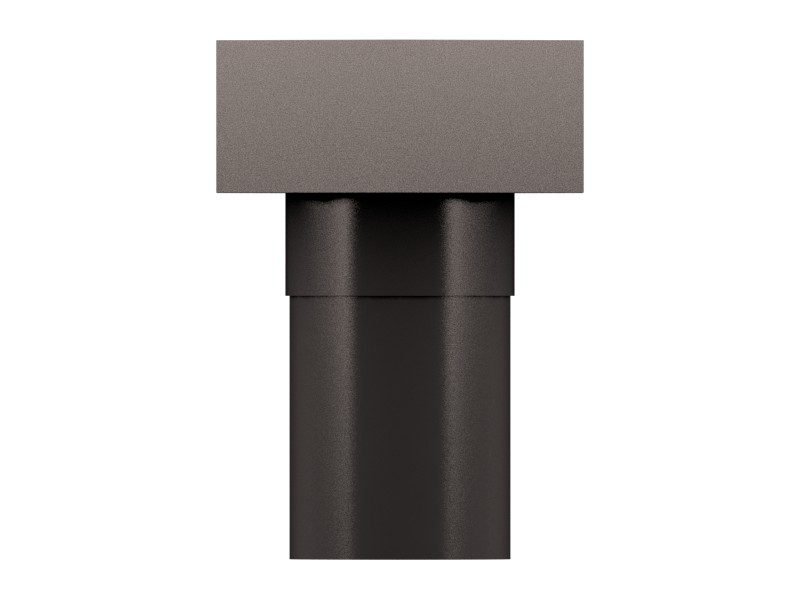

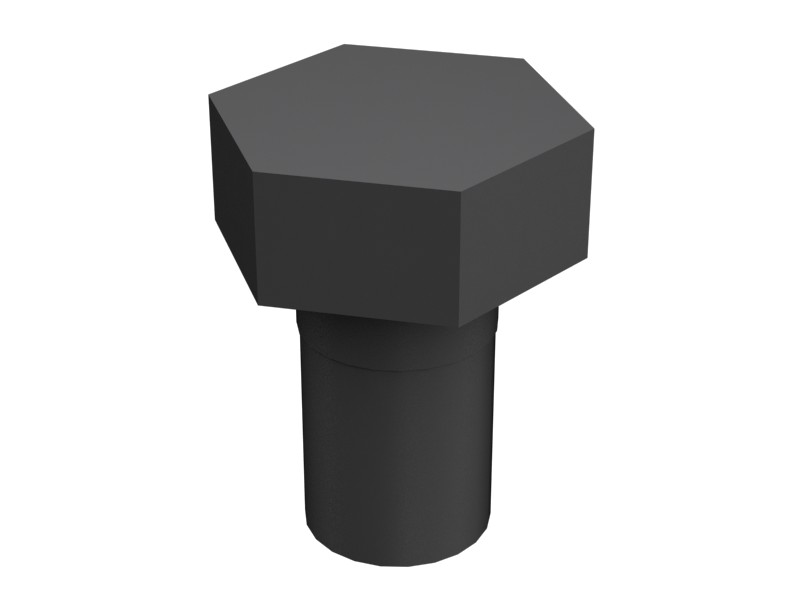

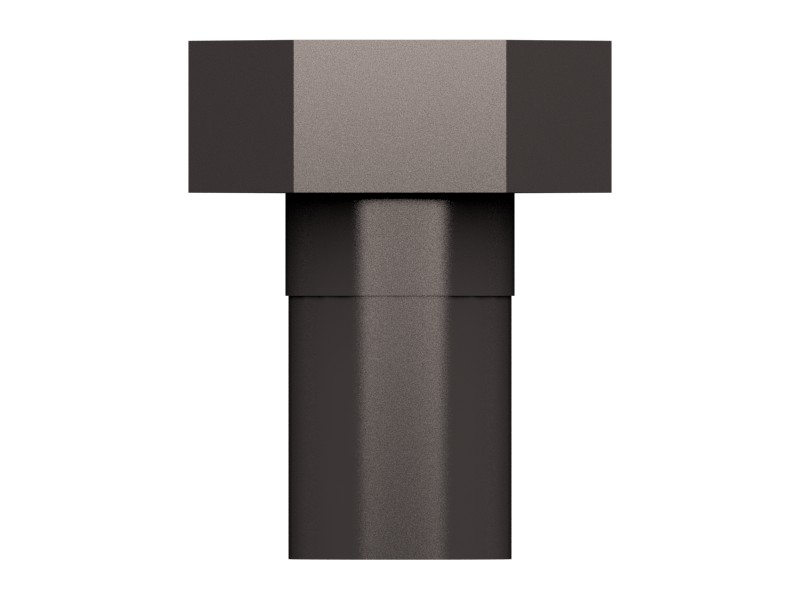

6V-8455 M10X1.5 Thread Hex Head Bolt
Cat® M10x1.5 Thread 16 mm Long Hex Head Self-Locking Bolt
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M10 mm (0 in) |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 10.9 |
| Locking Feature | Nylon Patch |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 16 mm (0.63 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 5 mm (0.177 in) |
Compatible Equipment
- Track Loaders: 824G, 826H, 826G, 826K, 993, 834H
- Cold Planers: TH360B
- Compactors: 825K, 834K
- Dozers: D10T2, D10T, D5K2 XL, D3K2 LGP, D8R
- Excavators: 657G, 432, 434F2, 416F2, 428F, 416E
- Wheel Loaders: 992K, 982M, 980M
- Off-Highway Trucks: 725C2, 789D, 730, 797F, 725, 793, 775G, 735, 789, 773, 785
- Asphalt Pavers: AD45, AD30, AD63
Additional information
| Machine Model | 416E, 416F2, 428F, 432, 434F2, 657G, 725, 725C2, 730, 735, 773, 775G, 785, 789, 789D, 793, 797F, 824G, 825K, 826G, 826H, 826K, 834H, 834K, 980M, 982M, 992K, 993, AD30, AD45, AD63, D10T, D10T2, D3K2 LGP, D5K2 XL, D8R, TH360B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
