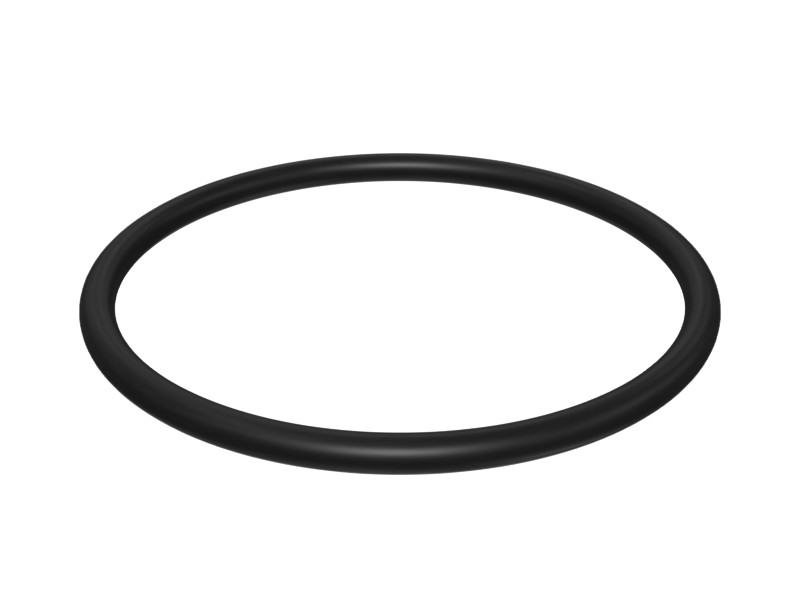

6V-8400 1.78 x 30.01 mm 90A NBR O-Ring
Cat® O-ring prevents leaks in hydraulic systems by forming a tight seal between two surfaces.
Description
OD-controlled O-rings are used in sealing applications where the seal outside diameter is the critical dimension.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat® seals protect your investment.
Applications
OD-controlled O-rings are used in many static and dynamic joints in Cat machines and engines, including ORFS (O-Ring Face Seal) and STOR (Straight Thread O-Ring) couplings and adapters.
Specifications
| Fitting Size | 1-11/16-12 in |
|---|---|
| Polymer | NBR (Nitrile butadiene) |
| Dash Size | 025 in |
| Material Hardness | 90A |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Inside Diameter | 30.01 mm (1.181 in) |
| Material | NBR – Nitrile |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 963, 995, 993, 963D, 953D, 826H, 824G, 826G, 834H, 824C
- Cold Planers: PL72, PL87, PL83, TH55-E70, PL61, PM622, PM620
- Compactors: 834K
- Engines: C7, C18, C175-16
- Excavators: 305C CR, 308E, 336D2, 336D, 320D, 349D2 L, 390F L, 306E2, 320D2, 305, 303, 308D, 329D, 303C CR, 349D, 306E, 349D2, 330D L, 305E2 CR, 621K, 340, 323D L, 315C, 325C, 328D LCR, 311B, 320E, 330C L, 336D L, 320C, 323D2 L, 324D L, 330D, 312D L, 329D L, 325D, 325D L, 637G, 657G, 345D L, 349D L, 345C, 621H, M325D L MH, 336D2 L, 312D, 312C, 324D, 320D L, 320B, 329E L, 318D L, 325B L, 336E, 320D FM, 315D L, 311D LRR, 330C, 320D2 L, 314D LCR, 313D, 320D2 GC, 318D2 L, 312D2 GC, 336E L, 329E, 314C, 312D2 L, 326D L, 320D GC, 311C, 323D, 320D RR, 345C L, 349E L, 345D, 340D2 L, 312E, 320C L, 325B, 349E, 313D2, 621G, 336E LH, 340D L, 336E H, 345B, 314D CR, 312D2, 312C L, 330B
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 14, 16M, 14M
- Wheel Excavators: M315GC, M315, IT14G, M313D, M322D, M315D, MD6310
- Dozers: D8, D10T2, D7R II, D6T, D6N, D6R, D3G, D6R II, D7R, D6T LGP, D9T, D5N, D6R III, D10T, D9R, D8N, D5G, D10N, D7H, D8R, D10R, D8T, D3K2 LGP, D5K2 XL, D7E, D4G, D9N, D7G2, D7G, D9L, D7
- Mini Excavators: 305.5E, 303.5E, 307B, 305.5, 307D, 303.5D, 306, 303.5C
- Wheel Loaders: 980H, 988K, 980G, 928HZ, 990H, 924K, 924HZ, 988H, 988F, 988G, 924GZ, 986H, 928G, R1700G, 950, 836, 938K
- Off-Highway Trucks: 793, 777, 789D, 785D, 775G, 797F, 772G, 773F, 725, 777D, 770G, 730, 789, 793D
