Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These are small internal drive screws.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Bolt Length | 6.35 mm (0.25 in) |
| Thread Size (Diameter × Pitch) | No. 6 (.138)x32 mm |
| Class or Grade | Brass Bronze Copper |
| Coating | Nickel Plated |
| Thread Size | No. 6 (.138) mm (0 in) |
| Handle Length | 1.6 mm (0.06 in) |

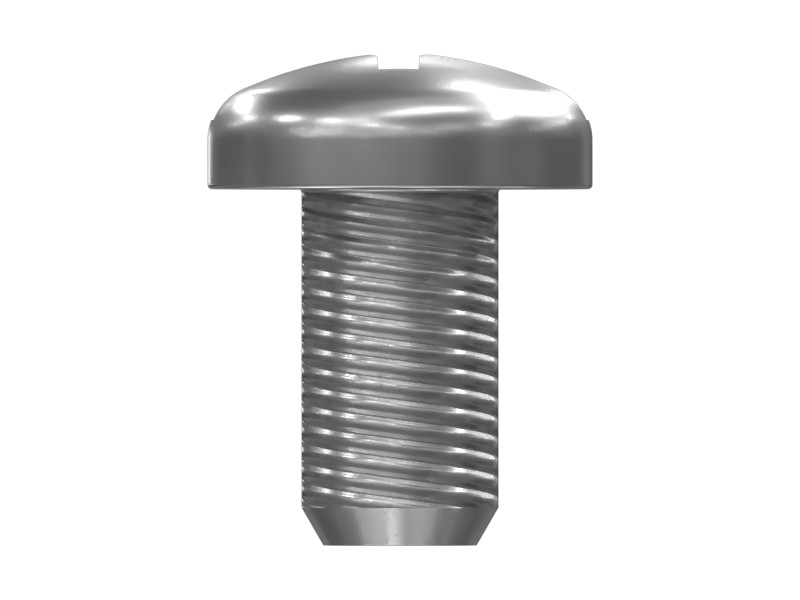

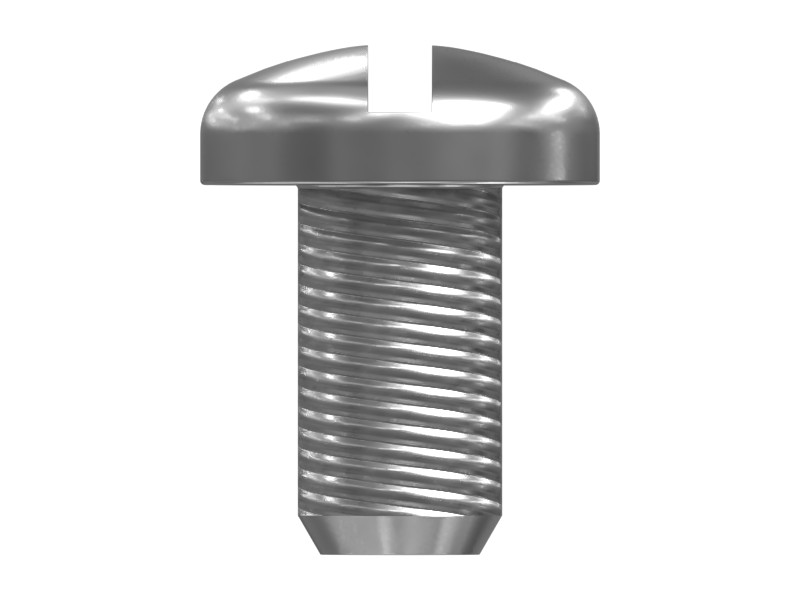

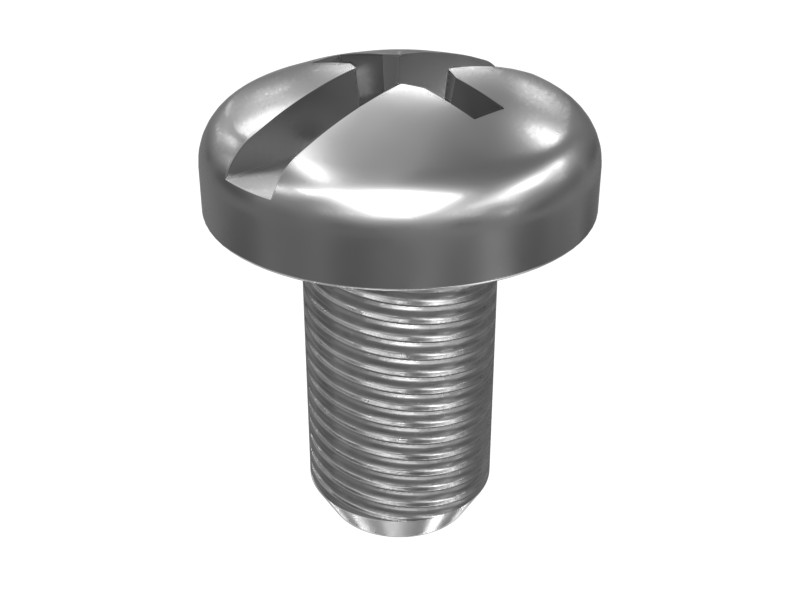

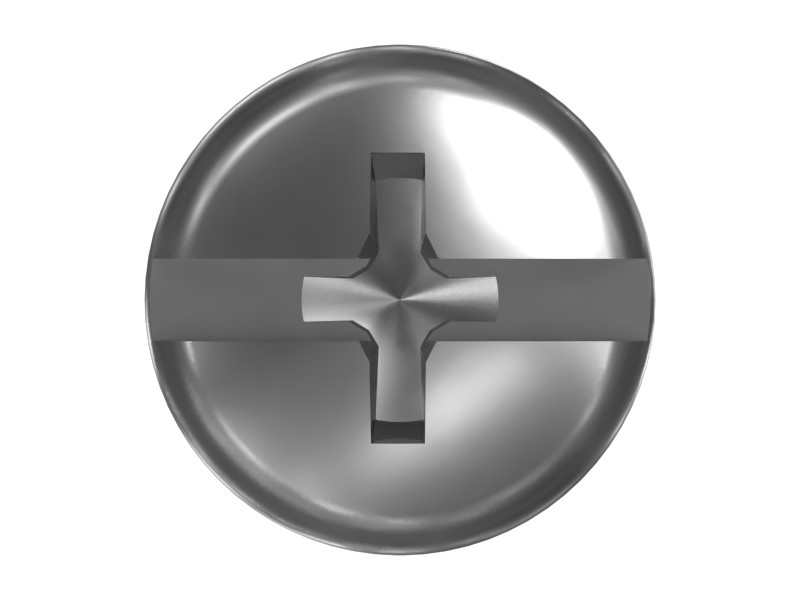

| Bolt Type | Rounded Head (Pan) |
Compatible Equipment
- Generator Sets: 3406C, 3512B, 3516C, C4.4, C3.3DE50E0, C9, C3.3DE33E0, 3406B, C2.2DE18E3, 3512E, C7.1DE200E, C7.1, G3516, G3516C, C4.4DE88E0, DG30
- Track Loaders: 824C, 824G, 953, 963, 816F, 826G, 990K
- Cold Planers: PL83, PL87
- Compactors: CB-334D, CB-335D, CS-56, CS-563E, CS-583D, CS-533C, C-9, C-15, CS-533E
- Engines: C15, C32, C27, C13, C7, C11, C18, C175-16
- Excavators: 3456, 336D, 329D, 320D, 320D2, 374D L, 349D2 L, 336D2, 349D, 349D2, 390D L, 330D L, 3516B, 330 L, 330C L, 315D L, 311B, 323D L, 325D, 320B, 324D, 323D2 L, 320D L, 336D2 L, 336D L, 329D L, 637E, 3512C, 3516E, 3508B, 385B, 621G, 345D L, 325C, 313F LGC, 325B L, 325D L, 324D L, 312D L, 637G, 349D L, 345C, 365B, 311D LRR, 320D2 L, 657G, 345C L, 365C L, 314D LCR, 330D, 312D, 330B, 365C, 345B, 385C, 6030, 385C L, 6040, 350 L, 320C, 320D FM, 325B, 323D, 345D, 390D, 365B L, 416E
- Asphalt Pavers: AP-600D, AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 140G, 3606
- Dozers: D11R, D10R, D10, D10N, D11N, D11T, D7R II, D9R, D8L, D8R, D5H, D6R II, D7H, D6M, D8T, D8N, D6T, D9N, D6R, D10T, D9L, D6R III, D9T, D6N, D6G, D8
- Mini Excavators: 307
- Wheel Loaders: 910, 980G, 988H, 966F, 980H, 992C, 836, 990H, R3000H, R1300G, R2900G, 950G, 972H, R1700 II, R1700G, 962G
- Off-Highway Trucks: 773E, 793, 785, 771D, 740, 777D, 725, 789, 735, 773D, 730, 796 AC, 777, 798 AC, 794 AC
