Description

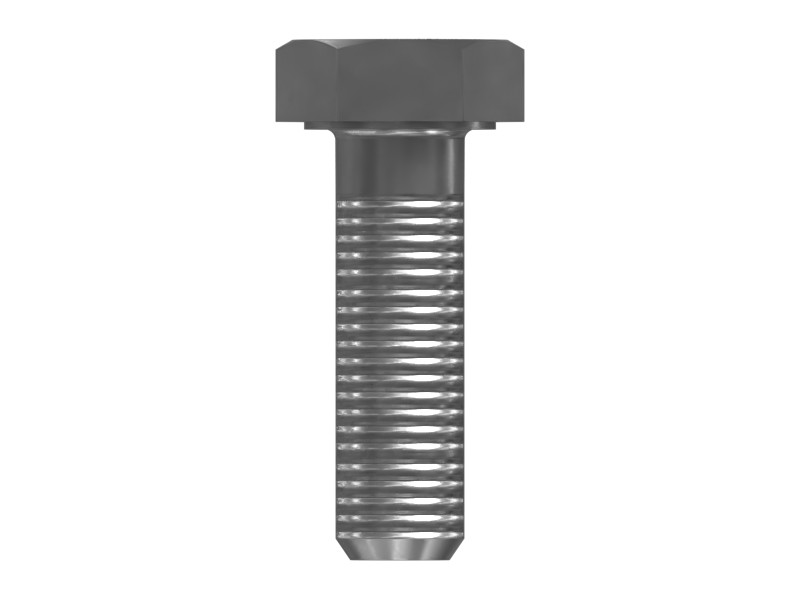

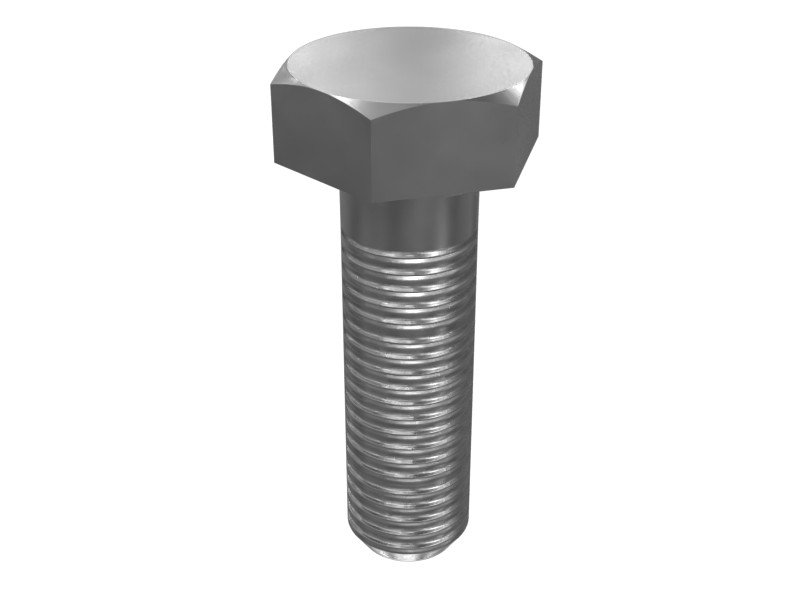

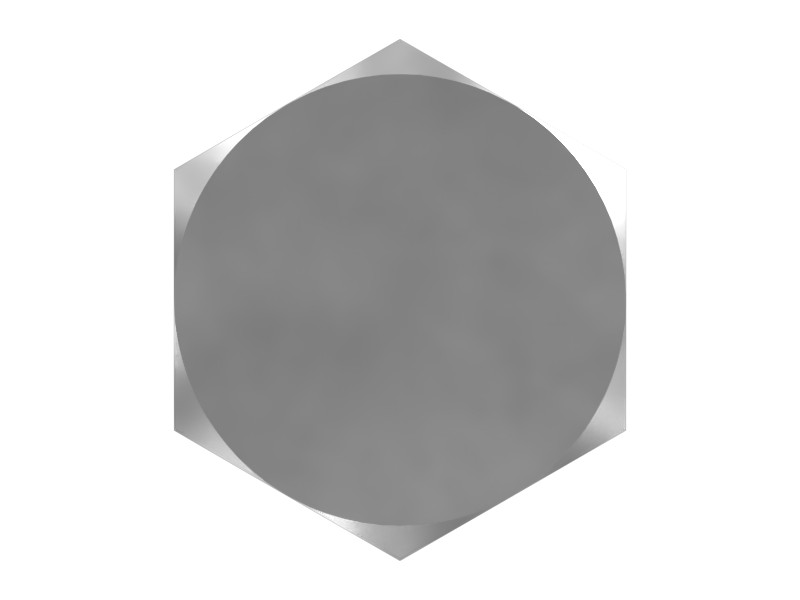

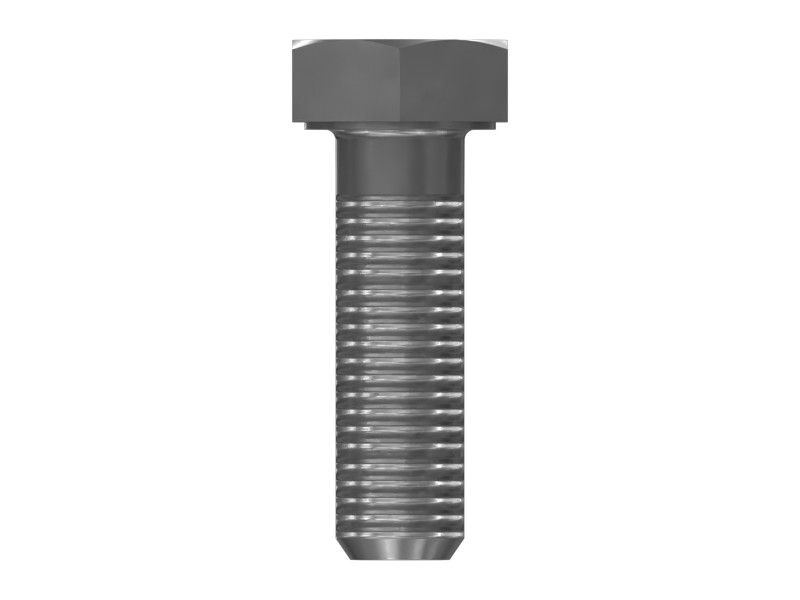

Hex head bolts (for example, 6V-8214) provide extremely strong bite-in performance.
Cat fastener parts are designed for specific applications based on size, strength, clamping force and past performance. This information is not available to other manufacturers. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one knows your equipment like we do.
Features
- Zinc-plated steel
- Thread Size: M6x1
- Drive: External Hex
- Drive Size: 10 mm
- Bolt Length: 20 mm
- Bolt Shank Length: 3 mm
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Applications
Use as needed. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M6 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M6X1 mm |
| Material | Alloy Zinc |
| Bolt Length | 20 mm (0.787 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 3 mm (0.118 in) |
| Groove Type | External Hex |
Compatible Equipment
- Generator Sets: 3516C, C9, 3512B, 3406C, 3512E, 3406B
- Track Loaders: 990K, 994K, 993, 995, 826K, 992, 816F
- Cold Planers: PL72, TH360B
- Compactors: CB1.7, CB1.8, 825K, 824K, C13B, C-9
- Engines: C11, C13, C7, C32, C15, C27, C175-16, C12, C18
- Excavators: 329D, 3126, 336D, 3456, 330, 320D, 330D L, 349F L, 3516E, 349, 352, 6040, 355, 328D LCR, 315C, 330C L, 329D L, 336D L, 330C, 325D L, 325D, 325C, 324D L, 336E L, 657G, M325D L MH, 120 GC, 6060, 336F L XE, 325C L, 336E, 324D, 320D L, 336E LN, 352F, 349E, 3516B, 349E L, 345B, 349E L VG, 345C, 3512C, 345D L, 6030, 340D L, 3508B, 365B L, 336F L, 336F LN, 325B L, 336F, 365B, 6020B, 340D2 L, 6015B, 345C L, 330D, 637K, 326, 6015, 326D L, 637G
- Asphalt Pavers: AP300F, AD63
- Skid Steer Loaders: 24, 3126B, 232D3, 226D3, 299D3 XE, 249D3, 239D3, 236D3
- Motor Graders: 120, 140H, 12H, 120H, 140K, 160K, 140 GC, 12K, 16H
- Wheel Excavators: MD6250, MD6310, MD6200
- Dozers: D11T, D10, D11, D7R II, D7E, D9R, D8L, D5G, D9N, D3G, D7R, D4G, D11N, D10T2, D7, D10T, D6R, D6R XL
- Compact Track Loaders: 299D3
- Wheel Loaders: R1700K, R1700 XE, 950H, 962G, 928G, 980H, 950G, 924GZ, 972L, 950 GC, 924K, 966H, 980G, 938K, R2900 XE, 924HZ, R1700G, 972H, R1700 II
- Off-Highway Trucks: 772G, 770G, 794 AC, 777, 793, 789, 798 AC, 796 AC, 797F, 775G, 730, 725, 789D, 7495, 793D, 785, 785D, 773, 725C2, 740, 745, 735, 740 GC, 793F
