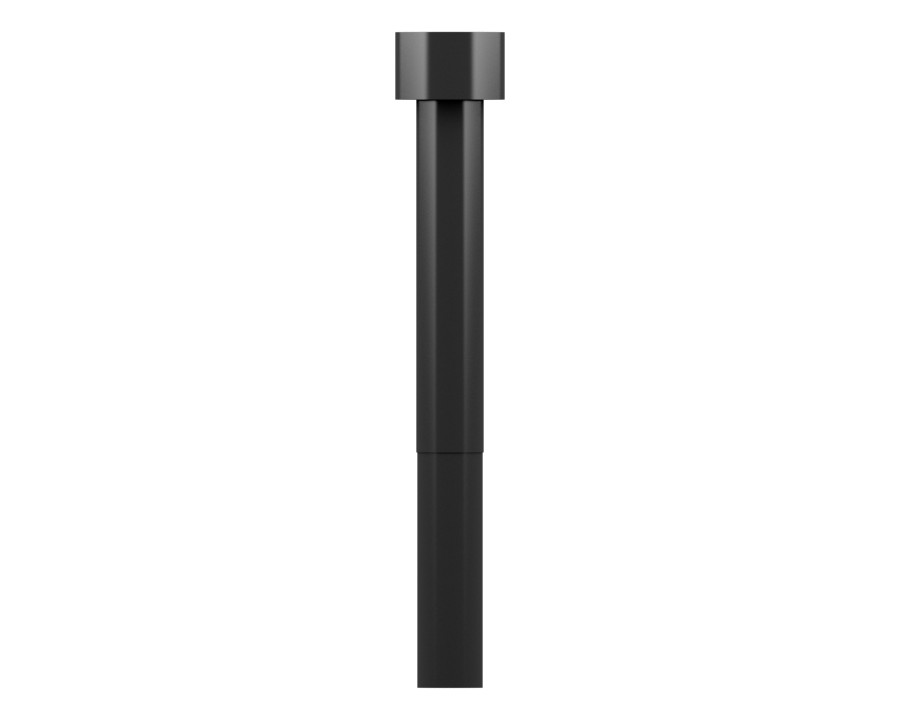

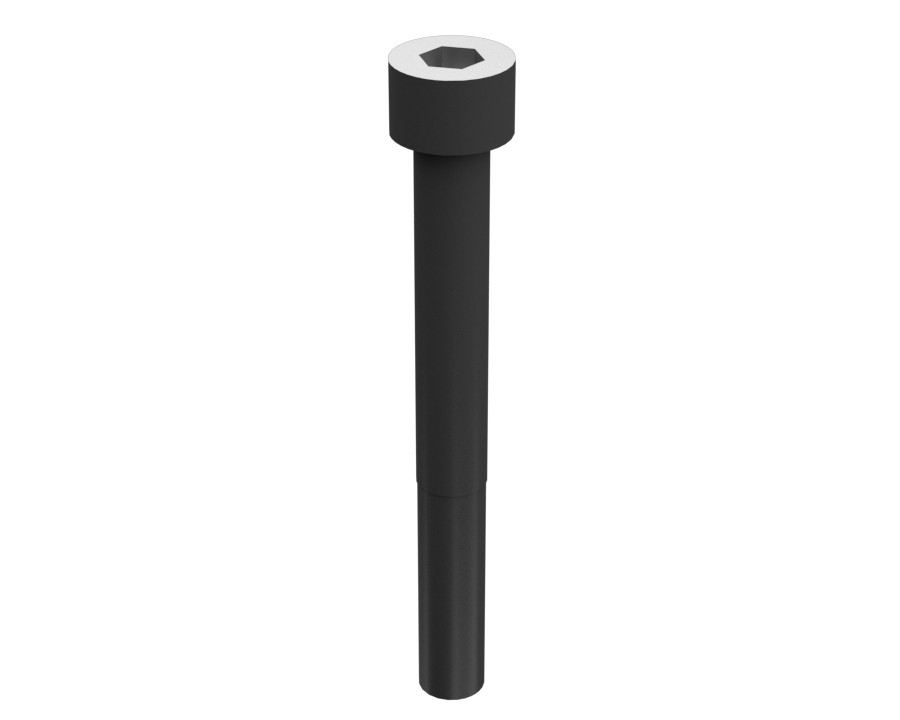

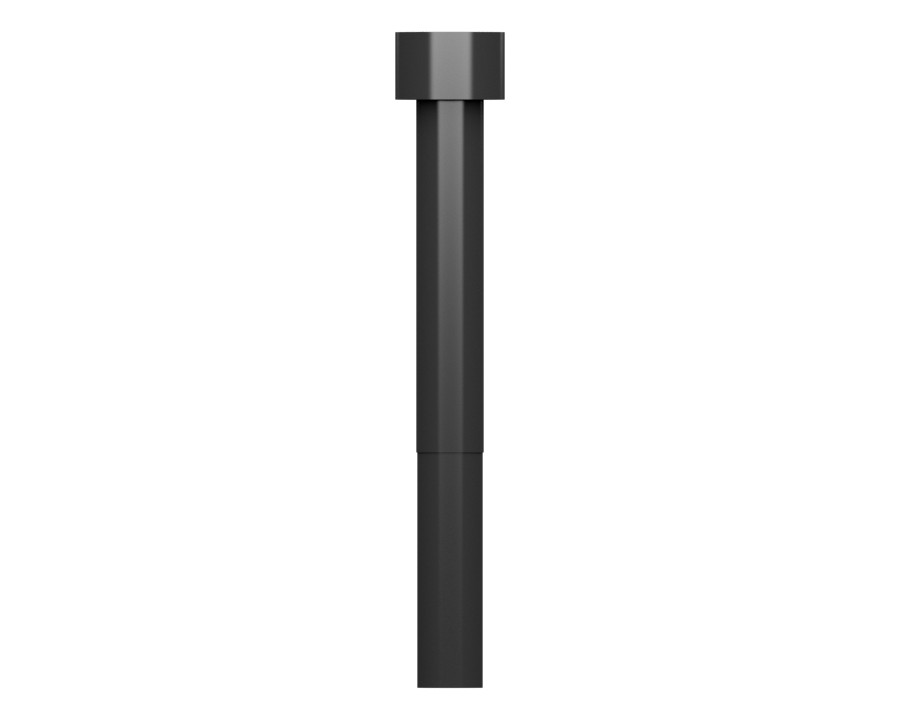

Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Direction | RH |
|---|---|
| Material | Alloy Steel |
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Handle Length | 42 mm (1.654 in) |
| Thread Size (Diameter × Pitch) | M8 × 1.25 mm |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | None |
| Bolt Length | 70 mm (2.756 in) |

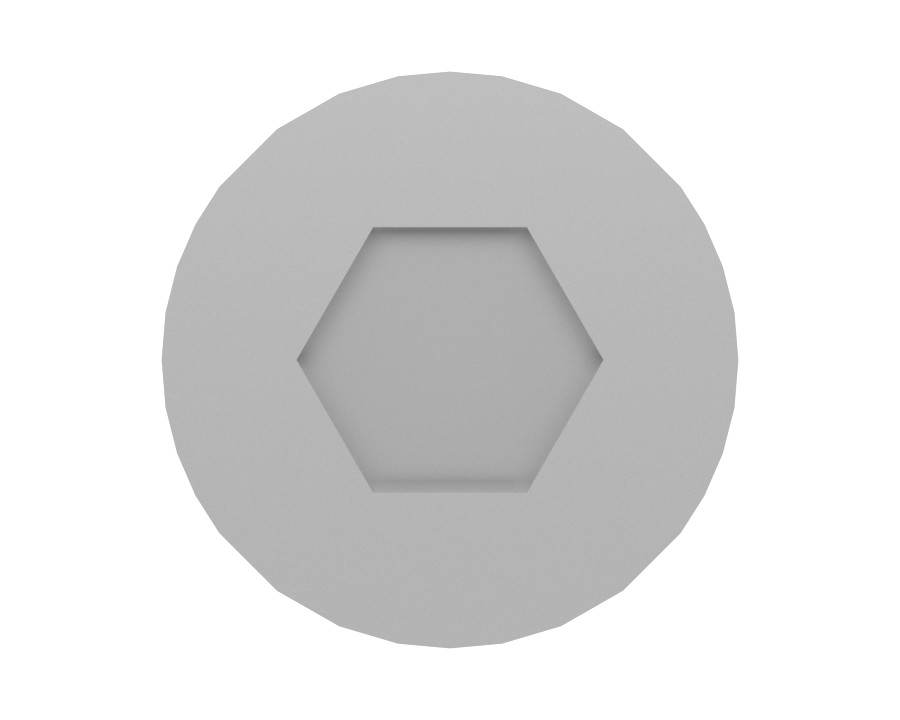

| Bolt Type | Socket Head |
Compatible Equipment
- Cold Planers: TH255C, TH360B
- Compactors: CP12 GC, CS12 GC, CS11, CP11 GC, CS12, CS-583D
- Engines: C15
- Excavators: 336D2, 349D2, 349D2 L, 301.7D, 326D2, 336D, 303.5E2 CR, 349D, 320D2, 308E, 330D L, 349F L, 305E2 CR, 320D3 GC, 336D2 L, 305 CR, 302.7CR, 432, 330D, 315D L, 6040, 352F, 349E L VG, 311D LRR, 349D L, 345C, 345D L, 349E L, 621K, 345D, 345C L, 349E, 340D2 L, 340D L, 6060, 336D L, 336E L, 320D3, 314D CR, 312D, 336E LN, 325C, 311B, 314D LCR, 312D L, 621H, 336E, 336D2 GC, 330D2, 312E L, 637K, 303CR, 303.5CR
- Asphalt Pavers: AP655F, AP655F L
- Skid Steer Loaders: 232D3, 236D3, 226D3, 236
- Motor Graders: 14
- Wheel Excavators: M315, M320
- Dozers: D3K2 LGP, D1, D5K2 XL
- Mini Excavators: 308, 306, 305E2, 303.5, 303.5E, 301.7D CR, 305.5E, 305.5E2
- Wheel Loaders: 962G, 950G, 928G
- Off-Highway Trucks: 794 AC, 793
Additional information
| Machine Model | 14, 226D3, 232D3, 236, 236D3, 301.7D, 301.7D CR, 302.7CR, 303.5, 303.5CR, 303.5E, 303.5E2 CR, 303CR, 305 CR, 305.5E, 305.5E2, 305E2, 305E2 CR, 306, 308, 308E, 311B, 311D LRR, 312D, 312D L, 312E L, 314D CR, 314D LCR, 315D L, 320D2, 320D3, 320D3 GC, 325C, 326D2, 330D, 330D L, 330D2, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 352F, 432, 6040, 6060, 621H, 621K, 637K, 793, 794 AC, 928G, 950G, 962G, AP655F, AP655F L, C15, CP11 GC, CP12 GC, CS-583D, CS11, CS12, CS12 GC, D1, D3K2 LGP, D5K2 XL, M315, M320, TH255C, TH360B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines |
| Part Source | Genuine OEM |
