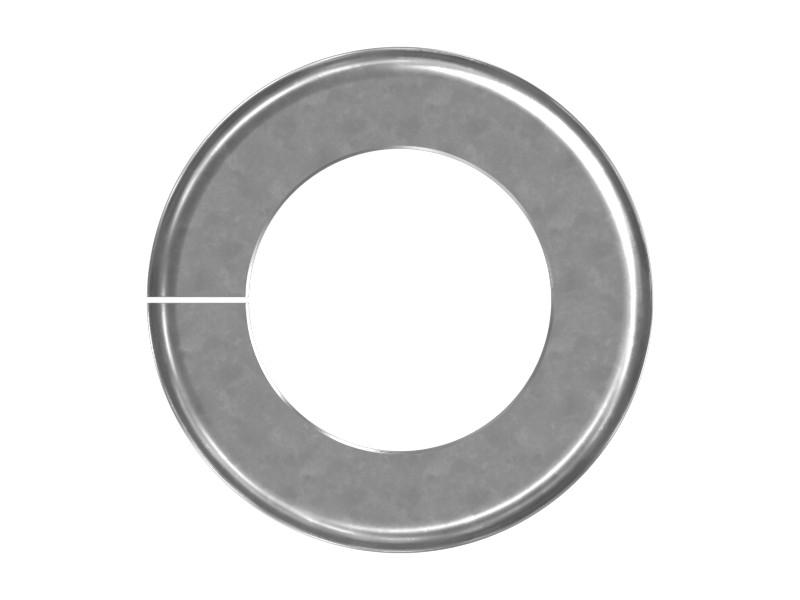

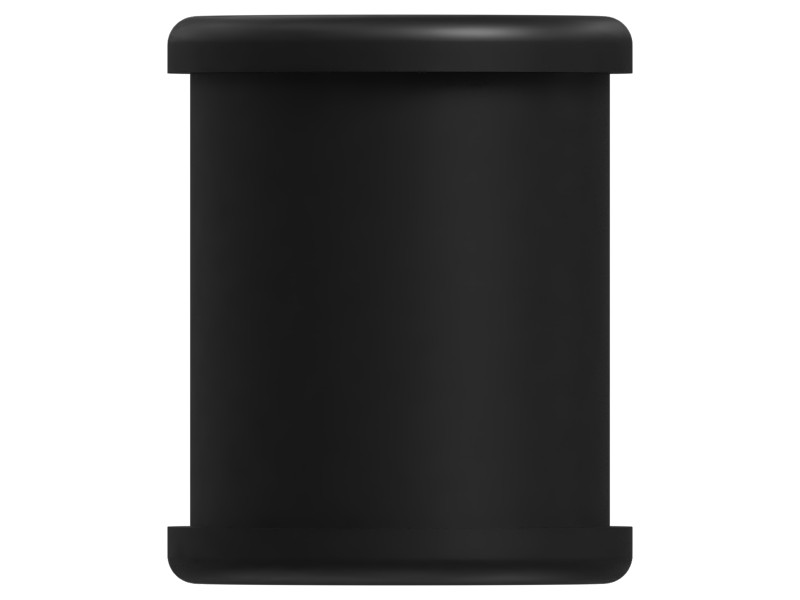

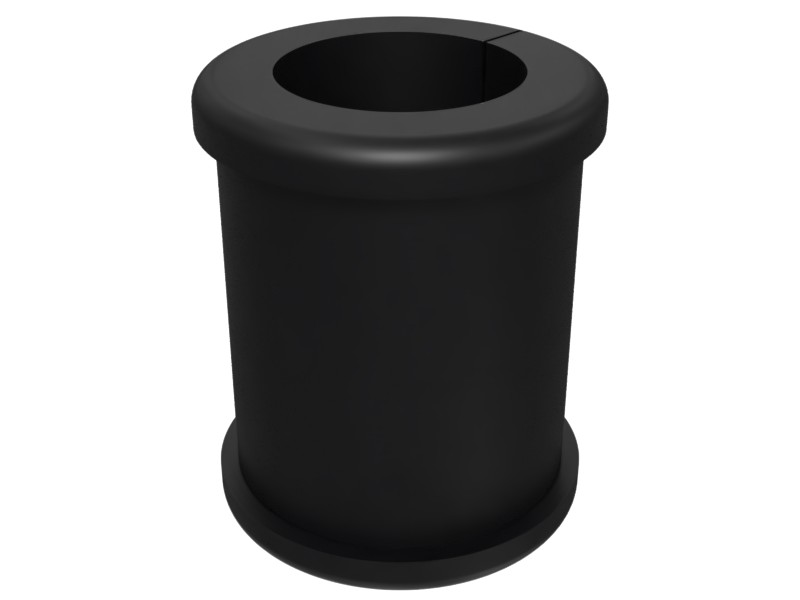

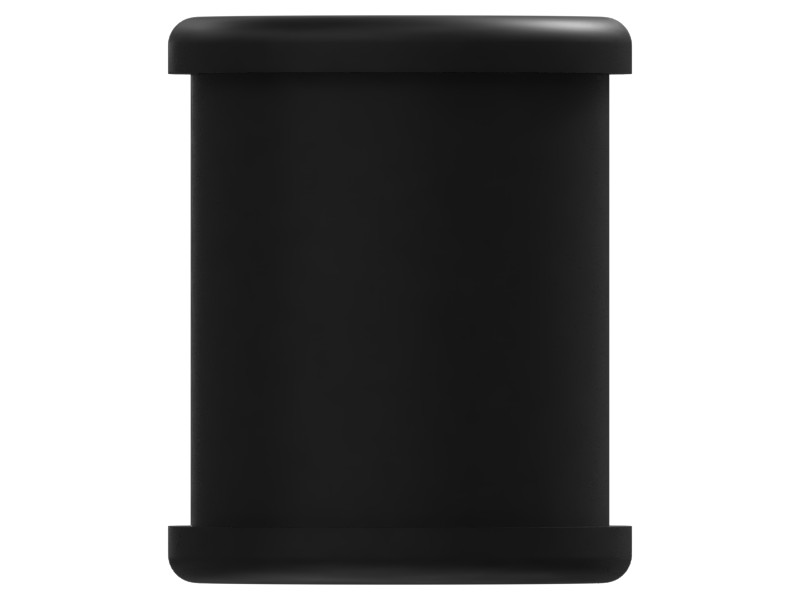

Description
Cat® grommets are made of high-quality rubber suited to the equipment's environment. They keep wires and cables from contacting metal, protect these components from damage (vibration), and prevent rubbing against surrounding structures (vibration, shock, noise).
The grommet has a rubber flange placed evenly on both sides of the material to hold the rubber in place.
Features
The grommet has a rubber tab placed evenly on both sides of the material to hold the rubber in place.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 50 mm (1.97 in) |
|---|---|
| Outside Diameter | 41 mm (1.6 in) |
| Groove Width – A | 40 mm (1.57 in) |
| Inside Diameter | 25 mm (0.98 in) |
| Material Description | Rubber |
| Material | Chloroprene (CR) Rubber |
| Diameter | 37 mm (1.45 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, G3516, C9, G3516C
- Track Loaders: 826K, 953, 992, 963, 990K, 963K, 963D, 816F, 973K, 994K, 995, 982, 824C, 826H, 993
- Cold Planers: PL87, PL72, PL83, PL61
- Compactors: 834K, 824K, 816, 814, 825K, 815
- Engines: C32, C15, C13, C175-16, C18
- Excavators: 374F, 303C CR, 306E2, 307E, 308E, 374D L, 374, 305E2 CR, 395, 3516E, 621H, 6020B, 3516B, 6015, 6030, 305 CR, 6060, 416F2, 621K, 3512C, 416E, 621G, 432, 434F2, 374F L, 320C, 330C, 325C L, 315D L, 325C, 312C L, 312D, 330C L, 3508B, 6015B, 6040, 637K, 428F, 365C, 312D L, 314C, 320C L, 312C, 365C L
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24, 236D3, 246D3, 299D3 XE, 262D3, 289D3, 259D3, 246C, 272D3 XE, 272D3, 242D3, 262C, 279C
- Motor Graders: 18, 16, 16M3, 14, 16M
- Wheel Excavators: MD6250, MD6310, M315, MD6200, IT14G
- Dozers: D8T, D8, D8R, D10R, D11T, D9, D10T2, D4, D11, D7, D6K2, D5H, D9T, D6N, D7R II, D6T, D9R, D7E, D6M, D6T LGP, D10, D11R, D10T, D10N
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 305.5E2, 307, 307D, 303.5D, 305.5E, 305.5 GC, 303.5C, 308E2, 307E2
- Wheel Loaders: 834, 988K, 962G, 962L, 966L, 950G, 966K, 924GZ, 980L, 836, 950L, 980, 972L, 986H, 980H, 924HZ, 990H, R1700 XE
- Off-Highway Trucks: 796 AC, 789D, 777, 797F, 793F, 798 AC, 745, 740, 740 GC, 773F, 775G, 730, 735, 745C, 7495, 785, 773, 794 AC, 725, 770G, 773E, 793D, 740B, 793, 789, 777E, 772G, 777D, 785D, 725C2
