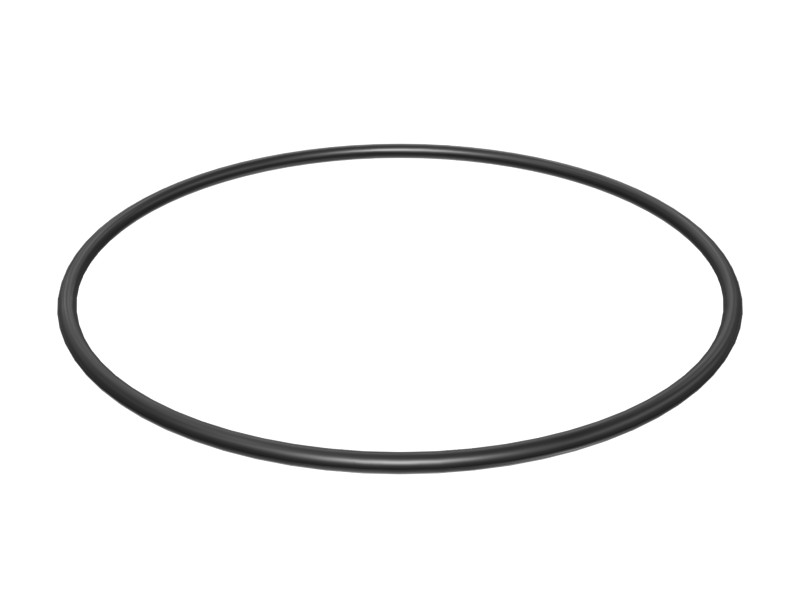

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material Hardness | 75A |
|---|---|
| Compatible | Diester Lubricants; Halogenated Hydrocarbons (Above 100 Degrees C); Excellent Compression Set Resistant Material; Petroleum Fluids; Phosphate Ester Fluids; Silicone Oils; Certain Acids |
| Dash Size | 252 in |
| Polymer | FKM (Fluorocarbon) |
| Cross-Section Diameter | 3.53 mm (0.139 in) |
| Inside Diameter | 132.94 mm (5.234 in) |
| Material | FKM |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E, C4.4, G3516C, G3516
- Track Loaders: 990K, 834H, 993, 992
- Compactors: CS-56, CB-534D, CS78B, CS74B, CS79B, CS-563E, CB16, CS-533C, CS56B, CB-66B, CB-564D, CS-583D, CB-64B, CS68B, CP56B, CS12, CB15, CB13
- Wheel Excavators: MD6310
- Engines: C7
- Dozers: D10T, D10R
- Excavators: 3512C, 3516B, 3508B, 6060, 6015B, 3516E, 6015, 6040
- Wheel Loaders: 980H, 980G, R1700K, R1700 XE
- Off-Highway Trucks: 777D, 777E, 785D, 797F, 785, 789
- Asphalt Pavers: AD30
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 3126B, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6015, 6015B, 6040, 6060, 777D, 777E, 785, 785D, 789, 797F, 834H, 980G, 980H, 990K, 992, 993, AD30, C4.4, C7, CB-534D, CB-564D, CB-64B, CB-66B, CB13, CB15, CB16, CP56B, CS-533C, CS-56, CS-563E, CS-583D, CS12, CS56B, CS68B, CS74B, CS78B, CS79B, D10R, D10T, G3516, G3516C, MD6310, R1700 XE, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
