Description

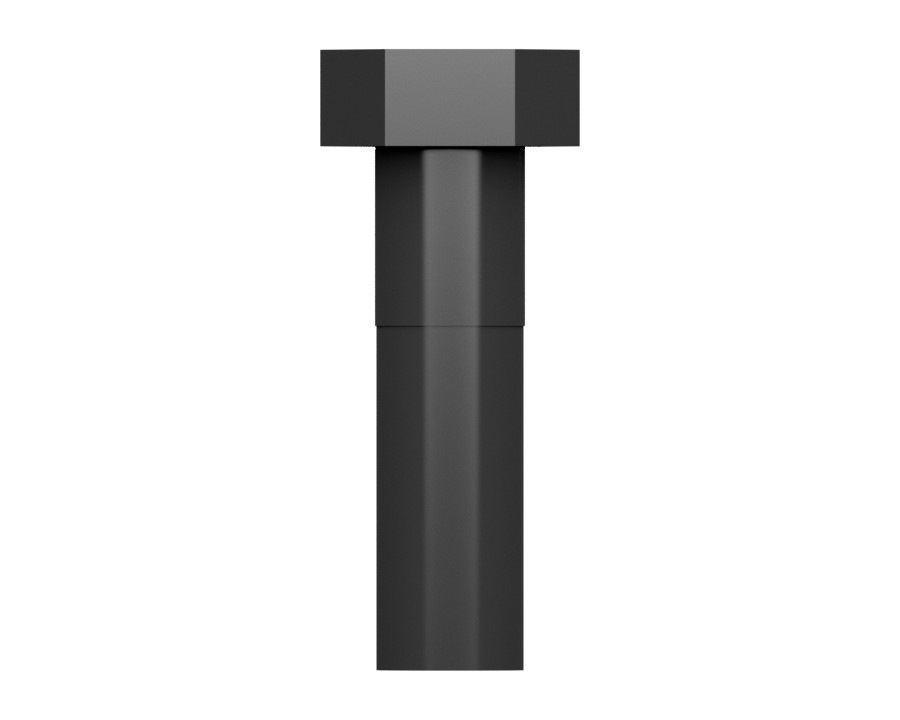

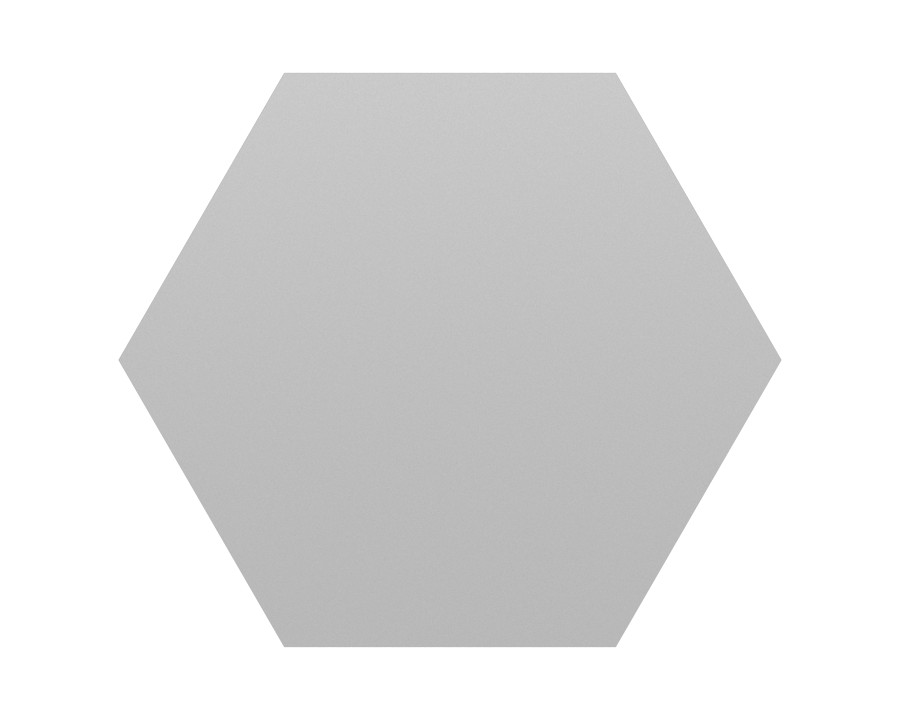

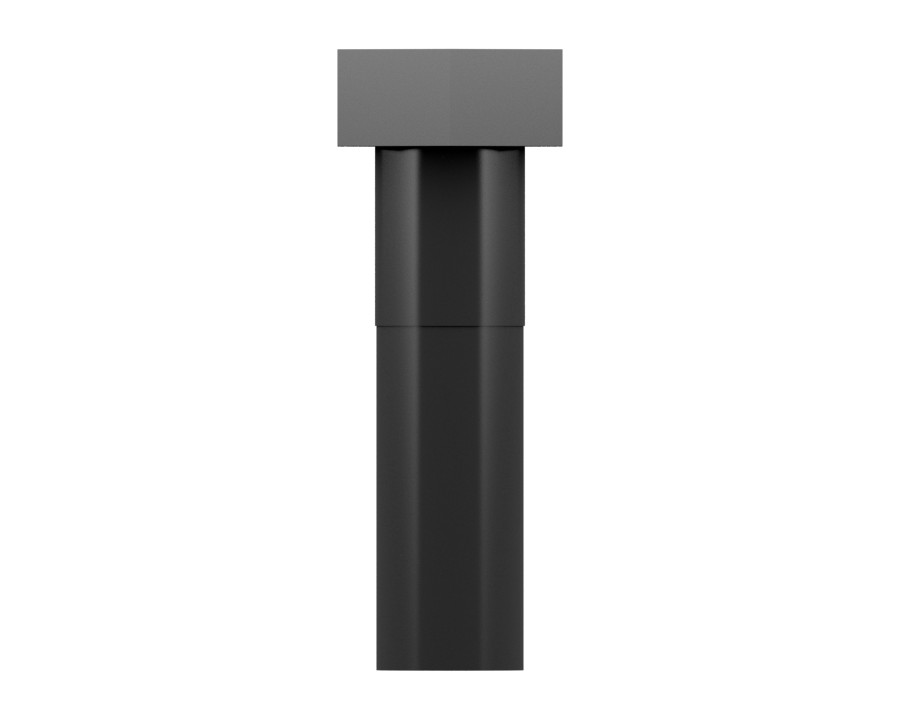

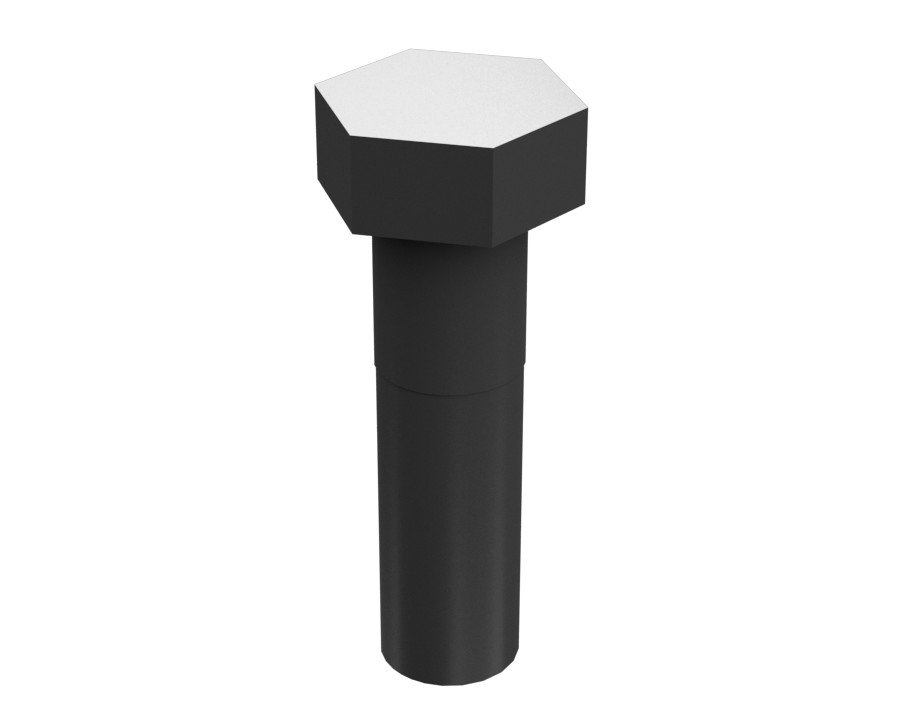

Track bolts are used to secure track shoes to the link assembly.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Direction | RH |
| Material | Alloy Mixed: Metal |
| Material Description | ISO 898-1 Class 10.9 |
| Hole Thread Pitch | 2.50 |
| Drive Chain | 30 mm |
| Overall Length | 70 mm |
| Thread Size | M20 mm (0 in) |
| Head Height | 12.88 mm |
| Grade | 10.9 |
| Thread Size (Diameter × Pitch) | M20 × 2.50 mm |
| Head Width – 5 | 30 mm |
| Surface Finish | Phosphate and Oil Coating |
| Bolt Size | M20 mm (0.7874 in) |
| Handle Length – 2 | 24 mm |
| Head Height – 4 | 13 mm |
| Bolt Overall Length – 3 | 70 mm |
| Locking Feature | None |
| Bolt Length | 70 mm (2.756 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Phosphate and Oil |
| Handle Length | 7.5 mm (0.295 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | M20-2.5 in |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 973K
- Cold Planers: PL72
- Engines: C32, C7, C175-16
- Asphalt Pavers: AD30, AD45, AD63
- Skid Steer Loaders: 236D, 246D, 262D
- Motor Graders: 120H, 140G, 16M, 140H, 12H, 3606
- Compactors: C-9
- Dozers: D8T, D8, D8R, D6T, D6R II, D6R, D7E, D6T LGP, D6R III, D9R, D9T, D9
- Excavators: 329E, 336F, 336E, 336E L, 336E LH, 336F L, 336F L XE, 329E L, 336F LN, 336E H, 336E LN, 6015, 637K, 6015B
- Wheel Loaders: 836, 980H, 938K, 972L, 966L, 938M, 980G, 966K, 988F, R1700K
- Off-Highway Trucks: 797F, 772G, 725C2, 740, 798 AC, 777, 7495, 725, 745C, 745, 796 AC, 793F, 740 GC, 794 AC, 793
Additional information
| Machine Model | 120H, 12H, 140G, 140H, 16M, 236D, 246D, 262D, 329E, 329E L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 3606, 6015, 6015B, 637K, 725, 725C2, 740, 740 GC, 745, 745C, 7495, 772G, 777, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 836, 938K, 938M, 966K, 966L, 972L, 973K, 980G, 980H, 988F, AD30, AD45, AD63, C-9, C175-16, C32, C7, C9, D6R, D6R II, D6R III, D6T, D6T LGP, D7E, D8, D8R, D8T, D9, D9R, D9T, PL72, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
