Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M10 mm (0 in) |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 45 mm (1.772 in) |

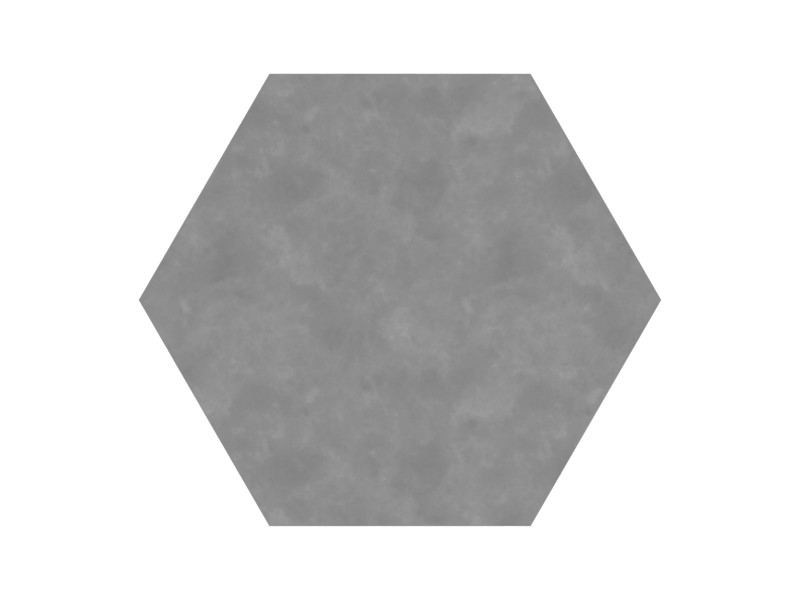

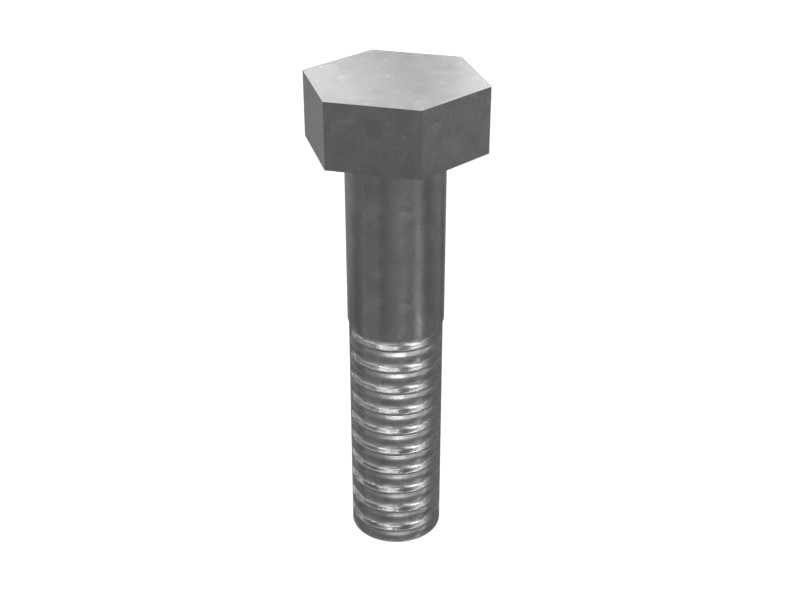

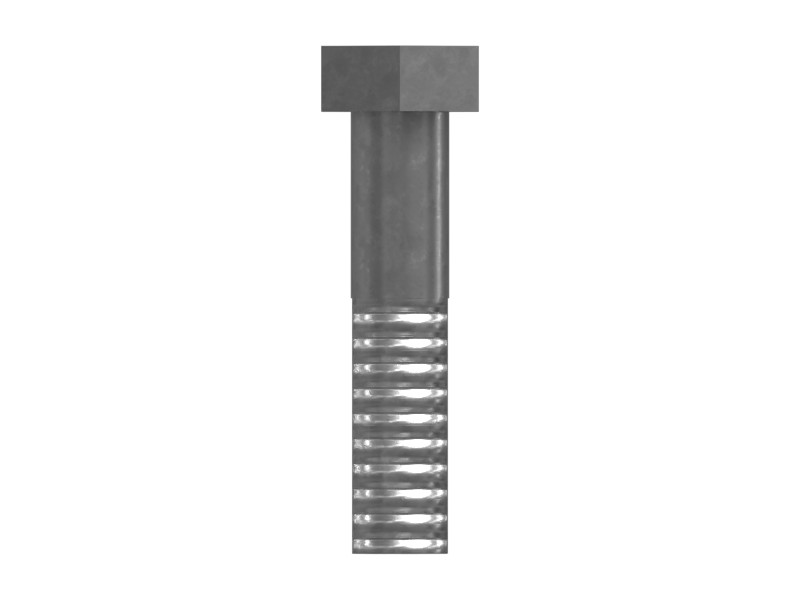

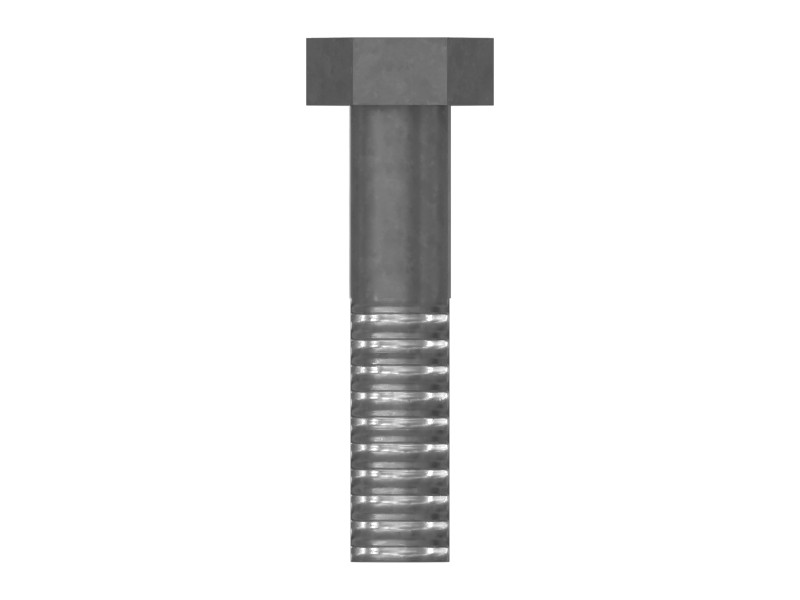

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 5 mm (0.177 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: C9, C7.1, C4.4
- Track Loaders: 973K, 982, 972, 834H
- Cold Planers: PL72
- Compactors: 825K, 834K, 824K, C9.3B, C13B, CS-583D, C-9, C-15
- Engines: C7, C11, C13, C15, C32, C6.6, C27, C175-16, C18, C12
- Excavators: 3126, 336D2, 349D2 L, 349D2, 349D, 329D, 336D, 313 GC, 313, 330D L, 349F L, 340, 6015, 6015B, 336, 313D2, 315 GC, 336 GC, 345 GC, 350, 352, 355, M325D L MH, 3508B, 315, 345C, 329D L, 336F, 336D L, 324D, 637E, 637K, 637G, 365B, 349, 349E L, 621H, 345C L, 349E, 345D L, 349E L VG, 345B, 349D L, 621K, 352F, 340D2 L, 345D, 3516E, 340D L, 325D, 336F L, 312E L, 330C, 365B L, 336E LH, 336E L, 325C, 325B L, 330C L, 328D LCR, 320B, 314D CR, 311D LRR, 330D, 313F LGC, 336F LN, 336F L XE, 312D2, 312D L, 325D L, 336D2 L, 313D, 312D, 312D2 GC, 324D L, 325B, 312F, 325C L, 313D2 GC, 336D2 XE, 314D LCR, 313D2-GC, 336E, 312D2 L, 336D2 GC, 336E LN, 312E, 326D L, 313F L, 315F LCR, 336E H, 3516B, 350MHPU
- Asphalt Pavers: AP655F, AD63
- Skid Steer Loaders: 3126B, 313D2 LGP
- Motor Graders: 16M, 16, 18, 14, 3606, 12H, 16M3, 16H, 120H, 140K, 160K, 140G, 12K, 14M, 349 GC
- Wheel Excavators: IT14G, M320, MD6200
- Dozers: D7, D10, D6N, D7R II, D6T LGP, D6T, D6R II, D6M, D5N, D6R III, D5M, D7E, D8N, D6R, D7R, D6R LGP, D11, D6R XL, D9, D10R
- Wheel Loaders: 980, 836, 834, 988K, 966, R1700 II, 950G, 966H, 962G, 972H, 972L, 972G, 950H, 980H, 966L, 966F, 980G, 966K, 928G, 906K, R1600H, R1700G, R1700K, 988H, 986H, 988G, RM500B, RM400, 980L
- Off-Highway Trucks: 793, 793D, 777, 777E, 793F, 725, 730, 735, 773, 797F, 745, 772G, 798 AC, 770G, 777D, 773E, 725C2, 740 GC, 740, 745C, 789D, 796 AC, 773D, 785D, 794 AC, 740B, 775G, 773F
