Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

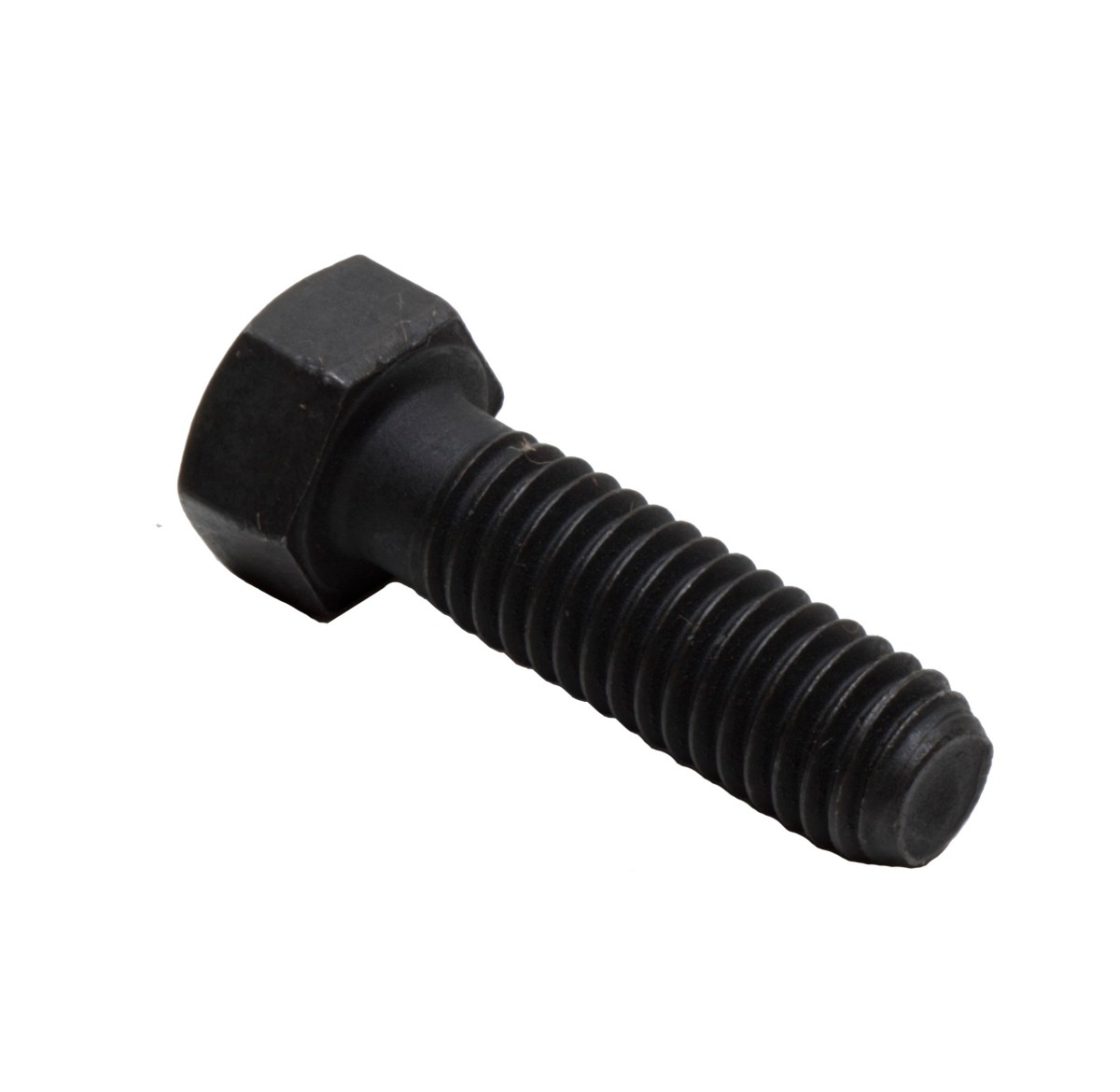

Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Thread Size | 0.3125 mm (0.012 in) |
| Locking Feature | None |
| Head Width – 5 | 0.50 in |
| Head Height – 4 | 0.24 in |
| Handle Length – 2 | 0.25 in |
| Surface Finish | Zinc Plated |
| Bolt Overall Length – 3 | 1 1/8 in |
| Thread Direction | RH |
| Bolt Length | 28.58 mm (1 1/8 in) |
| Head Height | 0.24 in |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Drive Chain | 1/2 in |
| Handle Length | 4.23 mm (0.25 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 5/16-18 in |
| Material Description | SAE J429 Grade 8. Head Marking – 6 Radial Lines (150 ksi Ultimate Tensile Strength) |
Compatible Equipment
- Generator Sets: 3512B, 3406C, 3516C, G3516, 3406B
- Motor Graders: 140G, 16H
- Track Loaders: 953, 824C, 963, 963D
- Engines: C32, C27, C15, C18
- Dozers: D10T, D11, D10N, D10R, D11R, D11N, D6R, D7R II, D8N, D9T, D7H, D8R, D7G2, D6G2 LGP, D6G, D6G2 XL, D7R, D9N, D7G
- Excavators: 330D L, 320D L, 6020B, 325D, 336D L, 329D L, 323D L, 336D2 L, 324D L, 330D2 L, 324D, 320D2 L, 325D L, 637E, 637G, 637K, 349D L, 345C, 345C L, 345D L, 385B, 350 L, 345D, 345B, 320D FM, M325D L MH, 320B, 330D, 325B L, 323D2 L, 320D2 GC, 323D, 320D, 320D2, 336D2, 336D, 349D2 L, 349D2, 349D, 329D, 329D2 L, 326D2 L, 329D2, 326D2
- Wheel Loaders: R1700G, R2900G, R3000H, 966F, RM500B, R1600H, R1700K
- Off-Highway Trucks: 794 AC, 798 AC, 773, 771D, 789, 785D, 796 AC, 793D, 775G, 773D, 785, 7495, 773E
- Asphalt Pavers: AP-600D, AD63
Additional information
| Machine Model | 140G, 16H, 320B, 320D, 320D FM, 320D L, 320D2, 320D2 GC, 320D2 L, 323D, 323D L, 323D2 L, 324D, 324D L, 325B L, 325D, 325D L, 326D2, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 330D, 330D L, 330D2 L, 336D, 336D L, 336D2, 336D2 L, 3406B, 3406C, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 350 L, 3512B, 3516C, 385B, 6020B, 637E, 637G, 637K, 7495, 771D, 773, 773D, 773E, 775G, 785, 785D, 789, 793D, 794 AC, 796 AC, 798 AC, 824C, 953, 963, 963D, 966F, AD63, AP-600D, C15, C18, C27, C32, D10N, D10R, D10T, D11, D11N, D11R, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R, D7R II, D8N, D8R, D9N, D9T, G3516, M325D L MH, R1600H, R1700G, R1700K, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
