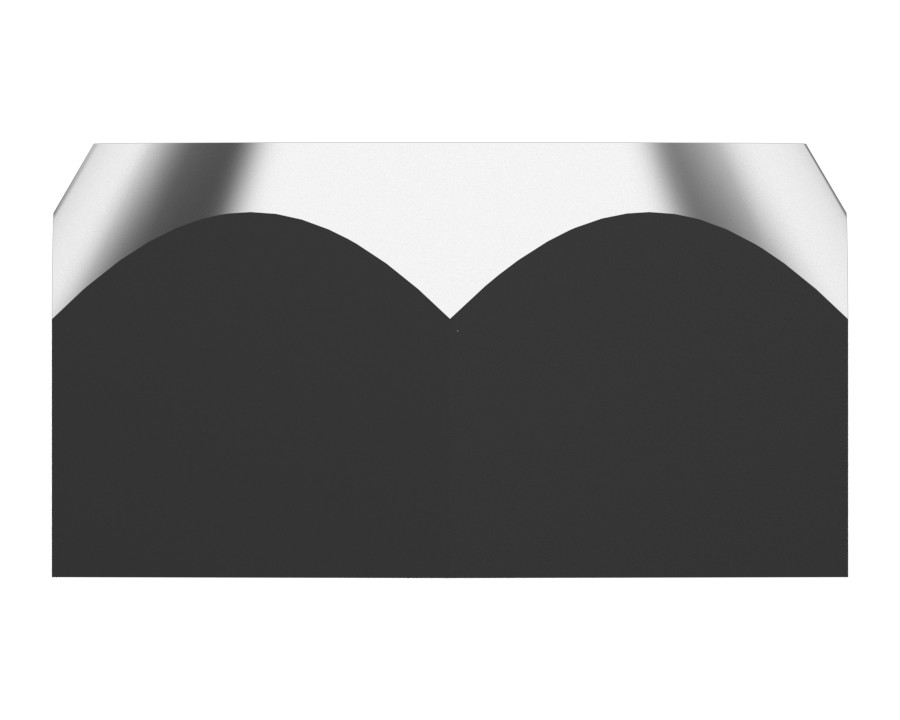

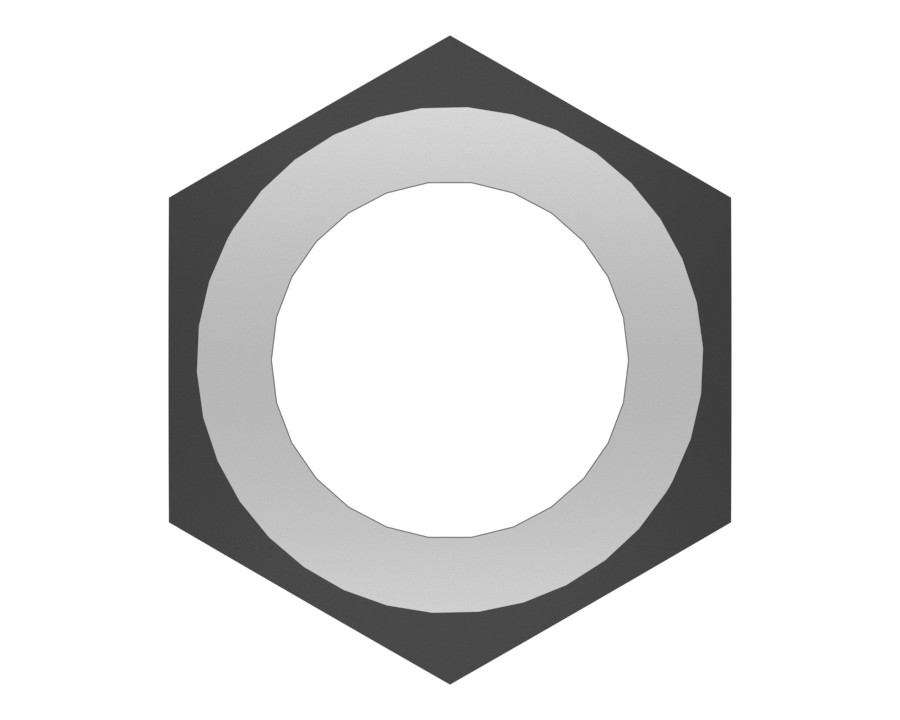

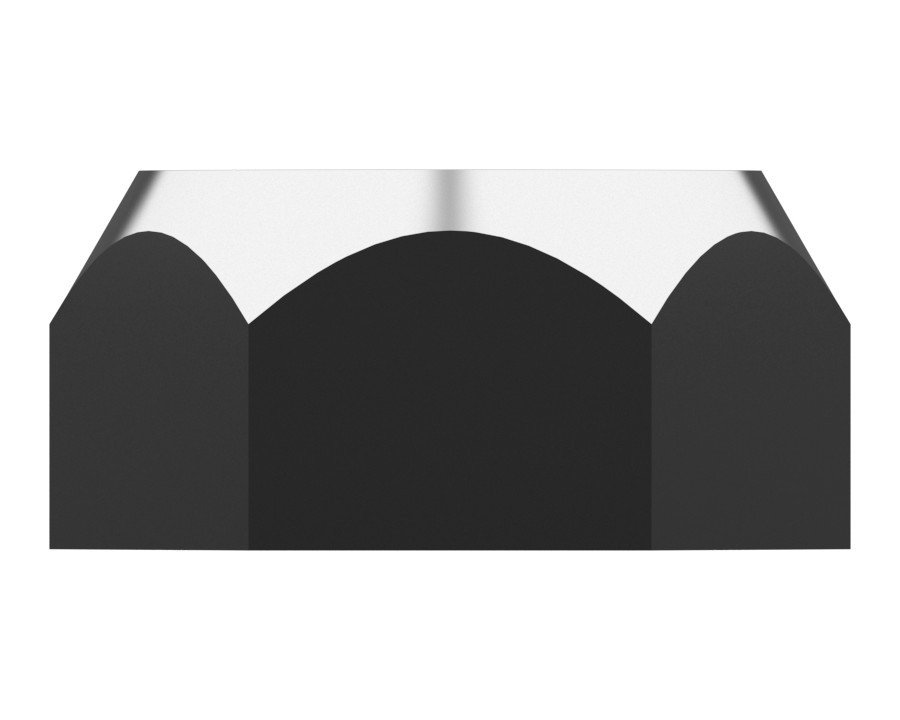

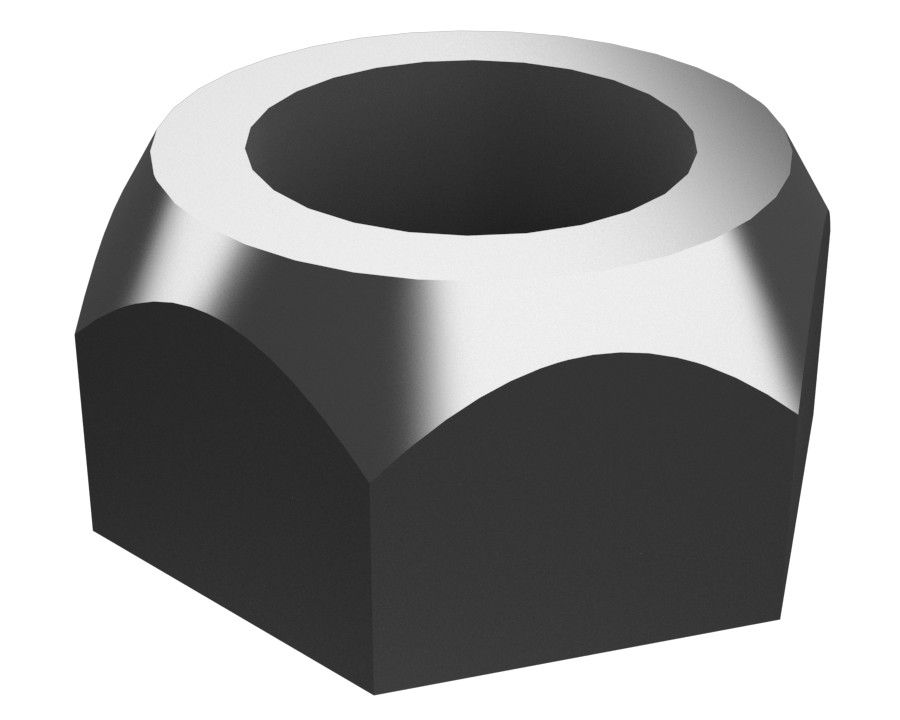

6V-5729 7/16-14 Thread Lock Nut
Cat® Lock Nuts ensure a secure connection, prevent loosening, and maintain the stability of various mechanical assemblies.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Thread | Coarse Thread UNC |
|---|---|
| Nut Width – 3 | 11/16 in |
| Thread Size | .437 mm (0.017 in) |
| Hole Thread Pitch | 14 |
| Drive Chain | 17.4625 mm (11/16 in) |
| Thread Direction | RH |
| Class or Grade | SAE J995 Grade 8 |
| Thread Size (Diameter × Pitch) | 7/16×14 mm |
| Hardened | Yes |
| Thickness | 9.525 mm (0.375 in) |
| Height | 0.37 in |
| Nut Model | Lock Nut |
| Thread Size (in – TPI) | 7/16-14 in |
| Material | Alloy Zinc |
| Material Description | SAE J995 Grade 8 |
| Coating | Zinc Plated |
Compatible Equipment
- Generator Sets: 3406C, 3512B, 3516C, G3516C, G3516
- Engines: C32, C13, C15, C27, C175-16
- Dozers: D8L
- Excavators: 3512C, 3516B, 3508B, 416E
- Off-Highway Trucks: 794 AC
