Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

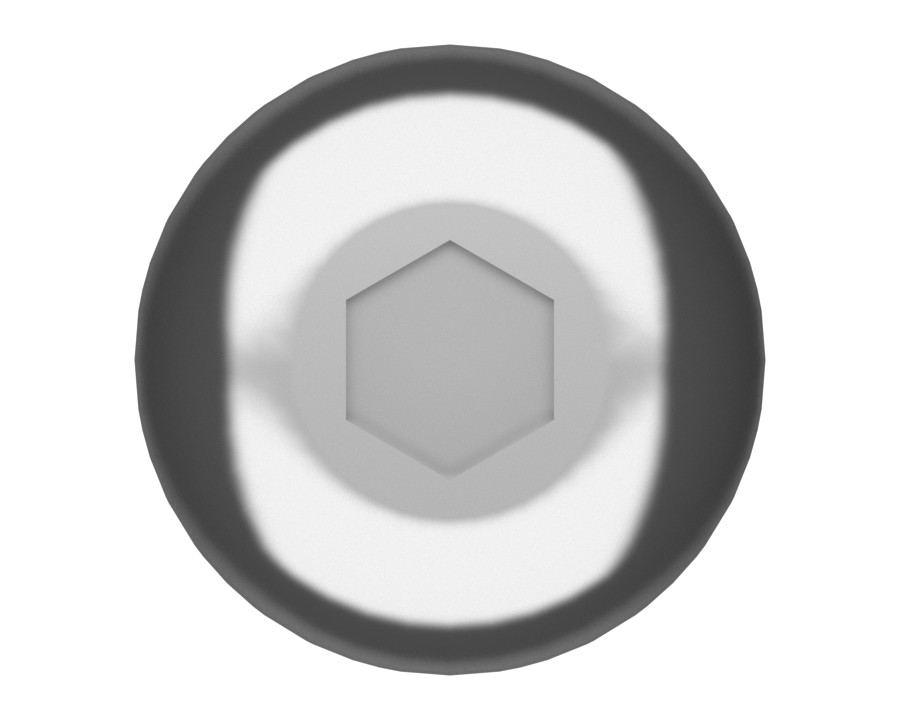

These are small internal thread-forming screws.
Features
* Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
* Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
* Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
* Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild, for most machine and shop applications around the world.
Specifications
| Locking Feature | None |
|---|---|
| Bolt Type | Rounded Head (Pan) |
| Handle Length | 1.4 mm (0.055 in) |
| Thread Size | M4 mm (0 in) |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size (Diameter × Pitch) | M4x0.7 mm |
| Coating | Zinc Phosphate + Oil |
| Bolt Length | 10 mm (0.394 in) |
Compatible Equipment
- Track Loaders: 963, 973K, 963D, 953D, 963K
- Cold Planers: TH360B
- Compactors: CB-564D, CB-534D
- Engines: C7
- Excavators: 320D, 313, 313 GC, 315, 320D L, 320C, 6015B, 6015, 325B L
- Asphalt Pavers: AP300F, AP355F
- Skid Steer Loaders: 246C, 279C, 236, 226B, 262C
- Motor Graders: 160K, 140H, 12H, 140G, 140K, 12K, 120H
- Dozers: D7R
- Wheel Loaders: 950H, 966F, 950G, 972G, 962G, R3000H, R2900G, R1700 II
- Off-Highway Trucks: 7495, 730, 740, 793F, 725, 735
Additional information
| Machine Model | 120H, 12H, 12K, 140G, 140H, 140K, 160K, 226B, 236, 246C, 262C, 279C, 313, 313 GC, 315, 320C, 320D, 320D L, 325B L, 6015, 6015B, 725, 730, 735, 740, 7495, 793F, 950G, 950H, 953D, 962G, 963, 963D, 963K, 966F, 972G, 973K, AP300F, AP355F, C7, CB-534D, CB-564D, D7R, R1700 II, R2900G, R3000H, TH360B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines |
| Part Source | Genuine OEM |
