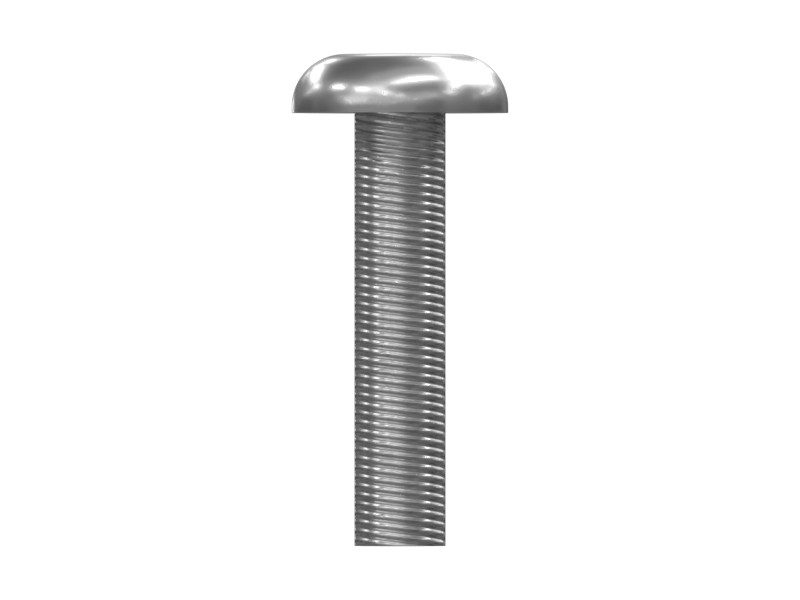

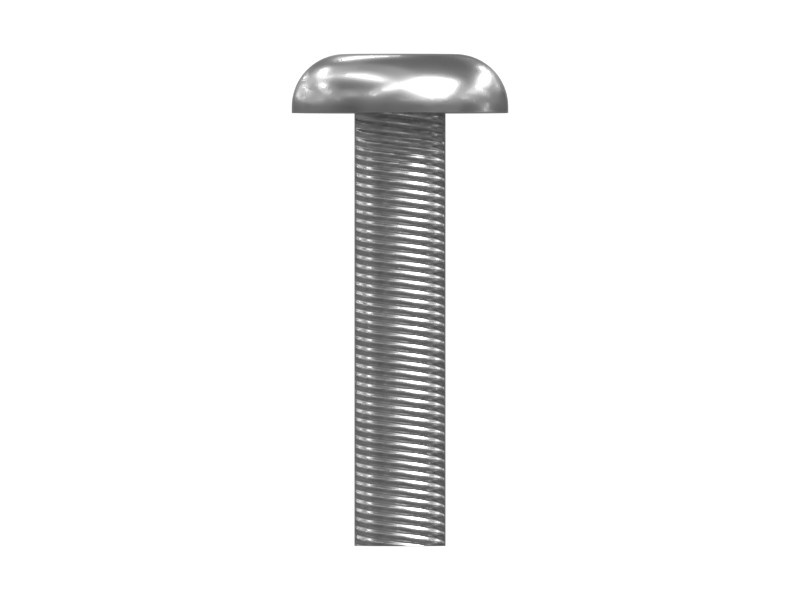

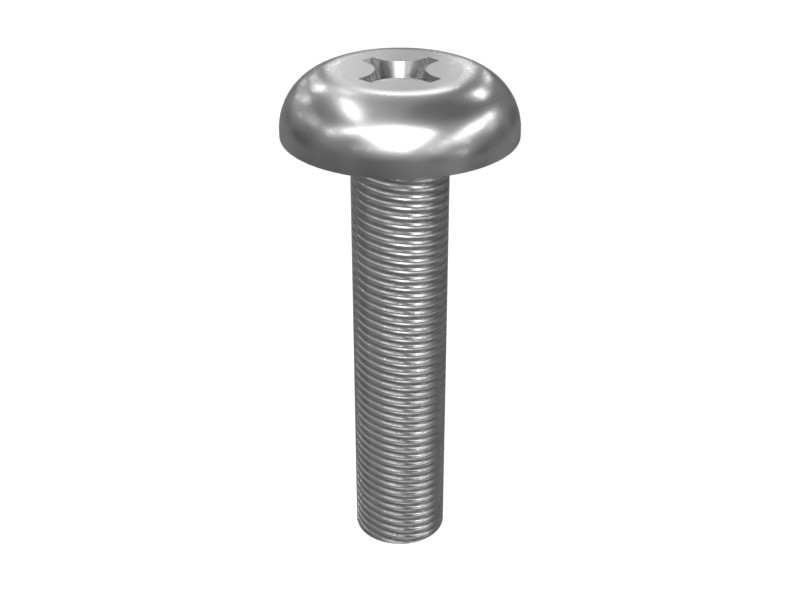

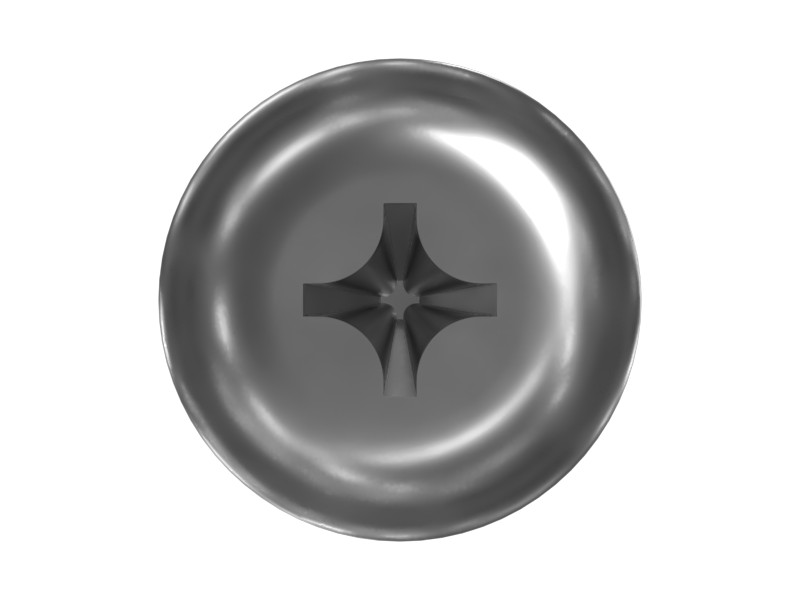

6V-5645 #10-12 Thread Truss Head Screw
Cat® Circuit Breaker Panel Large Round Head Screw Uses a Compact Head Design to Securely Attach the Circuit Breaker Panel
Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Class or Grade | ASME B18.6.3 (60 ksi) |
|---|---|
| Bolt Length | 22.22 mm (0.875 in) |
| Handle Length | 1.5 mm (None in) |
| Thread Size | No. 10 (.190) mm (0 in) |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | No. 10 (.190)x32 mm |
| Bolt Type | Rounded Head (Pan) |
| Head Type | Truss |
| Material | Steel |
| Coating | Zinc Flake |
| Locking Feature | None |
| Length | 7/8 in |
Compatible Equipment
- Motor Graders: 160K, 140K, 16H, 12H, 140H, 12K, 120H, 316F
- Generator Sets: 3512B, C7.1
- Track Loaders: 826H
- Cold Planers: PL87, PL83
- Engines: C175-16, C18
- Dozers: D10N, D11R, D10T, D10R, D11T, D9T, D6R, D9R, D6R III, D6M, D6R II, D7R II, D6T, D8R, D5M, D9N, D7R, D6R XL, D8T
- Mini Excavators: 307, 307B, 305.5, 306, 307C, 307D
- Excavators: 330D L, 349F L, 336E L, 315D L, 336F L XE, 320C, 336E LN, 323D L, 336F L, 330C L, 312E L, 323D2, 313D, 336F LN, 330D2, 312D L, 314D LCR, 330D2 L, 336E, 312C L, 329D L, 325B L, 320D FM, 312D2 L, 325C L, 311D LRR, 336D L, 320D L, 312D, 336E LH, 336D2 L, 324D, 314C, 330C, 325C, 312C, 323D2 L, 311B, 318D2 L, 336F, 329E, 311C, 325B, 320D2 L, 657G, 365B, 365C, 349D L, 345D L, 345D, 345C L, 352F, 385C L, 374F L, 340D2 L, 349E L, 313F LGC, 325D L, 320D GC, 330 L, 326D L, 312E, 320D2 GC, 328D LCR, 329E L, 320E, 320B, 324D L, 312D2 GC, 312D2, 312F, 330D, 637G, M325D L MH, 345C, 385C FS, 313D2, 313F L, 314D CR, 335F LCR, 315C, 320D RR, 336D2 GC, 318D L, 325D, 313D2 GC, 318D2, 390D, 621G, 385C, 349E L VG, 345B, 365B L, 336D2 XE, 320C L, 385B, 340D L, 349E, 365C L, 390F, 313D2-GC, 315F LCR, 323D, 336E H, 330B, 350 L, 329D, 320D, 336D2, 305, 326D2, 320D2, 326D2 L, 303, 329D2 L, 349D2, 349D2 L, 390D L, 336D, 329D2, 308D, 390F L, 374D L, 374F, 349D
- Wheel Loaders: 950H, 966H, 980H, 972H, 990H
- Skid Steer Loaders: 313D2 LGP
