Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 10.9 |
|---|---|
| Thread Size | M10 mm (0 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 60 mm (2.362 in) |

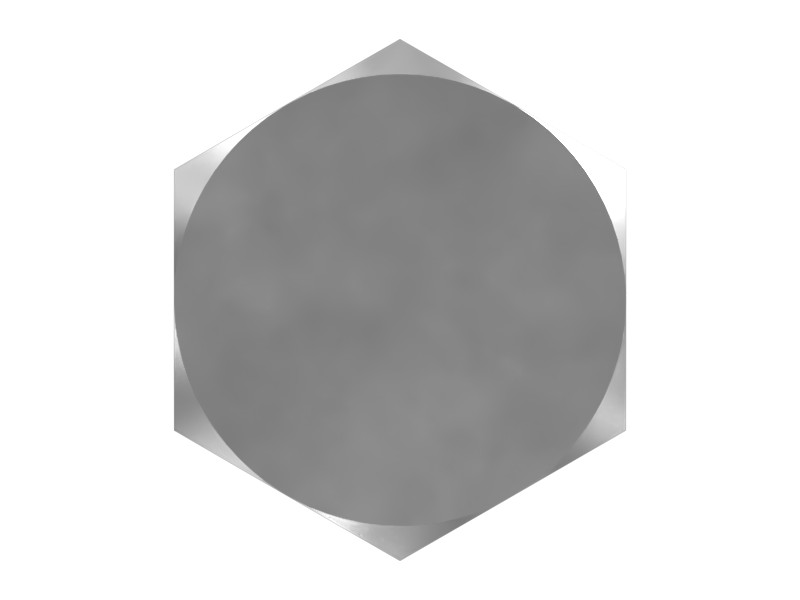

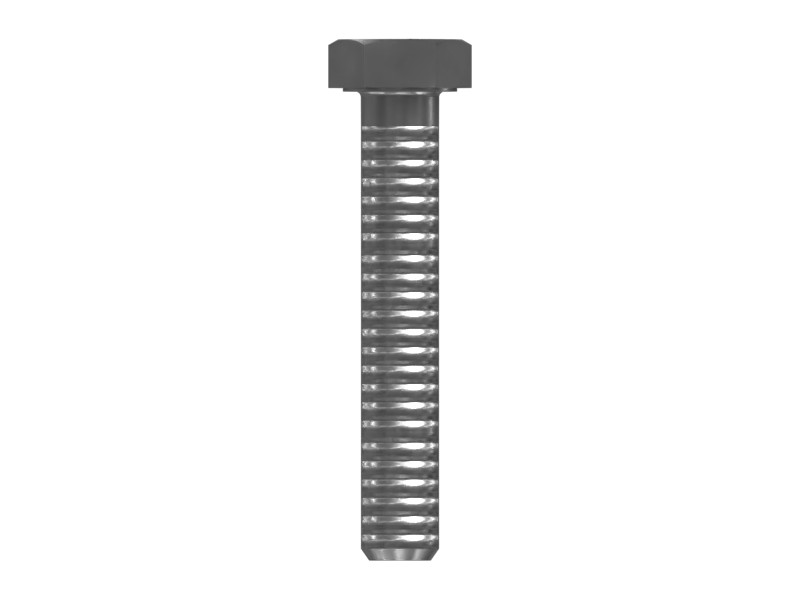

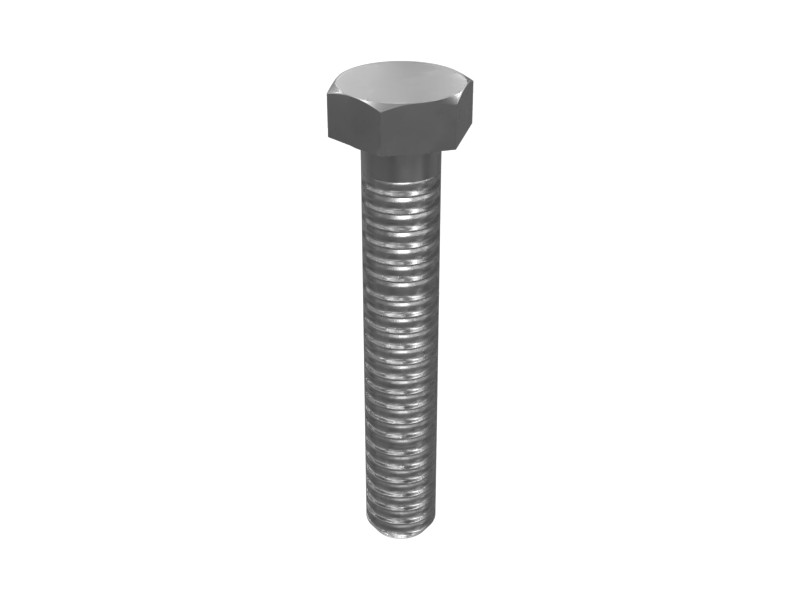

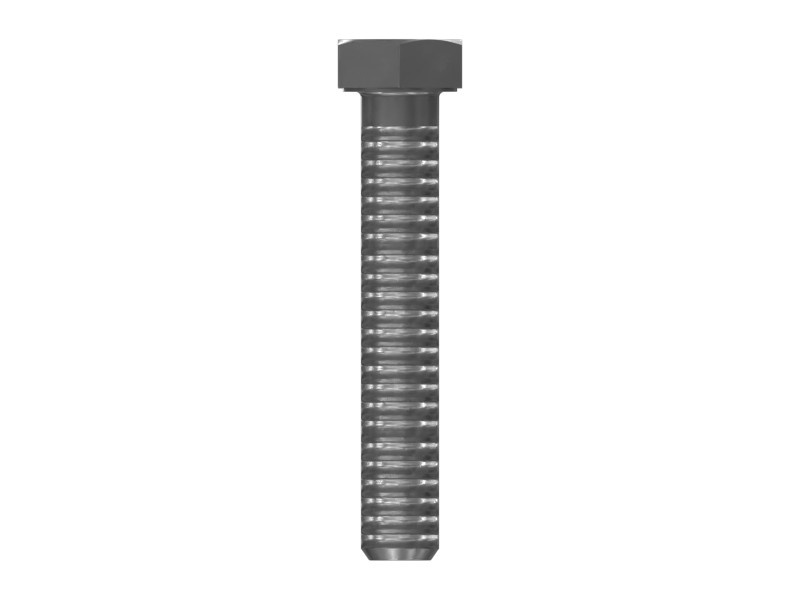

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 5 mm (0.177 in) |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: C9, C7.1
- Track Loaders: 816F, 972
- Cold Planers: TH360B
- Compactors: CS-533C, CS-583D, 815, 816, 814, C9.3B, C13B, C-9
- Engines: C13, C7, C32, C27, C15, C11, C175-16, C12, C18
- Excavators: 3126, 349F L, 637K, 345B, 336, 350, 340, 3516B, 350MHPU, 330C, 325C, 621K, 365B, 352F, 365B L, 120 GC, 325B L, 336E L, 336F, 336E LH, 336E, 330C L, 336F L XE, 336F L, 330 L, 336F LN, 325C L, 325B, 336E H, 320B, 336E LN, 621H, 345 GC
- Asphalt Pavers: AD30
- Skid Steer Loaders: 3126B, 24
- Motor Graders: 349 GC, 14, 18, 160K, 12K, 140K, 16H, 3606, 16, 12H, 120, 140 GC, 120H, 140H, 16M, 14M, 16M3
- Wheel Excavators: M313D, M315D, M320, M315
- Dozers: D5M, D6R III, D6T, D6R, D7R II, D6M, D6R II, D8T, D8N, D11T, D11R, D6R LGP, D6R XL, D6N, D7R
- Mini Excavators: 307C
- Wheel Loaders: 972H, 972G, 924GZ, 966H, 990H, 950G, 924HZ, 972L, 962G, 966L, 928G, 962L, 950L, 980H, 928HZ, R1700 II, R1700G, R1700K, 966, 950, 986H, R1600H, 966K
- Off-Highway Trucks: 793F, 725, 730, 798 AC, 725C2, 796 AC, 740, 797F, 740B, 794 AC, 777, 793, 735
