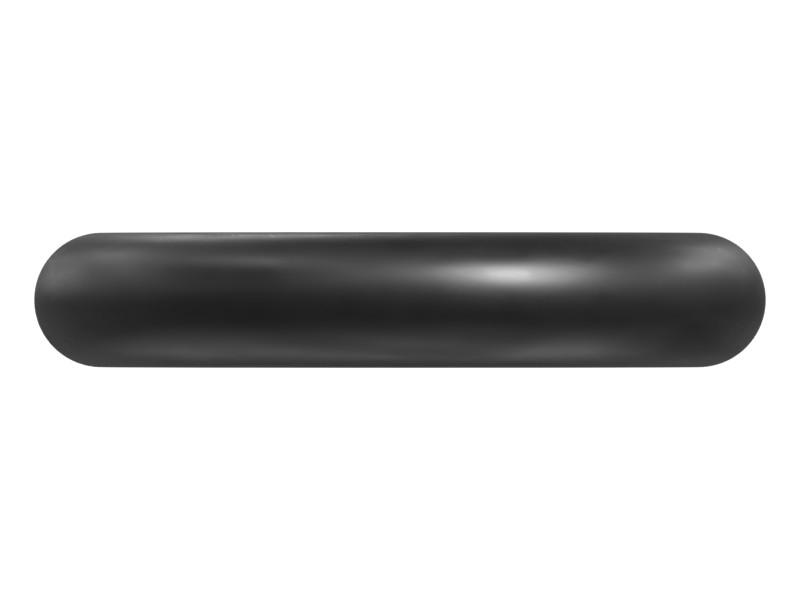

6V-5061 18.42 mm ID O-Ring
Cat® engine cylinder head O-ring forms a reliable, leak-free seal between the cylinder head and the cylinder block.
Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Specifications
| Material Hardness | 70A |
|---|---|
| Polymer | EPDM (Ethylene-propylene diene) |
| Compatible | Ethanol; Automotive Brake Fluid; Hot and Cold Water; Ketones; Ozone and Sunlight; Phosphate Ester Fluids; Silicone Oils; Certain Dilute Acids; Steam (Up to 200° C); Steam (Up to 400° F) |
| Dash Size | 0 in |
| Cross-Section Diameter | 5.33 mm (0.21 in) |
| Inside Diameter | 18.42 mm (0.725 in) |
| Material | EPDM – Ethylene Propylene Diene Modified Rubber |
Compatible Equipment
- Motor Graders: 3606
- Generator Sets: 3512B, 3516C, 3512E
- Excavators: 3516E, 3512C
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
