Description

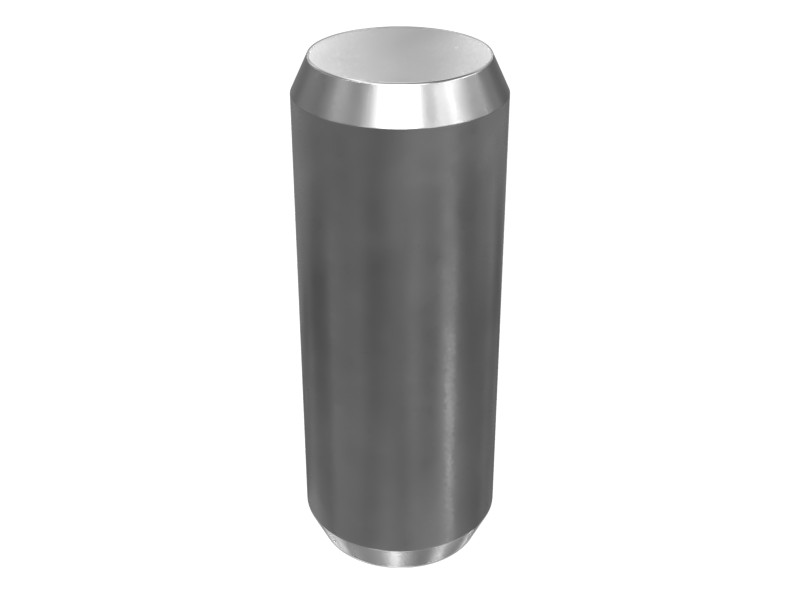

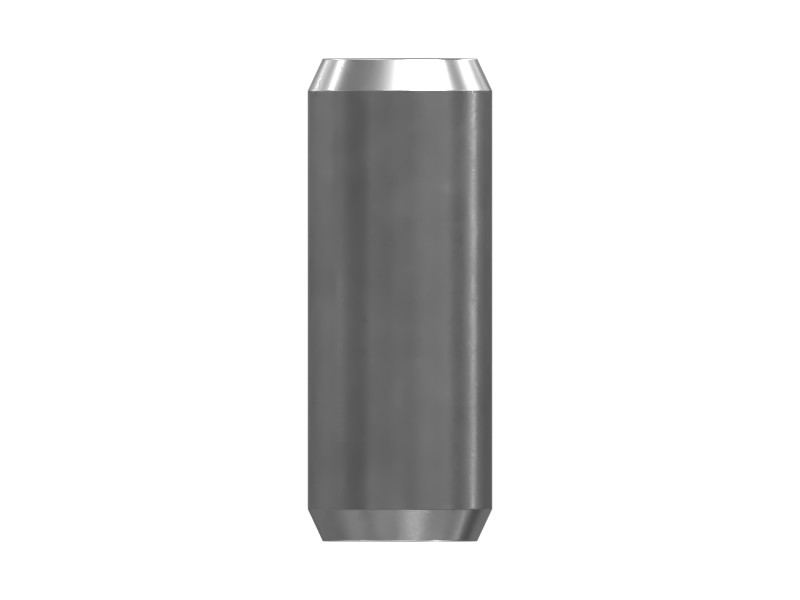

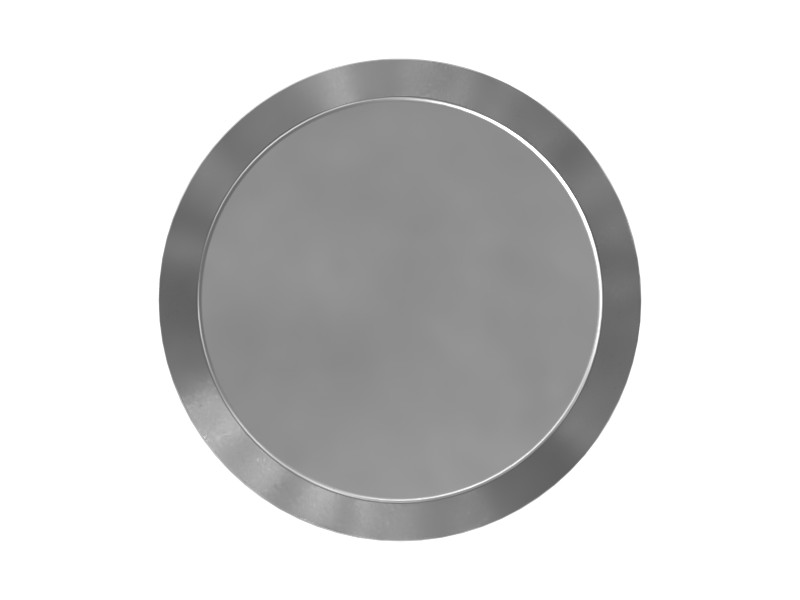

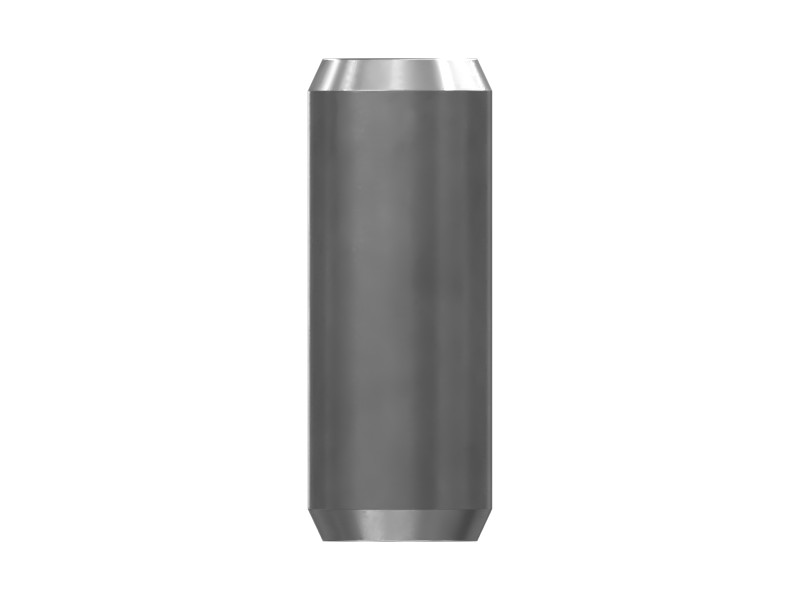

A dowel pin is a solid, headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Parts meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Material | Carbon Steel |
|---|---|
| Pin Length | 25 mm (0.984 in) |
| Pin Type | Solid |
| Pin Outside Diameter | 9.55 mm (0.376 in) |
| Remarks | Overall Length: 25, Pin Diameter: 9.55, End Type 1: Chamfer, End Type 2: Chamfer |
| Material Description | Steel – Pins and Dowels |
Compatible Equipment
- Generator Sets: 3512E, C9
- Track Loaders: 982, 972
- Compactors: C13B, C-15
- Engines: C13, C32, C15, C11, C12, C18, C175-16
- Excavators: 349D, 349D2, 349D2 L, 349F L, 3516E, 345D L, 621H, 365B, 349E L VG, 345C L, 345B, 365B L, 349, 349E L, 352, 345D, 621K, 345C, 352F, 349E, 349D L, 355, 3508B
- Motor Graders: 3606, 16, 18, 14, 16M, 16M3, 14M
- Dozers: D7R II, D8N
- Wheel Loaders: 972H, 980, RM400, 966, 972L, 966K, 966L, R1700G, R1700K, R1600H, 966H, 980L
- Off-Highway Trucks: 797F, 794 AC, 793, 735, 730, 725, 796 AC, 793F, 798 AC
Additional information
| Machine Model | 14, 14M, 16, 16M, 16M3, 18, 345B, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3508B, 3512E, 3516E, 352, 352F, 355, 3606, 365B, 365B L, 621H, 621K, 725, 730, 735, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 966, 966H, 966K, 966L, 972, 972H, 972L, 980, 980L, 982, C-15, C11, C12, C13, C13B, C15, C175-16, C18, C32, C9, D7R II, D8N, R1600H, R1700G, R1700K, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
