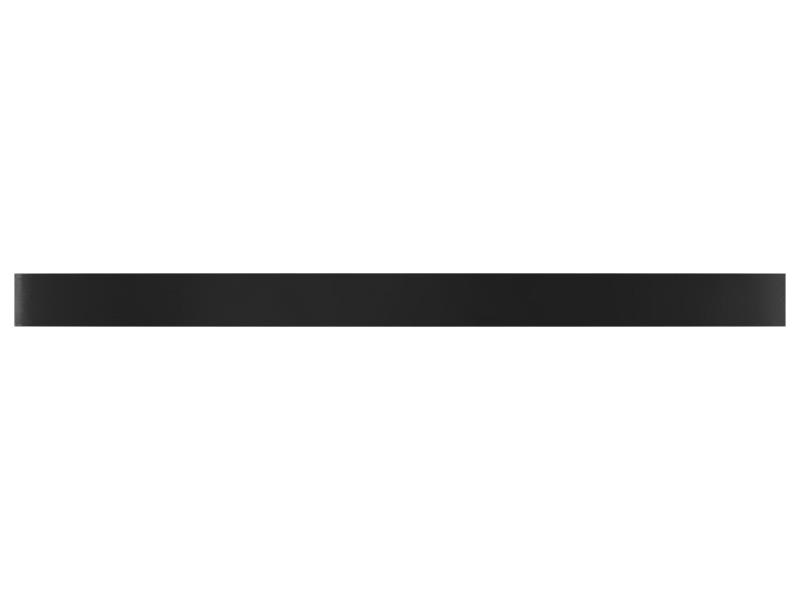

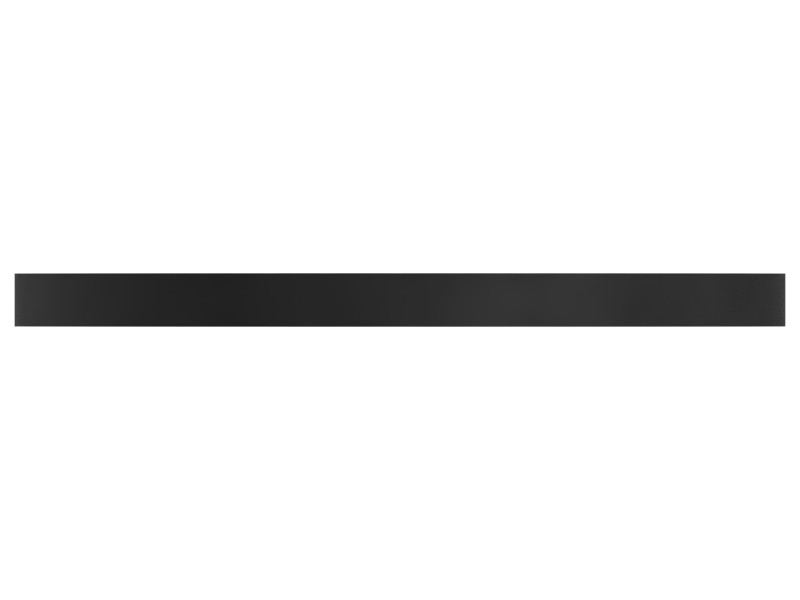

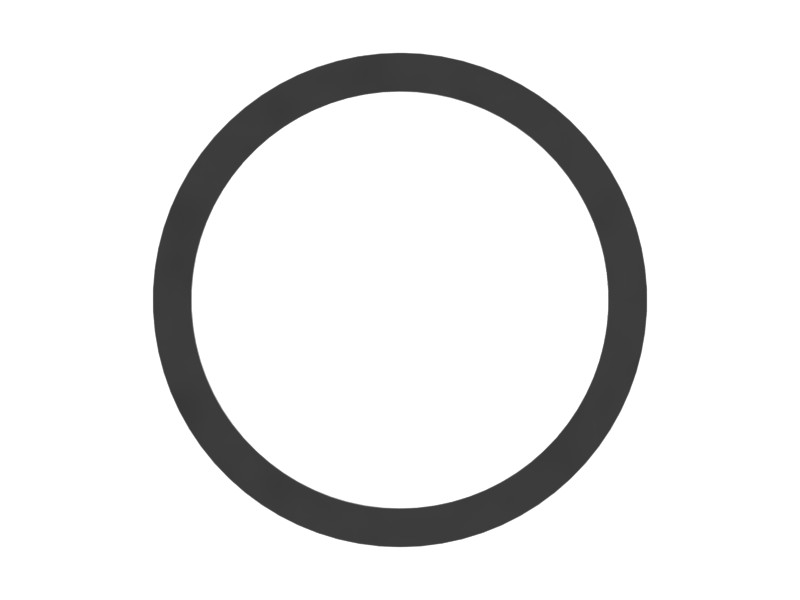

Description
Backup rings can prevent seal extrusion in high-pressure applications and help protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components, significantly improving the life and performance of sealing systems in high-pressure applications. Depending on application requirements, they can be solid or split rings.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.
Cat® sealing systems go through a robust design, testing and validation process. Protect your investment with the latest Genuine Cat® seals.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Inside Diameter | 15 mm (0.58 in) |
|---|---|
| Material Description | NBR is a general-purpose material with good abrasion and cut resistance. It is suitable for air, engine oil, diesel fuel, coolant/urea, hydraulic oil and automatic transmission fluid applications. Never use with biodiesel. |
| Dash Size | 113 in |
| Cross-Section Height | 1.4 mm (0.05 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Cross-Section Width | 1.2 mm (0.05 in) |
| Axial Thickness | 1 mm |
| Seal/O-Ring Type | Solid |
| Radial Thickness | 1 mm |
Compatible Equipment
- Motor Graders: 14, 14M, 16M, 16M3, 120, 18, 16
- Track Loaders: 834H, 826H, 826G, 826K, 824G, 994K
- Compactors: 824K, 825K, 815, 816, 814
- Dozers: D10R, D11T, D11R, D10T
- Mini Excavators: 307B
- Excavators: 637G, 657G, 330C L, 320C, 330C, 312C, 320B, 325B L, 325C, 621G, 315C, 312C L
- Wheel Loaders: 992K, 986K
- Off-Highway Trucks: 777D, 771D, 730, 773E, 725, 773F, 777E, 773D, 777, 773
- Skid Steer Loaders: 24
Additional information
| Machine Model | 120, 14, 14M, 16, 16M, 16M3, 18, 24, 307B, 312C, 312C L, 315C, 320B, 320C, 325B L, 325C, 330C, 330C L, 621G, 637G, 657G, 725, 730, 771D, 773, 773D, 773E, 773F, 777, 777D, 777E, 814, 815, 816, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 986K, 992K, 994K, D10R, D10T, D11R, D11T |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
